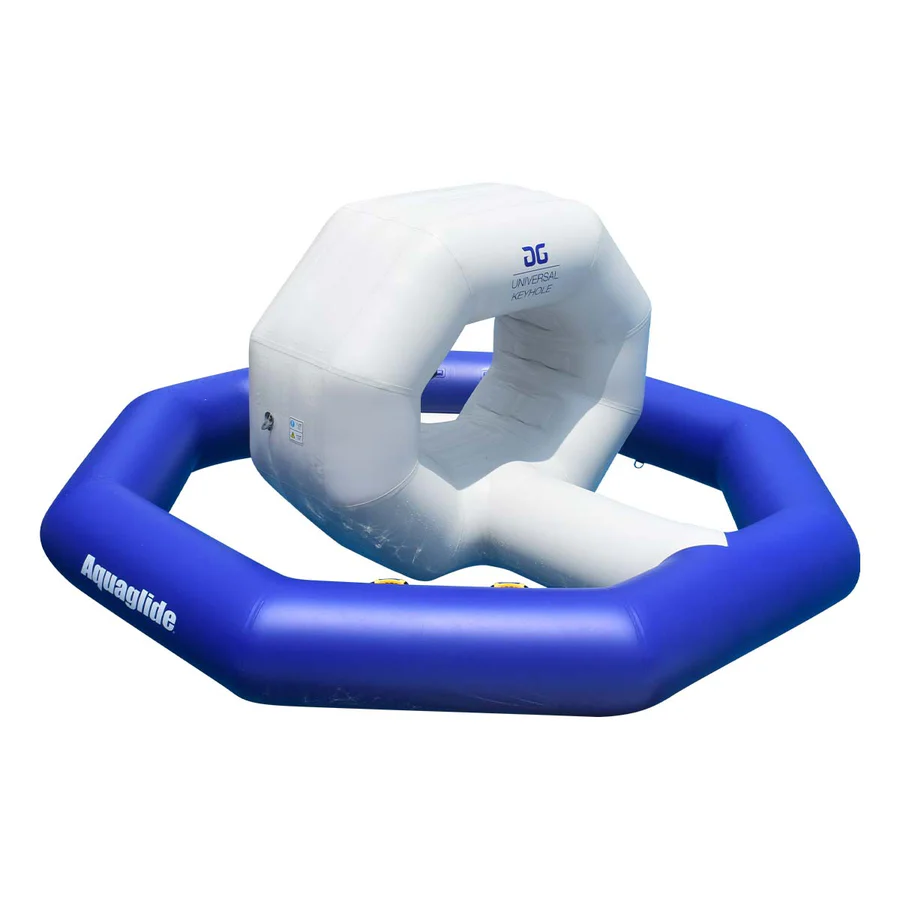

Aquaglide Universal Keyhole

A four-way connection layout gives theAquaglide Universal Keyholea central intersection and corner-hub role within Universal Series Aquapark configurations. The inflatable platform measures 10 ft by 10 ft with a 4 in thick drop-stitch floor. It supports up to four users as a static load and weighs 62 lbs when dry. Duratex 0.90 mm reinforced PVC surrounds a 4 in high-pressure rigid drop-stitch core. Vario-Lock 10 straps run along all four perimeter sides for the listed modular connections. Four 316 stainless steel D-rings provide the listed mooring points.

Care and Operating Notes

Rinse PVC surfaces, D-rings, Vario-Lock straps, seams, and inflation valves with fresh water after use. Remove salt, sand, sunscreen residue, and debris before storage or reinflation. Inspect straps, D-rings, seams, valves, and visible floor surfaces before operation. Follow manufacturer instructions for inflation, repairs, cleaning products, storage, and approved replacement parts.

Warranty and Support

The Universal Keyhole carries a 3-year limited commercial fleet warranty. Coverage follows the manufacturer’s stated warranty terms and may be subject to exclusions, conditions, and registration requirements.

Before Ordering

Confirm that the intended Aquapark layout uses Vario-Lock 10 connections and has room for the 10 ft by 10 ft platform. Plan for no more than four static-load users, maintain 5.0 to 6.0 PSI operating pressure, account for the 62 lbs dry weight, and arrange suitable mooring points.
