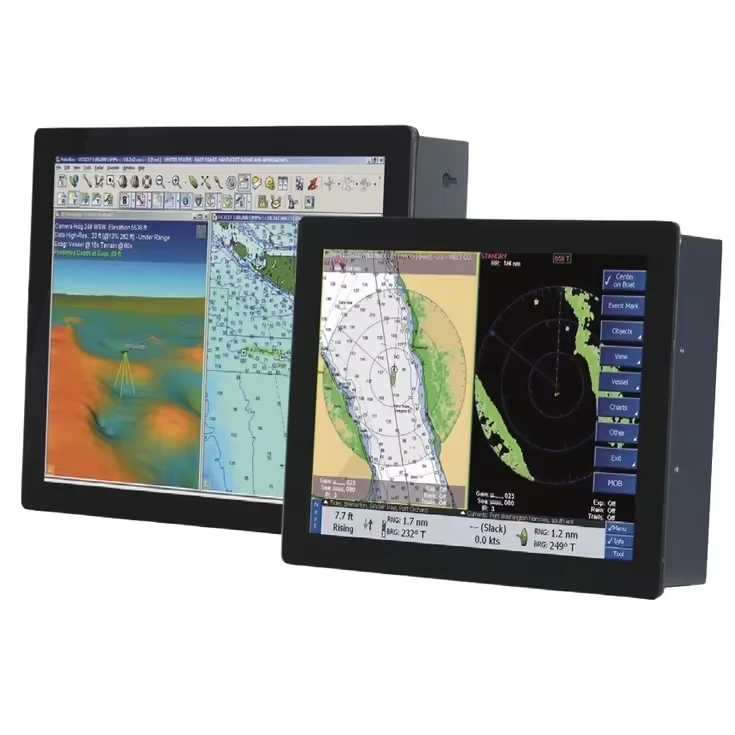

Aydin Marine KMGB-21 – 21-Inch Glass Bridge Marine Monitor
Aydin Marine KMGB-21 delivers a 21-inch Glass Bridge marine monitor for bridge-mounted vessel data and connected equipment display.
- 21-inch screen supports bridge viewing.
- Glass Bridge format suits marine consoles.
- Marine monitor presents system information.
- Connected equipment supplies displayed data.
- KMGB-21 identifies the configuration.
$8,787.00
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Display Type | Multi-Touch Glass Bridge (Crystal Clear) |
|---|---|
| Screen Size | 21.5-Inch Diagonal |
| Resolution | 1920 x 1080 Full HD |
| Brightness (Luminance) | 1000 Nits |
| Aspect Ratio | 16:9 |
| Touchscreen Technology | PCAP Multi-Touch |
| Viewing Angles | 178° H / 178° V |
| Contrast Ratio | 3000:1 |
| Video Inputs | HDMI, DVI, VGA, DisplayPort, Composite |
| Video Outputs | N/A |
| Data Connectivity | USB (Touch), RS232 Control |
| Operating Voltage | 12/24V DC (9-36V Range) |
| Power Consumption (Max) | 55 Watts |
| Backlight Dimming | 0-100% Full Dimming Range |
| Housing Material | Marine Grade Anodized Aluminum |
| Mounting Options | True Flush Mount / VESA |
| Waterproof Rating (Front) | IP65 |
| Waterproof Rating (Rear) | IP22 |
| Operating Temperature | -10°C to +55°C |
| Dimensions (WxHxD) | 535 x 330 x 65 mm |
| Weight | 8.8 kg (19.4 lbs) |
| Warranty | 2 Years |
