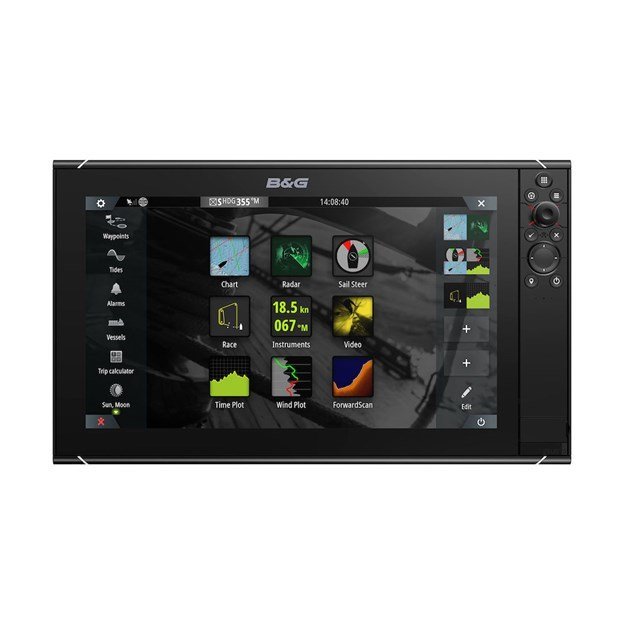

B&G Zeus 3S 16 – 16 Multi-Function Sailing Display
Navigating offshore regattas with high-speed tactical computing, this B&G Zeus 3S 16 GPS drives an iMX8 processor across a 16-inch 1920×1080 SolarMAX HD IPS touchscreen, logging 10Hz satellite fixes and SailSteer data across 10.25 lbs.
- 16-inch SolarMAX HD screen delivers 1080p resolution
- iMX8 processor accelerates complex map redraws
- Internal 10Hz GPS maintains true heading
- SailSteer interface organizes critical wind data
- Dual MicroSD slots provide expanded storage
$2,569.50
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The B&G Zeus 3S 16 is a 16-inch Full HD sailing multifunction display with iMX8 quad-core processing, hybrid control, two Ethernet ports, and dual 9-pin sonar connections ready for 1kW CHIRP. HDMI output, composite video input, SailSteer, StartLine, H5000 integration, and autopilot control suit a professional sailing helm. No transducer is included.
Who Is This For?
This unit suits offshore sailing yachts, racing boats, cruising yachts, and multi-display helms that need a large sailing MFD. Its video and network connections are useful when instruments, cameras, and autopilot data share the helm.
It is not ideal for a compact sailboat or buyers needing a complete fishfinder package. No transducer is included, and the 16-inch display requires substantial mounting space.
Warranty & Support
B&G provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.
The Zeus 3S 16 is the professional sailing display in this group, offering substantially more screen area and advanced H5000, StartLine, and autopilot integration than the Vulcan models. It also provides video I/O and dual sonar ports. The trade-off is installation size and the missing transducer, so it suits a planned racing or offshore sailing system rather than a small cruising helm.
Product Specifications
Product Specifications
| Brand | B&G (Navico) |
|---|---|
| Model | Zeus 3S 16 MFD |
| Part Number | 000-15405-001 |
| Technology Type | Multi-Function Display (MFD) Hybrid Control |
| Display Resolution | 1920 x 1080 Full HD (SolarMAX HD IPS) |
| Processor | i.MX8 Quad-core Processor (Ultra-Fast) |
| Viewing Angles | 80° Top/Bottom, 80° Left/Right |
| Sonar Support | Dual 9-pin Xonic Ports (1kW CHIRP Ready) |
| Video I/O | 1x HDMI Out, 1x Composite Video In (BNC) |
| NMEA Connectivity | 1x NMEA 2000, 1x NMEA 0183 (Input/Output) |
| Ethernet Ports | 2x 5-pin Marine Network Ports |
| Internal Storage | 16GB Internal / Dual MicroSD Slots (up to 32GB each) |
| Advanced Sailing | H5000 Integration, SailSteer, StartLine, Autopilot Control |
| Mounting Options | Flush, Panel, or Bracket Mount |
| Supply Voltage | 10 - 31.2 V DC (12/24V compatible) |
| Max Power | 40W |
| Origin | Made in Mexico |
| Warranty | 2-Year Standard |
