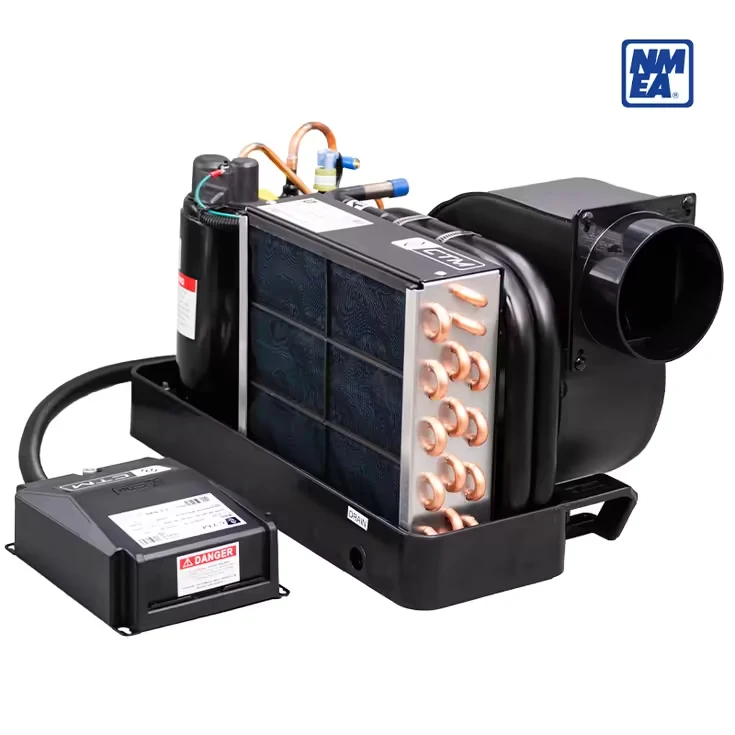

CTM CT-12N – 12,000 BTU Marine Air Conditioner 115V 50/60HZ NMEA2000

115V systems are still the norm on plenty of boats, especially smaller cruisers and older refits that were never wired for 230V shore power. The CTM CT-12N covers that gap directly — a 12,000 BTU marine air conditioner built for standard 115V circuits, carrying the same titanium coil construction and NMEA 2000 support found in CTM’s 230V models, just tuned for a different electrical setup.

Is the CT-12N Right for Your Boat?

Current draw runs higher on this unit than its 230V counterpart — 8.7A cooling versus 4.3A — which is expected, since 115V circuits need more amperage to produce the same output. Before installing, it’s worth confirming your panel and breaker can handle the 16–25A fuse range this unit calls for. It’s a documented replacement for the Dometic DTG12, DTU12, Cruisair STQ12/STX12, and equivalent Marine Air, Flagship, and Webasto 115V units.

If 230V power is already available on your boat, the CT-12HN draws less current for the same cooling capacity and is generally the more efficient electrical match — the CT-12N exists specifically for boats without that option.

What to Know Before Installing

• The CTM PM500L pump (500 GPH, 115V) is the matched water pump for this model
• Confirm your electrical panel supports the 16–25A fuse range before committing to installation
• Return air grille clearance should meet the 130 sq in minimum for unrestricted airflow
• Soft start compatibility is worth using on boats running smaller generators, since it noticeably reduces the startup power spike
