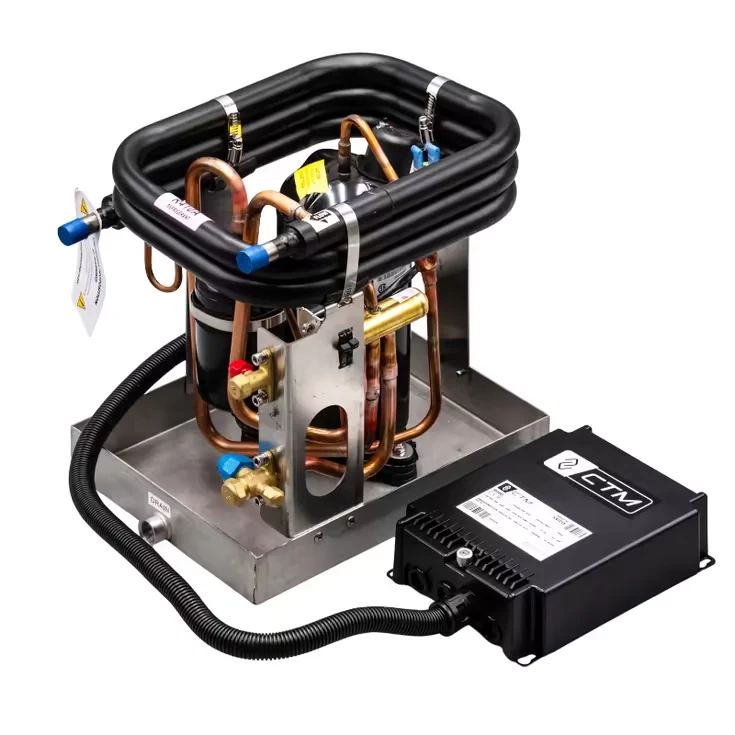

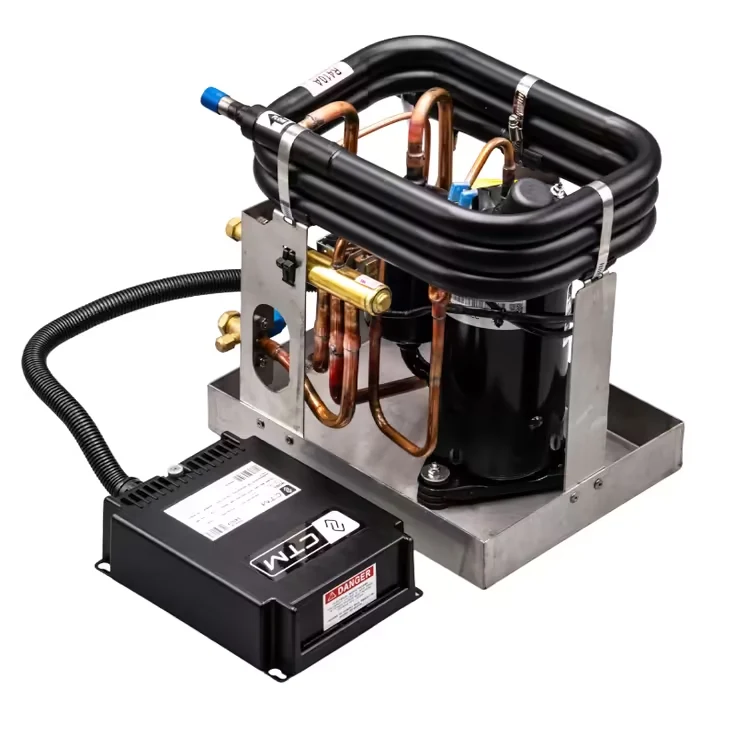

CTM CX-16HN – 16,000 BTU Condenser – Marine Split A/C Unit – 230V – 50/60HZ – R410A – NMEA 2000

For boats standardized on 230V power, the CTM CX-16HN condenser delivers 16,000 BTU of split-system cooling and heating, purpose-built as a drop-in replacement for the Dometic DEU16 and DEG16 units it was designed to match dimensionally and electrically.

Why Choose the CTM CX-16HN

If you’re replacing a Dometic DEU16 or DEG16, this unit is built to match those units’ dimensions and waterline connections closely enough that installation shouldn’t require significant modification — though double-checking your specific installation space against the CX-16HN’s specs before ordering is still worth the few minutes it takes.

Being a condenser-only unit, this pairs with a separately purchased evaporator in the cabin space; the CX and EV units share the same R410A refrigerant, so no evaporator swap is needed if you’re only replacing a failed condenser on an existing CTM split system.

What to Know Before Installing

• EPA certification must be provided before shipping
• Requires a separately purchased evaporator — this listing is the condenser only
• If replacing a Cruisair RX unit, the evaporator will also need replacing since RX systems use R22/R417A refrigerant, not R410A
• Waterline connections use a standard 5/8″ fitting
