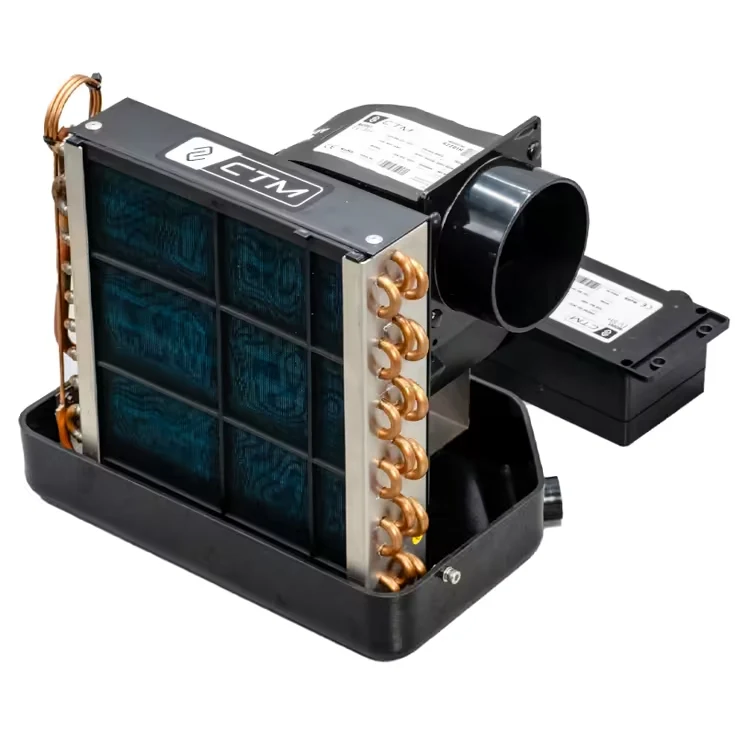

CTM EV-8H – 8,000 BTU Evaporator – Marine Split A/C Unit – 230V – 50/60HZ
CTM EV-8H supports 8,000 BTU marine split A/C evaporation through 230V 50/60HZ power for compact onboard spaces.
- 8,000 BTU output fits small cabins.
- 230V supply guides installation planning.
- 50/60HZ operation covers listed frequencies.
- Evaporator handles cabin heat exchange.
- Compatible condenser remains required.
$502.35
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The CTM EV-8H pairs with an 8,000 BTU condenser on 230V systems, giving smaller cabins a compact air handler without oversizing the installation. It’s a direct drop-in replacement for the Dometic TVE evaporator and shares CTM’s standard construction across the split-system evaporator lineup.
Why Choose the CTM EV-8H
This is one of the lightest and most compact evaporators in CTM’s lineup, backed by the standard 2-year warranty against material and workmanship defects. Current draw is minimal at just 0.4A, since the blower motor is the only load here rather than a compressor.
What to Know Before Installing
- Requires a matching condenser purchased separately — this listing is the evaporator only
- 5″ blower duct connects to your cabin’s ductwork
- If replacing a Cruisair TV8 unit, this evaporator will need pairing with an R410A-compatible condenser since TV8 systems use R22/R417A
- The reusable air filter should be cleaned periodically as part of routine maintenance
Product Specifications
Product Specifications
| Brand | CTM Marine |
|---|---|
| Exact Model Code / SKU | EV-8H |
| Country of Origin | USA |
| System Architecture | Split System Evaporator (Air Handler) |
| Cooling Capacity - BTU/h | 8,000 BTU/h |
| Cooling Capacity - kW/Watts | 2.34 kW |
| Heating Capacity - BTU/h | 8,000 BTU/h (When paired with reverse-cycle condenser) |
| Reverse Cycle Heating Function | Yes (Dependent on Condenser) |
| Electrical Voltage | 230V |
| Alternating Current Frequency | 50/60 Hz |
| Electrical Phase | Single Phase |
| Full Load Amps - FLA Cooling | 0.22 A |
| Full Load Amps - FLA Heating | 0.22 A |
| Max Circuit Breaker Size | 5 A (Or bundled with Condenser protection) |
| Refrigerant Type | R-410A |
| Evaporator Airflow Capacity | 240 CFM |
| Duct Discharge Connection Diameter | 4 inches (102 mm) |
| Condensate Drain Connection Size | 1/2 inch (12.7 mm) |
| Physical Dimensions - Unit | 11.5 x 10.5 x 10.5 inches (292 x 267 x 267 mm) |
| Net Weight | 13 lbs (5.9 kg) |
| Chassis & Condenser Material | ABS Composite Pan & Aluminum/Copper Fin Coil |
| Standard Factory Warranty | 2 Years |
| Application & Sizing Guidance | Medium stateroom 230V air handler providing quiet environmental control for staterooms up to 300 cu.ft when integrated into 8,000 BTU split cooling grids. |
