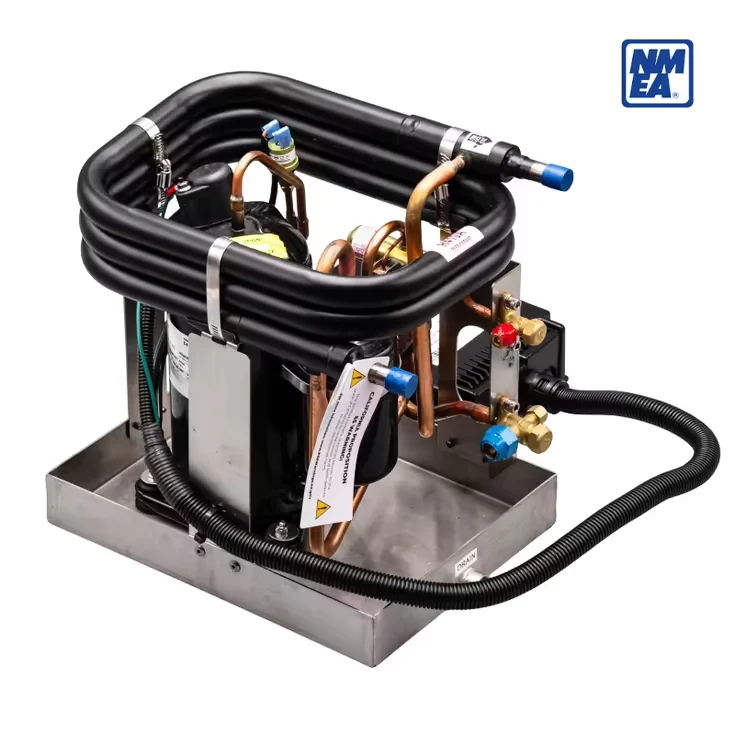

CTM Marine CX-16N 16000 BTU NMEA 2000 Condenser 115V

Standard 115V shore power gets the same 16,000 BTU capacity with the CTM CX-16N condenser — a direct drop-in replacement for the Dometic DEU16, ED16U, and EQ16U 115V units, sharing the same titanium coil construction and NMEA 2000 platform as CTM’s 230V models.

Why Choose the CTM CX-16N

Current draw runs notably higher than the 230V CX-16HN — 10.5A versus 5.1A cooling — which is expected given the voltage difference, but confirm your boat’s 115V circuit and breaker capacity can handle it, especially the 13.5A heating draw.

If you’re replacing a Dometic ED16U or EQ16U rather than a DEU16, the physical and electrical specs still line up closely enough that this should work as a direct swap, though it’s worth double-checking your specific installation space before ordering.

What to Know Before Installing

• EPA certification must be provided before shipping
• Requires a separately purchased evaporator — this listing is the condenser only
• Confirm your electrical panel supports the 13.5A heating draw at 115V
• If replacing a Cruisair RX unit, the evaporator will also need replacing due to the R22/R417A vs. R410A refrigerant difference
