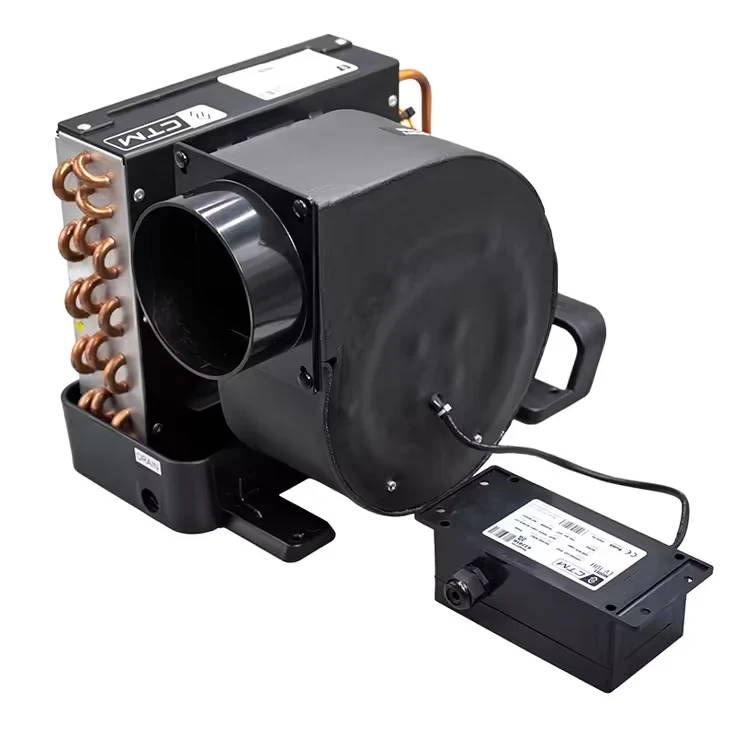

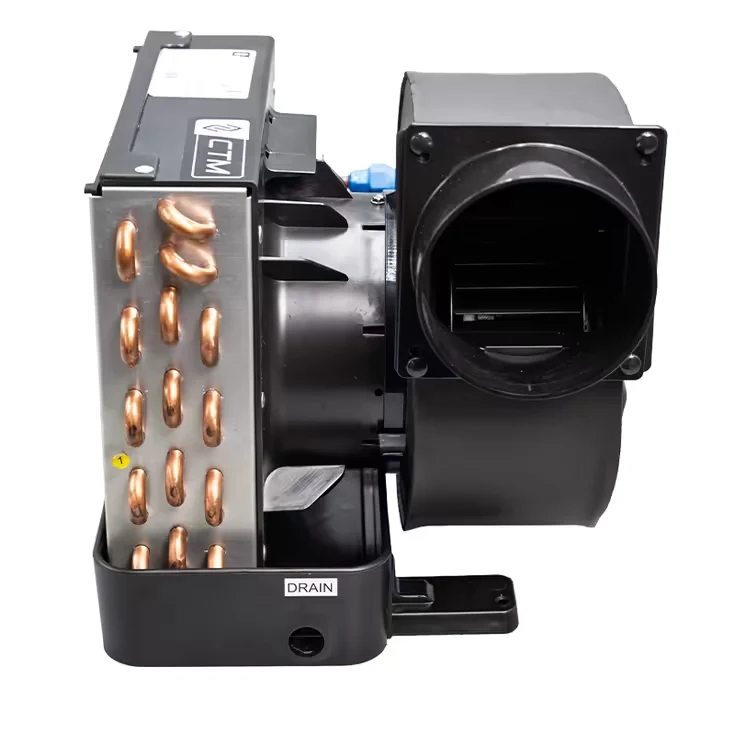

CTM Marine EV-10H 10000 BTU Split A/C Evaporator 230V
The CTM Marine EV-10H provides 10,000 BTU split A/C evaporator capacity with 230V power for compact marine climate systems.
- 10,000 BTU output suits compact spaces.
- 230V input matches listed installations.
- Evaporator manages indoor heat exchange.
- Split system requires compatible equipment.
- EV-10H identifies the configuration.
$573.30
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The CTM EV-10H pairs with a 10,000 BTU condenser on 230V systems, giving boats with smaller cabins a compact air handler that doesn’t demand much installation space. It’s built on the same stainless steel platform as CTM’s larger evaporators, just scaled down for lower-capacity applications.
Why Choose the CTM EV-10H
This evaporator draws a fraction of the current the matching CX-10HN condenser pulls, and it carries CTM’s standard 2-year warranty against material and workmanship defects. If you’re replacing a Dometic or Cruisair evaporator on an existing split system, dimensions match closely enough that major modification generally isn’t needed.
What to Know Before Installing
- Requires a matching condenser purchased separately — this listing is the evaporator only
- 5″ blower duct connects to your cabin’s ductwork
- If replacing a Cruisair TV10 unit, this evaporator will need pairing with an R410A-compatible condenser since TV10 systems use R22/R417A
- The reusable air filter should be cleaned periodically as part of routine maintenance
Product Specifications
Product Specifications
| Brand | CTM Marine |
|---|---|
| Full Model SKU/Code | EV-10H-230V (EV Series Air Handler) |
| Country of Origin | USA |
| AC System Type | Split-System Marine Air Handler / Evaporator Unit (Requires Remote Condenser) |
| Cooling Capacity | 10,000 BTU/h (2.93 kW) |
| Heating Capacity | 10,000 BTU/h (When paired with dynamic heating-capable condenser unit) |
| Operating Voltage / Frequency | 220-240 Volts AC / 50 or 60 Hz Single Phase Platform |
| Full Load Amps / Running Current | Blower Fan Current Only: 0.55 Amps at 230V Input Cycle |
| Recommended Circuit Breaker Rating | Fused directly via master condensing unit loop terminal block |
| Duct Display / Air Discharge Size | 4.0" (102mm) High-Velocity Multi-Directional Blower Collar |
| Control Interface Connectivity | RJ12 Data Cable Terminal (Tethers directly to master CX series network controller card) |
| Dimensions (L x W x H) | 33.5 cm x 26.5 cm x 26.5 cm / 13.2" x 10.4" x 10.4" |
| Dry Weight | 6.1 kg / 13.5 lbs (Built on rot-proof ABS condensation base pan with high-performance copper/aluminum coil) |
| Application | In-room air delivery for mid-size staterooms, guest berths, and small crew spaces, mounted directly inside cabinetry quarters to eliminate engine room noise transfer (24-36 ft boat lengths) |
