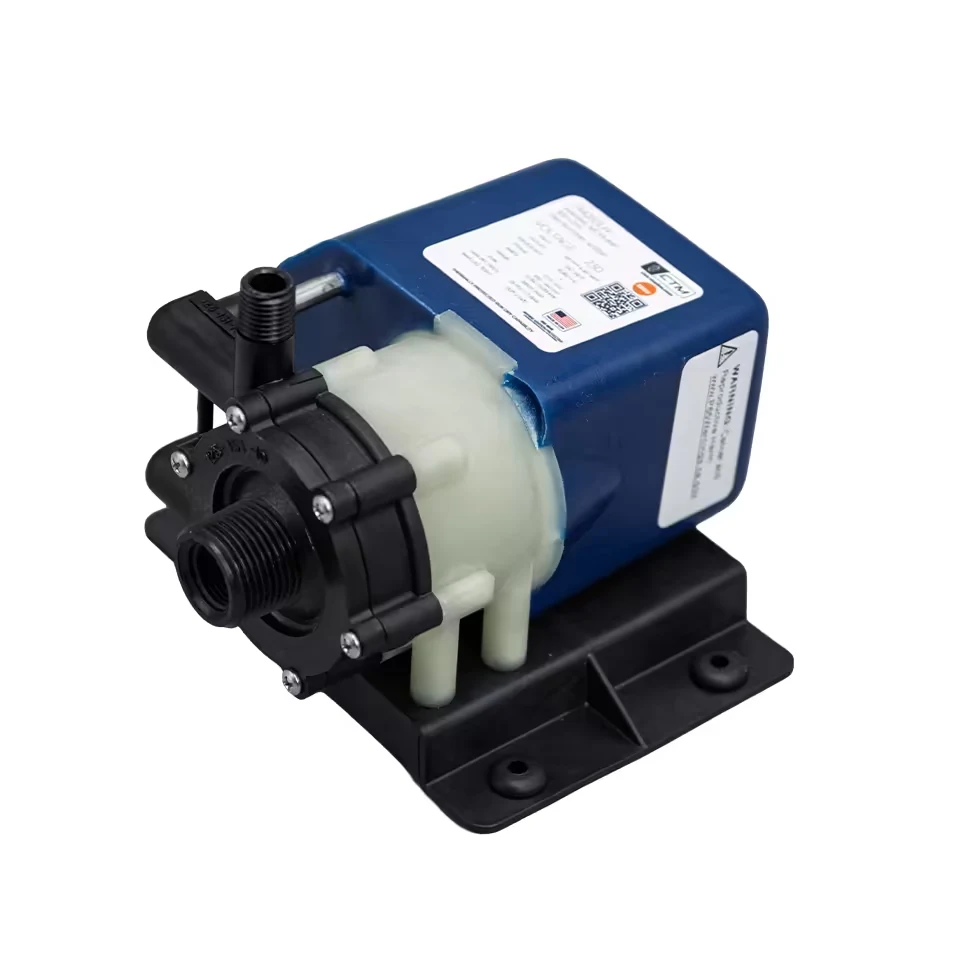

CTM – PM250LH – 300 GPH – 230V – Submersible A/C Pump

Circulating raw seawater through compact cabins, the CTM PM250LH 230V pushes 300 GPH at 6.5 PSI, utilizing an ISO 8846 ignition-protected magnetic drive for sub-6,000 BTU systems.

300 GPH flow feeds compact AC.
230V single-phase motor handles export grids.
ISO 8846 certification ensures bilge safety.
Epoxy encapsulation enables full water submersion.
15-foot head clears hull through-hulls.

$149.60

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: CTM SKU: CTM-PM250LH-230V-V2

Free standard shipping to eligible destinationsSecure checkout

Circulate seawater for compact marine air-conditioning systems under 6,000 BTU with the CTM Marine PM250LH-230 Submersible A/C Pump. This fully submersible, seal-less magnetic-drive centrifugal pump is specified as a direct replacement for compatible 230V March PML250 and LC-2M-MD units. It provides a maximum rated flow of 300 GPH (5.0 GPM / 18.9 LPM), maximum head of 15 ft (4.6 m), and maximum pressure of 6.5 PSI.

The CTM Marine PM250LH-230 operates on 230V AC, 50/60 Hz single-phase power and uses a heavy-duty epoxy-encapsulated submersible motor. It has a 3/4-inch FPT inlet, 1/2-inch MPT outlet, and listed ISO 8846 and USCG marine ignition protection.

Before Ordering

Verify CTM Marine model PM250LH-230, fully submersible seal-less magnetic-drive configuration, stated compatibility with 230V March PML250 and LC-2M-MD units, 300 GPH maximum flow, 15 ft maximum head, 6.5 PSI maximum pressure, 230V AC 50/60 Hz single-phase power, epoxy-encapsulated motor, 3/4-inch FPT inlet, 1/2-inch MPT outlet, listed ISO 8846 and USCG ignition protection, 160 x 110 x 125 mm dimensions, 4.8 lb dry weight, and 1-year limited manufacturer warranty before purchase.

Product Specifications
