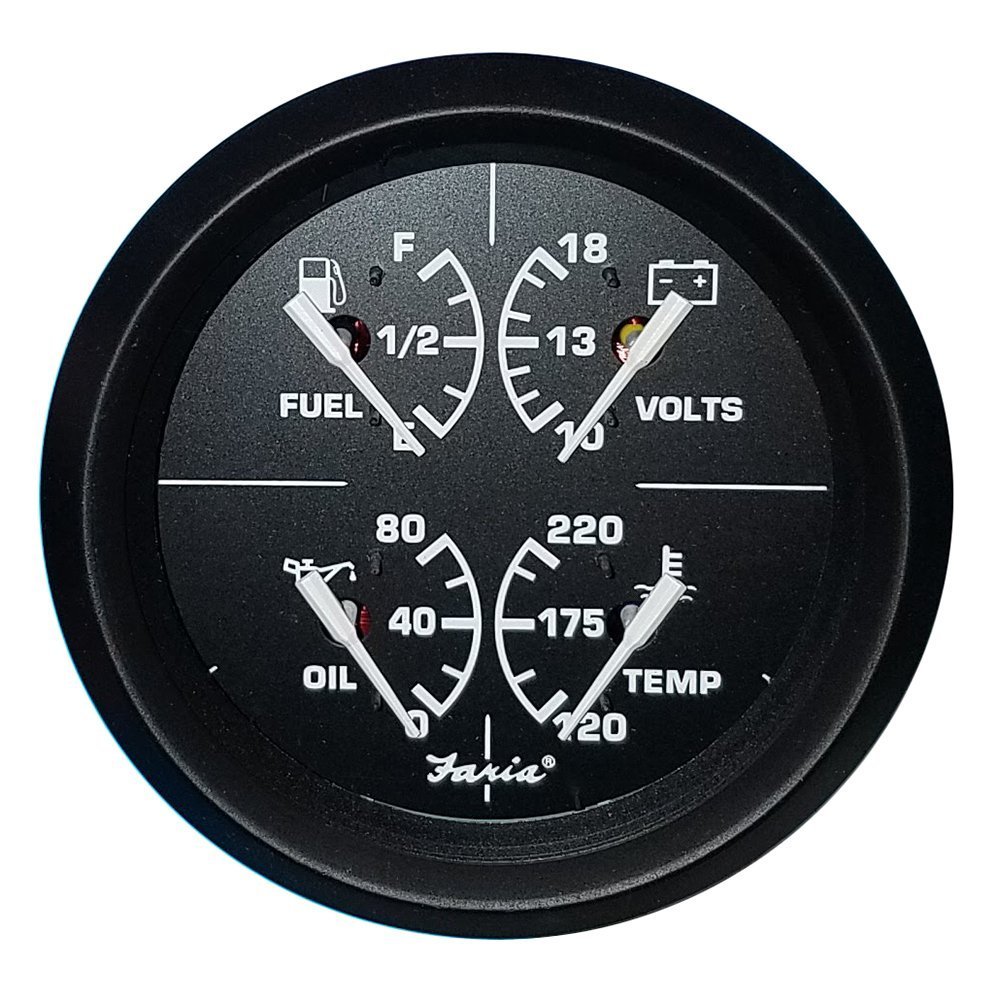

Faria Euro 4 Multi-Function Boat Gauge Dashboard Unit
Faria Euro 4 Multi-Function Boat Gauge monitors fuel, coolant temperature, oil pressure, and battery voltage through analog sender inputs.
- 4-1/8" format supports dashboard installation.
- Fuel input uses 240-33 Ohm.
- Oil input uses 240-33 Ohm.
- Temperature input uses 450-46 Ohm.
- 12 Volts DC powers operation.
$66.22
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Brand | Faria Beede |
|---|---|
| Full Model SKU/Code | GF0008 (Euro Black Style 4-in-1 Combo Gauge) |
| Country of Origin | USA |
| Gauge Type | 4-in-1 Analog Cluster Gauge Configuration |
| Monitored Parameters | Fuel Level, Engine Coolant Temperature, Engine Oil Pressure, Battery Voltage |
| Data Bus / Protocol Compatibility | Standard Analog Resistive Inputs (US Standard Senders Matching: 240-33 Ohm Fuel, 240-33 Ohm Oil, 450-46 Ohm Temp) |
| Engine Brand Compatibility | Universal Compatibility with traditional analog gas/diesel inboard, outboard, or sterndrive setups |
| Display Technology & Backlighting | Quad Independent Analog Sweeping Pointers with Peripheral Perimeter Red LED Backlighting |
| Bezel/Housing Diameter | 110 mm / 4-3/8" Large Hole Form Factor Size |
| Mounting Method / Cutout Size | Dash Flush Mount with Heavy Rear Metal Clamp and Latch Mounting Bracket Nuts / 111mm Cutout |
| Operating Voltage | 12 Volts DC Only |
| Current Draw / NMEA 2000 LEN | Max Total Load Draw with Backlighting Active: 150 mA |
| Waterproof Rating | IPX6 Front Facing Splash Defensive Shield |
| Lens Technology | Flat Scratch-Resistant Contoured Polycarbonate Hard-Coated Marine Lens |
| Material & Bezel Finish | UV-Stabilized Euro Bold Matte Black Aluminum Bezel Outer Ring Panel |
| Number of Supportable Engines | Single Engine Multi-Parameter Telemetry Monitoring Station |
| Alarm & Alert System | Built-In Warning Light Trigger Indicator Panels for High Temperature and Low Oil Pressure thresholds |
| Analog Input Gateways | 4 Dedicated Mechanical Sensor Terminal Screw Inputs on Rear Panel Board |
| Dry Weight | 0.48 kg / 1.05 lbs |
| Application | Consolidated single-gauge dashboard cleanups for legacy dual-console runabouts, pontoon stations, stern-drive sport craft, and sport cabin layouts (16-26 ft boat lengths) |
