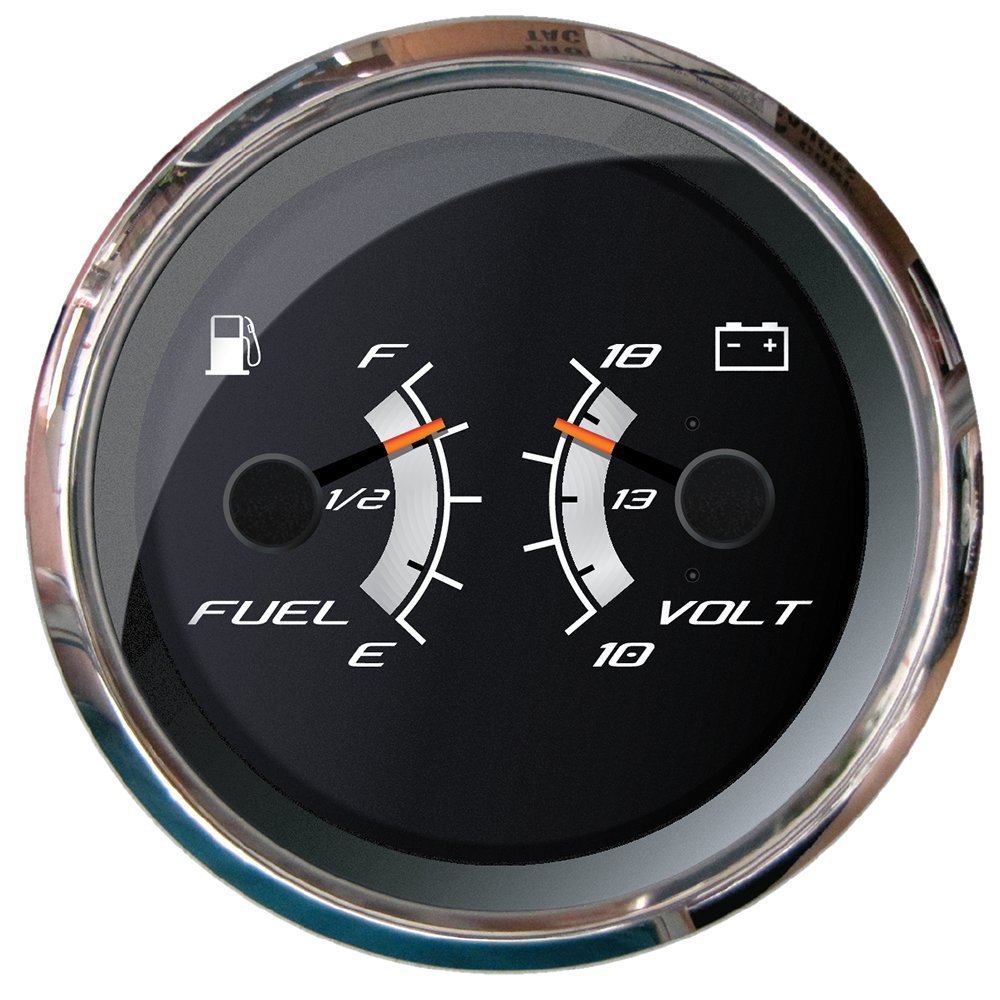

Faria Platinum 4 Multi-Function Fuel & Volt Gauge
Faria Platinum 4 Multi-Function Fuel and Volt Gauge combines analog pointers with digital hybrid monitoring for fuel level and battery voltage.
- 3-3/8" (85mm) hole fits panels.
- Fuel input supports 240-33 Ohm.
- Alternate fuel input supports 10-180 Ohm.
- 12 Volts DC powers operation.
- IPX6 front seal limits water ingress.
$77.35
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Brand | Faria Beede |
|---|---|
| Full Model SKU/Code | GF0014 (Platinum Series Style 4) |
| Country of Origin | USA |
| Gauge Type | Multi-Function Digital & Analog Hybrid Pointer Gauge |
| Monitored Parameters | Fuel Level, Battery Voltage |
| Data Bus / Protocol Compatibility | Standard Analog Resistive (Fuel Sender 240-33 Ohm or 10-180 Ohm) and Direct DC Voltage Sense Line |
| Engine Brand Compatibility | Universal Compatibility with standard analog marine senders (Yamaha, Mercury, Suzuki, Honda, MerCruiser, Volvo Penta) |
| Display Technology & Backlighting | Dual Analog Swivel Pointers with Perimeter Lit LED Dial Board (White/Blue Tone Palette) |
| Bezel/Housing Diameter | 85 mm / 3-3/8" Standard Hole Size |
| Mounting Method / Cutout Size | Dash Flush Mount with Rear Threaded Stud Latch and Spin-On Nut System / 86mm Cutout |
| Operating Voltage | 12 Volts DC |
| Current Draw / NMEA 2000 LEN | Active Instrument Drive: 80 mA (With internal pointer mechanics active) |
| Waterproof Rating | IPX6 Front Facing Environment Trim Seal |
| Lens Technology | Scratch-Resistant Domed Glass Lens Matrix with Internal Fog-Resistant Coating |
| Material & Bezel Finish | Polished Stainless Steel Bezel Trim Ring with Coated Structural Composite Rear Enclosure Shell |
| Number of Supportable Engines | Single Engine / Single Electrical Bank Core Monitoring |
| Alarm & Alert System | Low Voltage Warning Segment Indicator and Low Fuel Level Visual Alert Triggers |
| Dry Weight | 0.34 kg / 0.75 lbs |
| Application | Primary fuel monitoring dashboard upgrade for center consoles, recreational cuddy cabins, and multi-species center consoles (16-28 ft hulls) |
