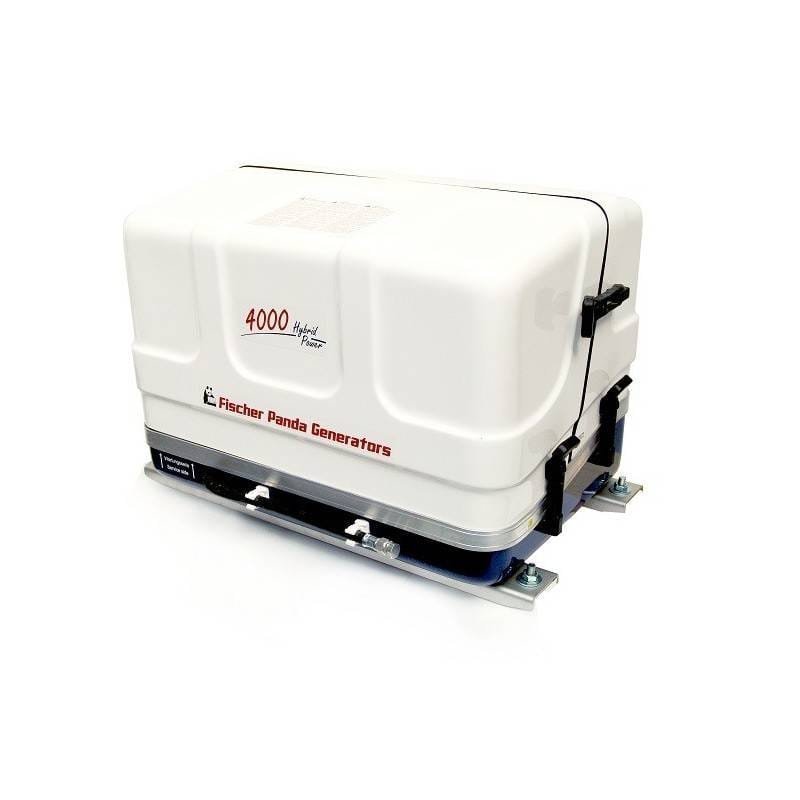

Fischer Panda AGT-DC 4000 3.2kW 24V DC Boat Generator
Replenishing heavy 24V lithium house battery banks at anchor, the Fischer Panda AGT-DC 4000 auxiliary generator supplies 110 Amps at 28.8V DC, running a 309cc single-cylinder diesel inside a 54 dBA 3D capsule at 90 kg.
- 110A charging current rapidly replenishes house batteries
- Variable speed matches dynamic battery charge states
- Water-cooled alternator winding eliminates hot bilge exhaust
- MPL 3D capsule suppresses engine clatter
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Fischer Panda AGT-DC 4000-24V PMS is a DC marine battery-charging generator for 24V battery systems. It delivers 3.2 kW continuous charging power at 28.8V DC and up to 110A nominal charging current. Unlike a conventional AC generator, it is designed to charge a battery bank directly through its integrated automatic generator control, which regulates engine speed according to the battery’s charging demand.
The hybrid-power generator uses a Fischer Panda single-cylinder FPE320 diesel engine and permanent-magnet generator technology in a water-cooled sound-insulation capsule. It is suited to vessels using a 24V battery bank with inverter-based AC power, high hotel loads, or a need for automatic battery charging. It does not supply direct 230V AC output unless a separate compatible inverter system is installed.
System Integration
This is a DC charging generator, not a conventional AC genset. It is intended to recharge a compatible 24V battery bank, which can then supply AC loads through a correctly sized inverter. Confirm battery chemistry, recommended charging voltage and current, battery-bank capacity, battery-management system compatibility, inverter capacity, DC distribution, fuse and disconnect requirements, and cable size before purchase.
The automatic control system can manage charging operation based on battery condition, but installation must still provide correct ventilation, fuel supply, raw-water cooling, exhaust, battery isolation, and safe DC fault protection. Lithium battery installations require verification with the battery and BMS manufacturer before connection.
Before Ordering
Confirm a compatible 24V battery bank, battery chemistry and BMS requirements, 28.8V charging compatibility, required charging current up to 110A, battery-bank capacity, inverter and AC-load requirements, DC cable size, fuse and isolation design, available installation space, fuel and raw-water systems, exhaust route, ventilation, starting battery, service access, and qualified DC marine-generator installation requirements before purchase.
Product Specifications
Fischer Panda AGT-DC 4000 3.2kW 24V DC Boat Generator
| Brand | Fischer Panda |
|---|---|
| Full Model SKU / Code | AGT-DC 4000 24V |
| Generator Type | Direct Current (DC) Battery Charging Marine Diesel Generator |
| Continuous Power Output | 3.2 kW |
| Voltage Output | 28.8 V Nominal DC (24V Battery Charging System) |
| Maximum Charging Current | 110 A |
| Engine Operating Speed | 2500 - 3000 RPM (Variable speed based on battery state) |
| Engine Manufacturer & Model | Fischer Panda FPE320 (Single Cylinder) |
| Number of Cylinders | 1 Cylinder |
| Displacement | 309 cc |
| Cooling System Type | Dual-Circuit Freshwater / Seawater Cooling System |
| Cooling Pump Type | Water-Cooled Alternator & Engine Winding with Raw Water Impeller Pump |
| Fuel Type | Marine Diesel |
| Fuel Consumption (Average) | 0.7 - 1.1 L/h depending on charging load |
| Sound Insulation Enclosure | MPL 3D Sound Insulation Capsule (Super Silent) |
| Noise Level | 54 dB(A) @ 7m |
| Dimensions with Sound Shield (L x W x H) | 500 x 440 x 515 mm |
| Dry Weight | 90 kg |
| Control Panel | AGT Automatic Generator Control Panel with Automatic Battery Charge Controller |
| Safety Protection Systems | Automatic Battery Full Cut-Off, Low Oil Pressure Shutdown, Over-Temperature Cut-Off |
