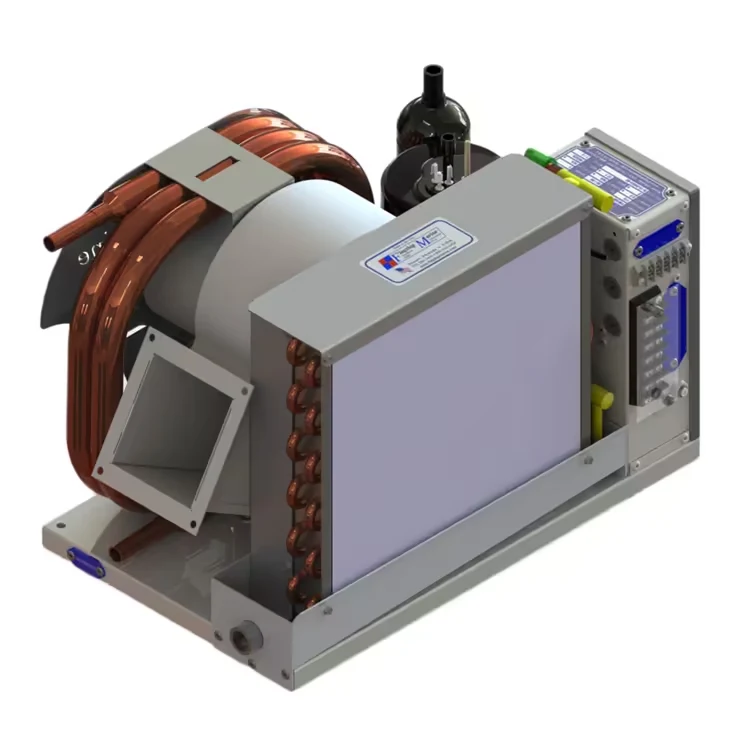

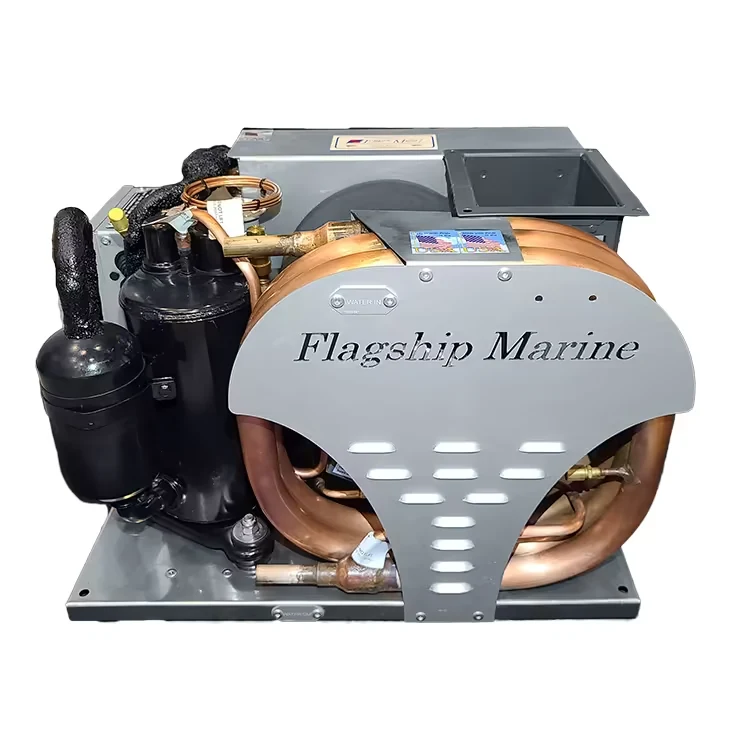

Flagship FM16R – 16,000 BTU Marine Air Conditioner 115V Cool Only
Flagship FM16R delivers 16,000 BTU cool-only marine air conditioning through 115V power for designated vessel interior spaces.
- 16,000 BTU capacity suits medium cabins.
- 115V input matches listed installations.
- Cool-only design does not heat.
- FM16R identifies the product configuration.
- Cooling output manages onboard interiors.
$2,198.30
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Hot tropical conditions can make a boat salon uncomfortable, especially when heating is not required. The Flagship FM16R provides 16,000 BTU/h, or 4.69 kW, of cool-only marine air conditioning from a 115V single-phase electrical system. Its self-contained design is intended for salons up to 800 cubic feet, with a minimum generator capacity of 4.0 kW according to the supplied application guidance.
Who This Unit Is Not Ideal For
This model is not suitable for boats requiring heating or systems designed exclusively for 230V power. Its 16,000 BTU/h capacity may also be excessive for small cabins or insufficient for larger spaces with high heat loads. Final sizing should consider cabin volume, insulation, glazing, solar exposure, and ventilation.
Warranty and Product Summary
The Flagship FM16R includes a five-year limited factory warranty. It combines high cooling capacity, 520 CFM airflow, 115V operation, and marine stainless steel and cupronickel construction for compatible cool-only salon installations.
Product Specifications
Product Specifications
| Brand | Flagship Marine |
|---|---|
| Exact Model Code / SKU | FM16R (115V Variant) |
| Country of Origin | USA |
| System Architecture | Self-Contained Marine A/C System |
| Cooling Capacity - BTU/h | 16,000 BTU/h |
| Cooling Capacity - kW/Watts | 4.69 kW |
| Heating Capacity - BTU/h | 0 (Cool Only) |
| Reverse Cycle Heating Function | No |
| Electrical Voltage | 115V |
| Alternating Current Frequency | 60 Hz |
| Electrical Phase | Single Phase |
| Full Load Amps - FLA Cooling | 12.2 A |
| Locked Rotor Amps - LRA | 56 A |
| Max Circuit Breaker Size | 30 A |
| Refrigerant Type | R-410A |
| Compressor Type | Hermetic Rotary |
| Seawater Water Flow Rate | 4.16 GPM (250 GPH) |
| Seawater Inlet Pipe Size | 5/8 inch (16 mm) |
| Seawater Outlet Pipe Size | 5/8 inch (16 mm) |
| Evaporator Airflow Capacity | 520 CFM |
| Duct Discharge Connection Diameter | 6 inches (152 mm) |
| Condensate Drain Connection Size | 1/2 inch (12.7 mm) |
| Physical Dimensions - Unit | 14.0 x 16.0 x 13.5 inches (356 x 406 x 343 mm) |
| Net Weight | 65 lbs (29.5 kg) |
| Chassis & Condenser Material | Stainless Steel Frame & Cupronickel Condenser Coil |
| Standard Factory Warranty | 5 Years (Limited) |
| Application & Sizing Guidance | Cool-only configuration built for hot tropical regions where heating loops are non-essential; ideal for salons up to 800 cu.ft, min generator 4.0 kW. |
