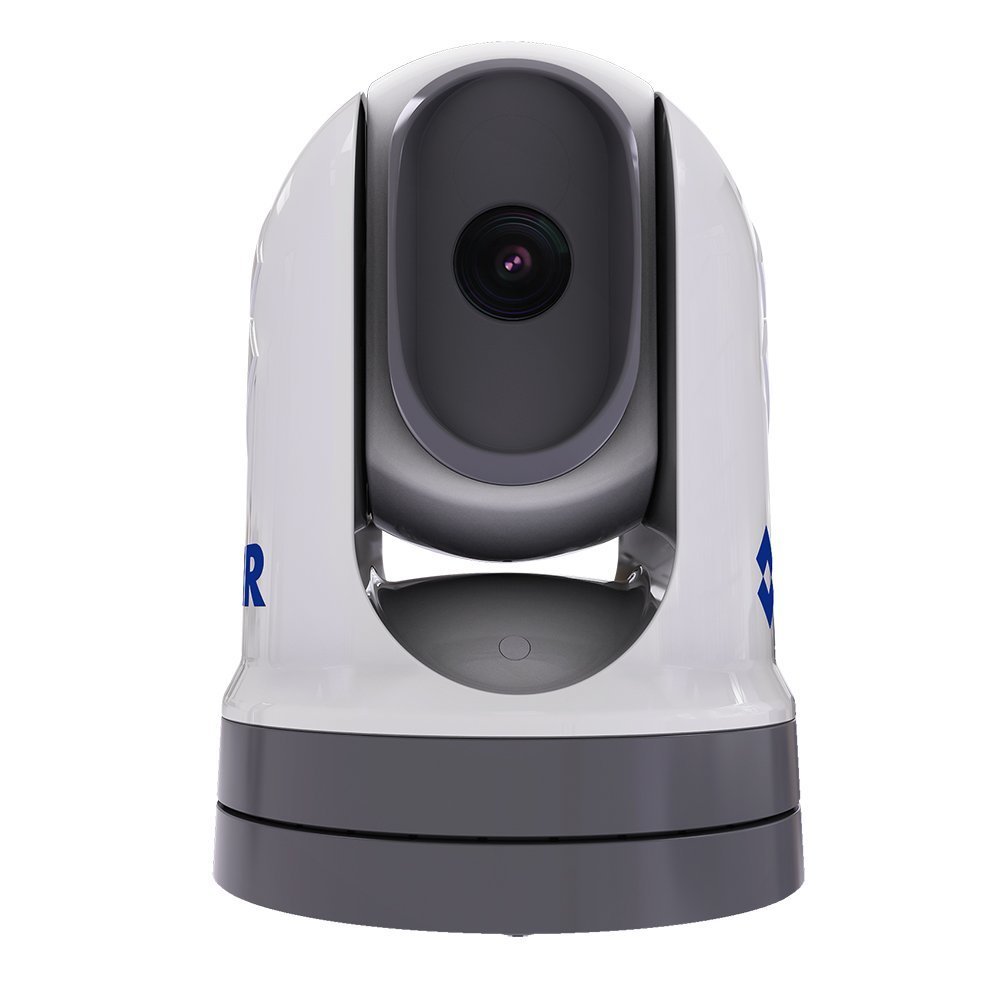

FLIR M332 Stabilized Thermal IP Camera
Spotting unlit channel markers and debris at night, this FLIR M332 marine camera stabilizes a 320×240 thermal core across two gyro axes, delivering a 24-degree field of view over IP Ethernet at 11.0 lbs.
- 320×240 thermal core detects nighttime obstacles
- Two-axis gyro stabilization smooths rough chop
- 24-degree field of view enhances awareness
- IPX6 waterproof construction protects deck installations
$5,323.09
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add stabilized thermal imaging to a compatible marine network with the FLIR M332 Thermal IP Camera. Its 320 × 256 VOx thermal core, continuous pan-and-tilt movement, and two-axis gyro stabilization help operators monitor nearby waterways and activity around the boat when visible-light contrast is limited. Want a thermal camera that can follow the horizon more effectively in rolling conditions? The M332 combines Color Thermal Vision, 4× continuous digital zoom, network video, and IPX6 marine protection in a compact pan-and-tilt housing.
Integration
The M332 requires a compatible MFD, monitor, or network video viewer. It can provide video over Ethernet and may be integrated with compatible NMEA 2000 or NMEA 0183 data for vessel-aware functions. Confirm the chartplotter’s supported video protocols, available network ports, and preferred control method before installation.
FLIR specifies the M332 with a 320 × 256 thermal core, 24° × 18° field of view, 4× continuous digital zoom, gyro stabilization, and network video output. [830][831] Thermal imagery assists situational awareness but cannot guarantee recognition or detection of people, vessels, markers, debris, or navigational hazards in every condition.
Before Ordering
Confirm display compatibility, Ethernet/ONVIF video support, NMEA data requirements, 12V/24V power capacity, mounting orientation, unobstructed camera sweep, cable lengths, and desired thermal field of view before ordering.
Product Specifications
FLIR M332 Stabilized Thermal IP Camera
| Brand | FLIR Systems |
|---|---|
| Full Model SKU / Code | E55310 |
| Device Type | Pan/Tilt 2-Axis Gyro-Stabilized Thermal Marine IP Camera |
| Display Size | N/A (External MFD / Monitor Required) |
| Display Resolution | 320 x 240 pixels (VGA Thermal Core) |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Ethernet (IP Video Stream), NMEA 2000, NMEA 0183 |
| Wireless Connectivity | None |
| Sonar Specifications | Uncooled VOx Microbolometer (320 x 240), 24° Field of View, 2x / 4x Electronic Zoom |
| Waterproof Rating | IPX6 (Deck Mount) |
| Operating Voltage Range | 12 / 24 V DC |
| Power Consumption | Nominal 40 W, Max 150 W (Heater ON) |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (ø x L) | 201 x 287 mm (7.9 x 11.3 in) |
| Dry Weight | 5.0 kg (11.0 lbs) |
| Mounting Options | Ball-Up / Ball-Down Deck or Mast Mount |
