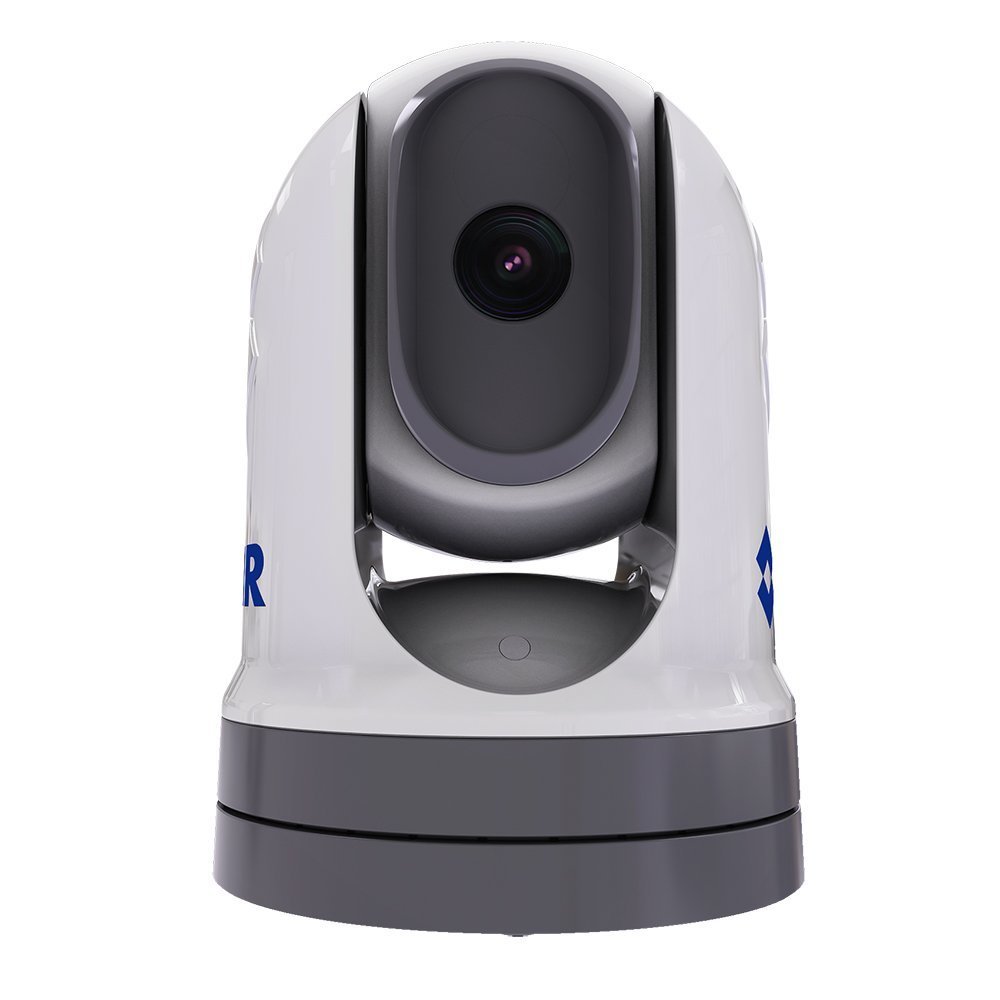

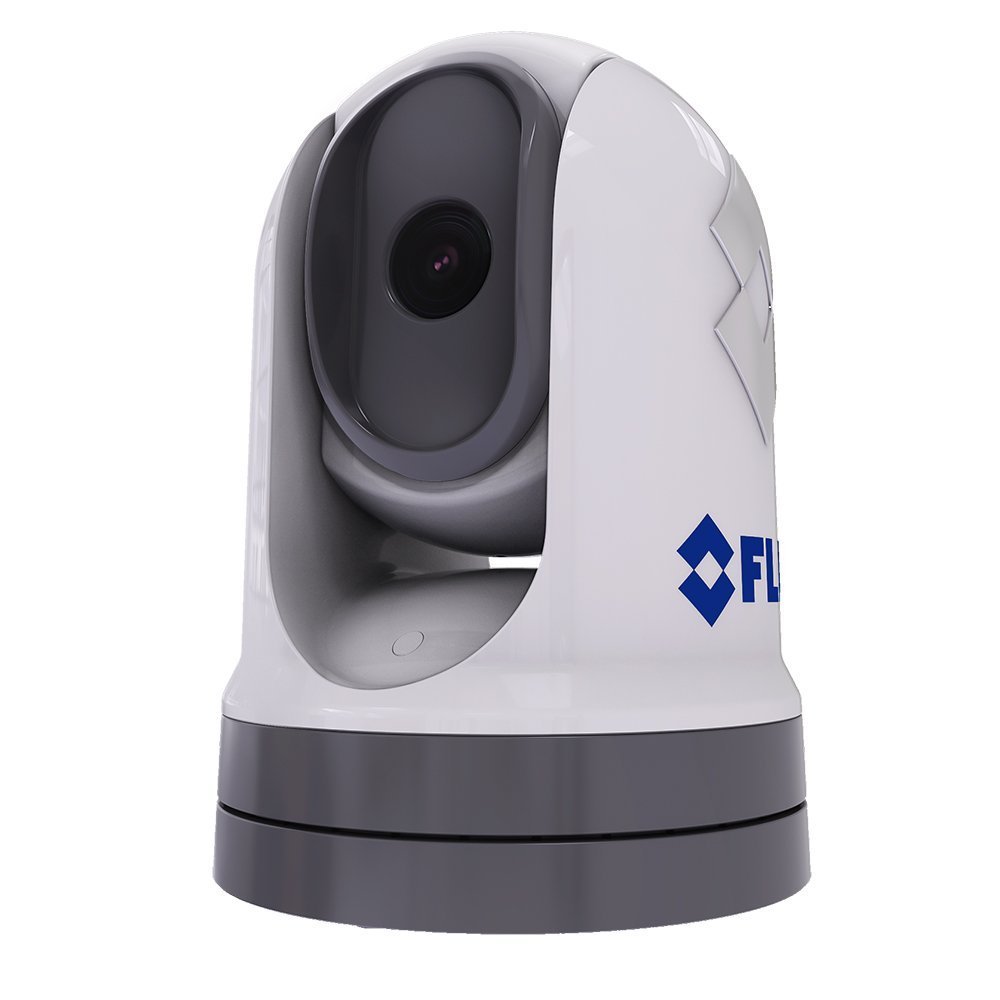

FLIR M364 Stabilized Thermal IP Camera
Spotting floating channel debris in pitch darkness, this FLIR M364 marine camera stabilizes a 640×512 VOx thermal core across two gyro axes, alerting captains via ClearCruise analytics within an IPX6 housing at 11.2 lbs.
- 640×512 VOx core resolves thermal hazards
- ClearCruise analytics alert captains to obstacles
- Two-axis gyro stabilization smooths rough chop
$8,769.42
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Improve thermal detail at the helm with the FLIR M364 Stabilized Thermal IP Camera. The 640 × 512 thermal core, 18° field of view, and two-axis gyro stabilization provide a controlled thermal image for operators monitoring waterway traffic, shorelines, docks, and nearby activity in darkness or difficult weather. Want a pan-and-tilt thermal camera with higher resolution than entry-level models? The M364 combines continuous 360° pan, 4× digital zoom, Color Thermal Vision, and network video for compatible marine displays.
Integration
The M364 needs a compatible MFD, monitor, or IP video viewer. It does not include a chartplotter, display, radar, or GNSS receiver. Ethernet carries its video, while NMEA 2000 and NMEA 0183 can provide compatible heading, positioning, and control data. Confirm the network video protocols and PTZ controls supported by the intended display before installation.
Thermal imaging can help reveal heat contrast but cannot guarantee recognition or detection of every vessel, person, buoy, animal, floating object, or hazard. Results vary with weather, humidity, spray, range, temperature contrast, sea conditions, lens condition, and user settings.
Before Ordering
Confirm compatible display support, Ethernet/ONVIF video capability, NMEA control needs, available 12V/24V power, mounting orientation, unobstructed PTZ sweep, cable lengths, and thermal field-of-view requirements before ordering.
Product Specifications
FLIR M364 Stabilized Thermal IP Camera
| Brand | FLIR Systems |
|---|---|
| Full Model SKU / Code | E55311 |
| Device Type | Pan/Tilt 2-Axis Gyro-Stabilized Thermal Marine IP Camera |
| Display Size | N/A (External MFD / Monitor Required) |
| Display Resolution | 640 x 512 pixels (VGA Thermal Core) |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A (Supports NMEA 0183 / NMEA 2000 for Position Tracking) |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Ethernet (IP Video Stream), NMEA 2000, NMEA 0183 |
| Wireless Connectivity | None |
| Sonar Specifications | Uncooled VOx Microbolometer (640 x 512), 18° Field of View, 2x / 4x Electronic Zoom, ClearCruise Thermal Analytics |
| Waterproof Rating | IPX6 (Deck Mount) |
| Operating Voltage Range | 12 / 24 V DC |
| Power Consumption | Nominal 40 W, Max 150 W (Heater ON) |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (ø x L) | 201 x 287 mm (7.9 x 11.3 in) |
| Dry Weight | 5.1 kg (11.2 lbs) |
| Mounting Options | Ball-Up / Ball-Down Deck or Mast Mount |
