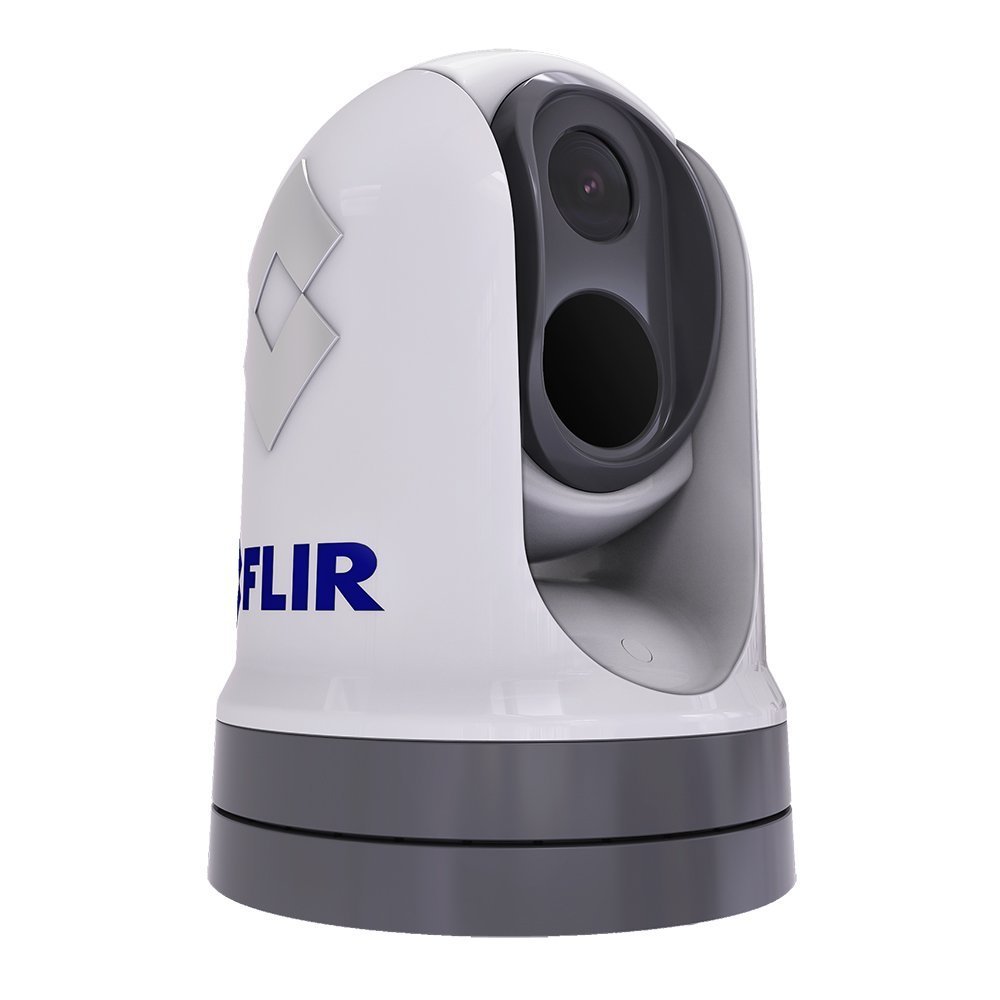

FLIR M364C LR Stabilized Thermal/Visible Long Range IP Camera
Tracking distant shipping lanes through heavy ocean swell, the FLIR M364C LR thermal camera stabilizes 640×512 thermal optics and 1080p visible zoom across two gyro axes, streaming IP video over NMEA 2000 at 18.1 lbs.
- 640×512 thermal core detects distant heat
- Two-axis gyro stabilization counters vessel roll
- 1080p visible camera provides optical zoom
- IPX6 waterproof enclosure protects deck installations
$20,703.39
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Extend thermal and visible observation farther from the boat with the FLIR M364C LR, a stabilized dual-payload IP camera designed for long-range viewing. Its 640 × 512 thermal core and HD visible camera work together to provide heat contrast plus visual detail when scanning shorelines, traffic, docks, and activity in darkness, haze, or low-light conditions. Need more reach than a standard thermal camera can provide? The M364C LR adds long-range optics, pan-and-tilt control, gyro stabilization, and network video integration for compatible marine displays.
Integration
The M364C LR requires a compatible MFD, monitor, or IP video viewer; it is not a standalone chartplotter, radar, or GPS receiver. Ethernet carries video, while NMEA 2000 or NMEA 0183 can supply compatible heading, position, and control data. Verify IP-video protocol support, network bandwidth, display compatibility, and PTZ-control requirements before installation.
Thermal imaging detects heat differences rather than confirming object identity. Its effectiveness changes with distance, humidity, atmospheric conditions, target temperature, water temperature, sea state, rain, spray, and lens cleanliness. Treat thermal and visible video as supplemental awareness tools alongside radar, charts, navigation lights, sound signals, and visual watchkeeping.
Before Ordering
Confirm compatible MFD/monitor support, Ethernet video protocols, NMEA integration needs, 12V/24V power capacity, maximum heater-load allowance, mounting orientation, full PTZ clearance, and cable-routing requirements before ordering.
Product Specifications
FLIR M364C LR Stabilized Thermal/Visible Long Range IP Camera
| Brand | FLIR Systems |
|---|---|
| Full Model SKU / Code | E55316 |
| Device Type | Pan/Tilt Gyro-Stabilized Long Range Dual Thermal & Visible Marine IP Camera |
| Display Size | N/A (External MFD / Monitor Required) |
| Display Resolution | Thermal: 640 x 512 pixels / Visible: 1920 x 1080 pixels (1080p HD) |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A (Supports NMEA 0183 / NMEA 2000 for Position Tracking) |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Ethernet (RTSP, ONVIF Profile S), NMEA 2000, NMEA 0183 |
| Wireless Connectivity | None |
| Sonar Specifications | Uncooled VOx Microbolometer (640 x 512) Long Range Optics, High-Definition Zoom Visible Camera with Low-Light Mode |
| Waterproof Rating | IPX6 (Deck Mount) |
| Operating Voltage Range | 12 / 24 V DC |
| Power Consumption | Nominal 60 W, Max 180 W (Heater ON) |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (ø x L) | 240 x 360 mm (9.4 x 14.2 in) |
| Dry Weight | 8.2 kg (18.1 lbs) |
| Mounting Options | Ball-Up / Ball-Down Deck or Mast Mount |
