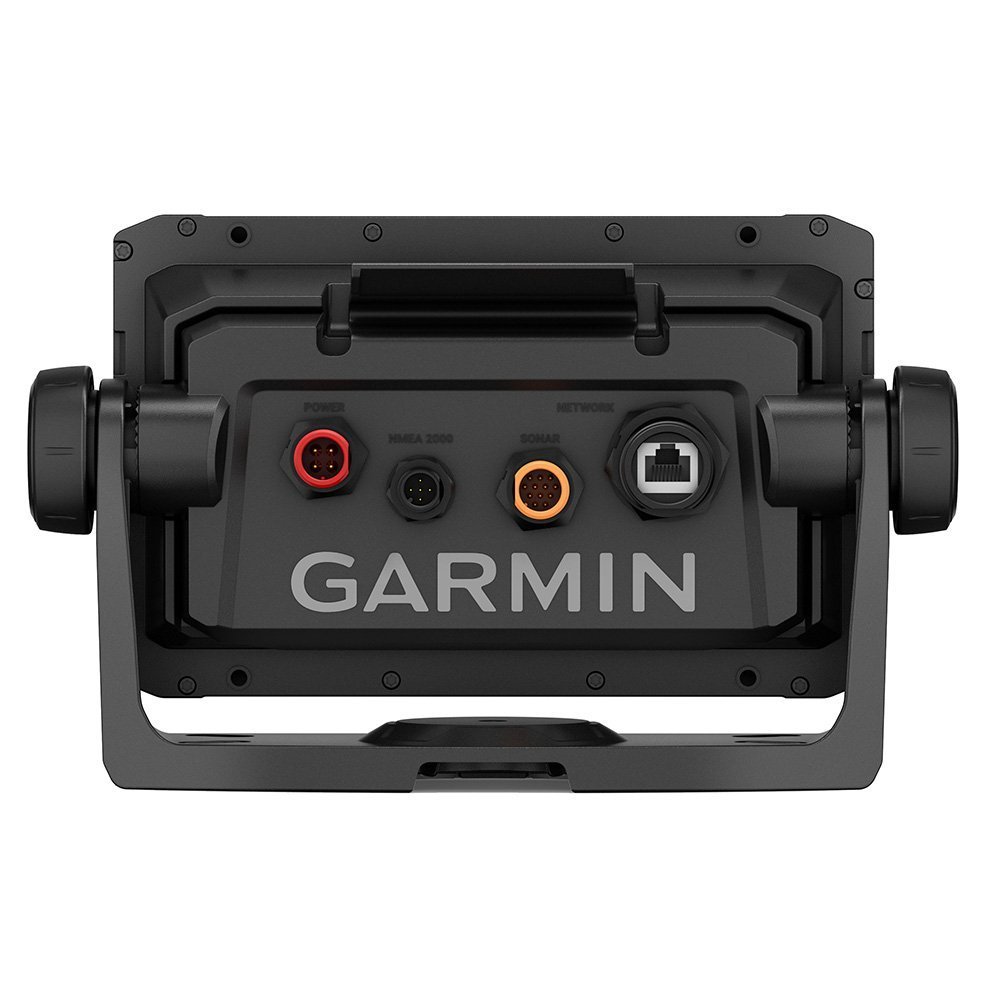

Garmin ECHOMAP UHD2 64sv 6″ Coastal Chartplotter
The Garmin ECHOMAP UHD2 64sv 6" coastal chartplotter identifies a compact display configuration for coastal chart viewing.
- 6" display supports coastal chart viewing.
- ECHOMAP UHD2 identifies the product platform.
- 64sv designation identifies the listed configuration.
- Coastal chartplotter supports marine navigation display.
- Garmin branding identifies the equipment manufacturer.
$501.99
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
For a 14- to 22-foot coastal skiff or flats boat, the Garmin ECHOMAP UHD2 64sv keeps chart and sonar information close at hand without taking over the helm. Its 6.2-inch multi-touch display with keyed assist combines BlueChart g3 marine mapping, traditional CHIRP, UHD ClearVü, and UHD SideVü in a compact GPS chartplotter and fishfinder unit.
Who Is This For?
This model suits coastal skiffs, bay boats, smaller center consoles, and specialized flats boats where console space is limited. Keyed assist is useful when the boat is moving and precise touchscreen taps become difficult.
It is not ideal for a large offshore vessel that needs a wide split-screen chart and sonar view. Maximum depth depends on the selected transducer.
Warranty & Support
The supplied specifications do not state a warranty term for this model. Confirm Garmin’s current warranty coverage and exclusions before purchase.
The ECHOMAP UHD2 64sv is the compact coastal choice for buyers who need more sonar capability than a basic chartplotter but have limited dash space. Its main trade-off is the 6.2-inch display, which is easier to install than a 7- or 12-inch unit but less comfortable for detailed split-screen chart work.
Product Specifications
Garmin ECHOMAP UHD2 64sv 6" Coastal Chartplotter Specs
| Brand | Garmin |
|---|---|
| Full Model SKU/Code | 010-02683-00 (ECHOMAP UHD2 64sv) |
| Country of Origin | Taiwan |
| Component Type | Fishfinder / GPS Chartplotter Combo Unit |
| Display Technology & Resolution | WVGA Color Multi-Touch Display with Keyed Assist / 800 x 480 |
| Screen Size | 6.2" Diagonal Window |
| Sonar Power Rating / Output Power | 500 Watts RMS |
| Traditional CHIRP Frequencies | 50/77/83/200 kHz (Low, Medium, and High CHIRP Support) |
| Scanning Sonar Technologies | Ultra High-Definition ClearVü, SideVü, and Traditional CHIRP |
| Scanning Sonar Frequencies | CHIRP ClearVü: 800 kHz; UHD ClearVü: 800 kHz; UHD SideVü: 1070 kHz |
| Live Sonar Compatibility | Panoptix and LiveScope Network Compatible (via Wireless Sharing) |
| Maximum Depth Capacity | 700 m / 2300 ft Traditional Freshwater (Dependent on Transducer) |
| Operating Voltage | 9 to 18 Volts DC |
| Data Networking Protocols | NMEA 2000, Wireless Connectivity (Unit-to-Unit Sonar/Waypoints) |
| Waterproof Rating | IPX7 Waterproof Protection Architecture |
| Maximum Current Draw | 1.5 Amps at 12V DC Input Loop (Max Power Draw: 18.0W) |
| Dry Weight | 0.8 kg / 1.8 lbs |
| Application | Coastal skiffs, bay fishing platforms, smaller center consoles, and specialized flats boats utilizing preloaded BlueChart g3 marine maps (14-22 ft hulls) |
