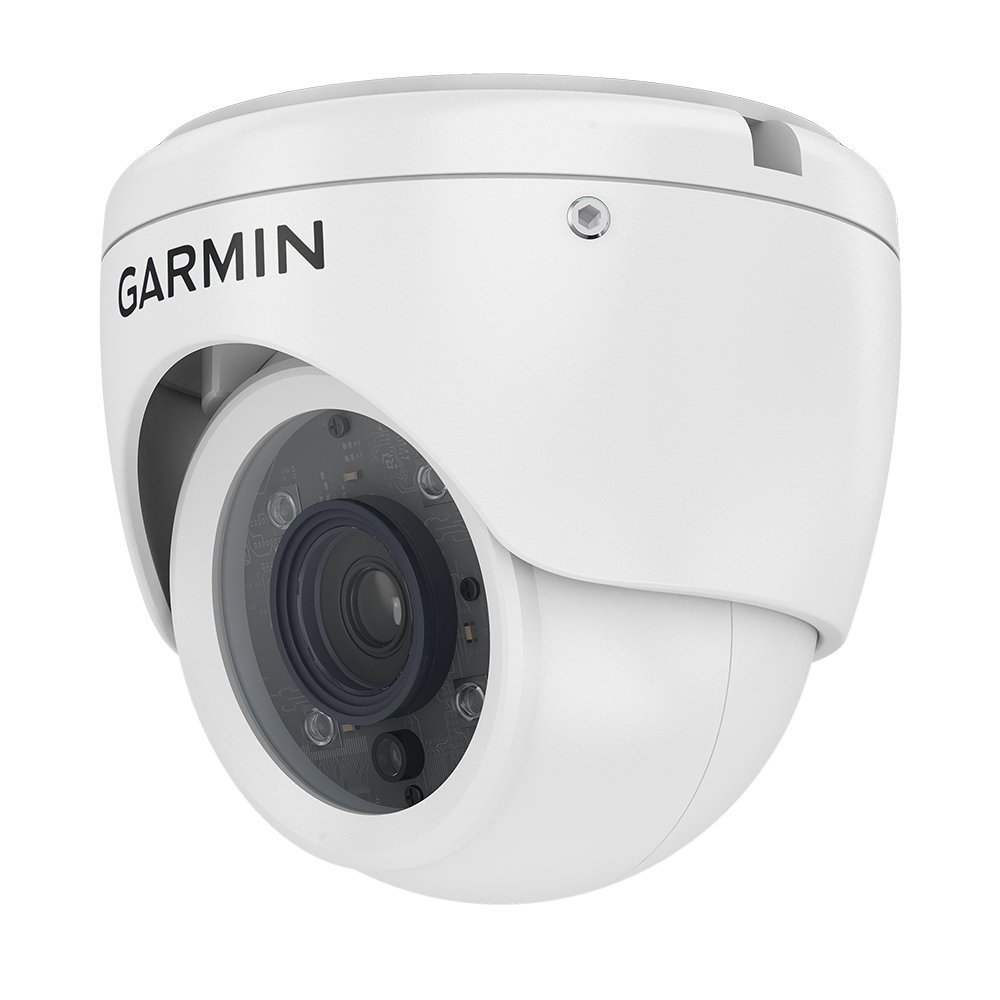

Garmin GC 200 Marine IP Security Camera Unit
Illuminating pitch-black engine rooms up to 30 meters, the Garmin GC 200 security camera streams 1080p HD video at 30 fps over Garmin Marine Network lines, drawing 5W max within an IPX7 housing at 0.66 lbs.
- 1080p sensor streams 30 fps video
- Infrared LEDs illuminate targets to 30m
- Power over Ethernet simplifies single-cable wiring
- IPX7 waterproof rating survives open washdowns
- Adjustable ball joint simplifies helm mounting
$316.84
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Monitor key areas of the boat with a wired high-definition view using the Garmin GC 200 Marine IP Camera. Its 1080p video, built-in infrared LEDs, and compact adjustable mount make it useful for watching the cockpit, boarding gate, transom, engine-space entrance, or other blind spots from a compatible Garmin GPSMAP display. Need a permanent camera connection rather than a wireless signal? The GC 200 uses Garmin Marine Network Ethernet and can operate from Power over Ethernet or compatible 12V/24V DC power.
Integration
The GC 200 requires a compatible Garmin GPSMAP chartplotter or network video-capable Garmin display. It is not a wireless camera, chartplotter, radar, GPS receiver, or NMEA 2000 video device. Plan for an available Garmin Marine Network connection, appropriate Ethernet adapters where necessary, and either PoE or local vessel power.
Infrared LEDs can assist with viewing nearby areas in darkness, but camera image quality is affected by glare, spray, fog, rain, dirt, reflection, ambient light, and lens position. The GC 200 does not replace visual lookout, onboard lighting, radar, charts, or safe operating practices.
Before Ordering
Confirm compatible Garmin GPSMAP support, available Garmin Marine Network capacity, local power or PoE method, camera field of view, mounting location, cable route, and any needed network adapters before ordering.
Product Specifications
Garmin GC 200 Marine IP Security Camera Unit
| Brand | Garmin |
|---|---|
| Full Model SKU / Code | 010-02061-00 |
| Device Type | Wired High-Definition Marine IP Security / Monitoring Camera |
| Display Size | N/A (Connects to Compatible Garmin GPSMAP Chartplotters) |
| Display Resolution | 1080p / 30 fps High Definition Video Output |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Garmin Marine Network (Ethernet Plug-and-Play) |
| Wireless Connectivity | None (Wired Ethernet Connection) |
| Sonar Specifications | Built-in Infrared LEDs for Night Vision up to 30 meters (98 ft) |
| Waterproof Rating | IPX7 |
| Operating Voltage Range | 12 or 24 V DC (Power over Ethernet - PoE supported) |
| Power Consumption | Max 5 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions (ø x L) | 62 x 100 mm (2.44 x 3.94 in) |
| Dry Weight | 0.3 kg (0.66 lbs) |
| Mounting Options | Adjustable Ball Joint Surface / Flush Mount Bracket |
