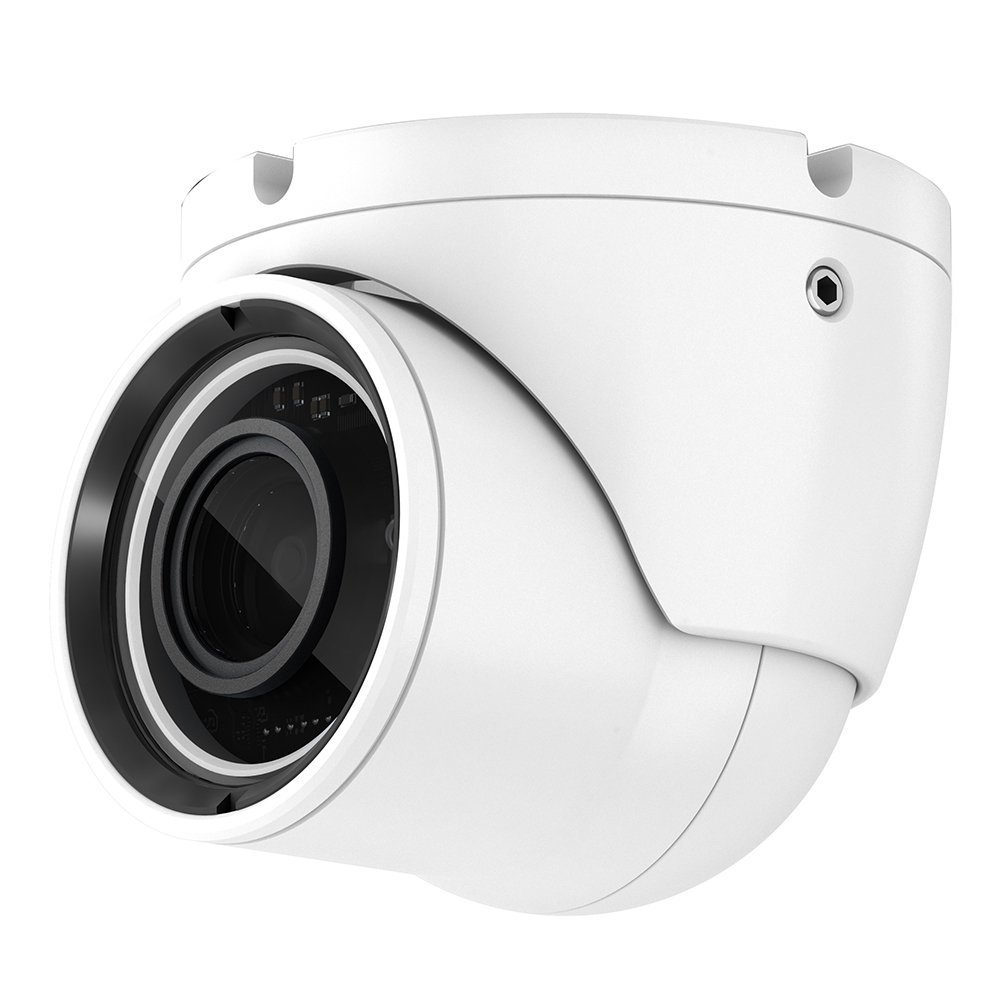

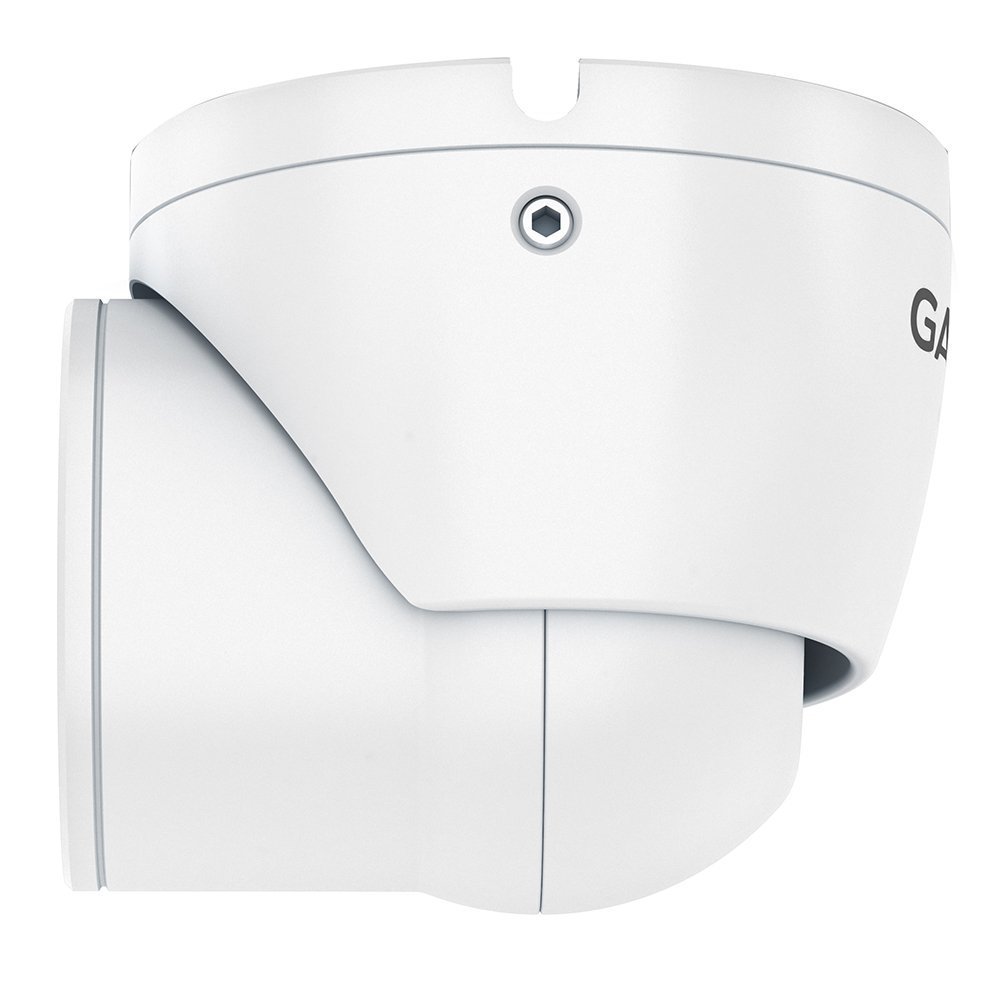

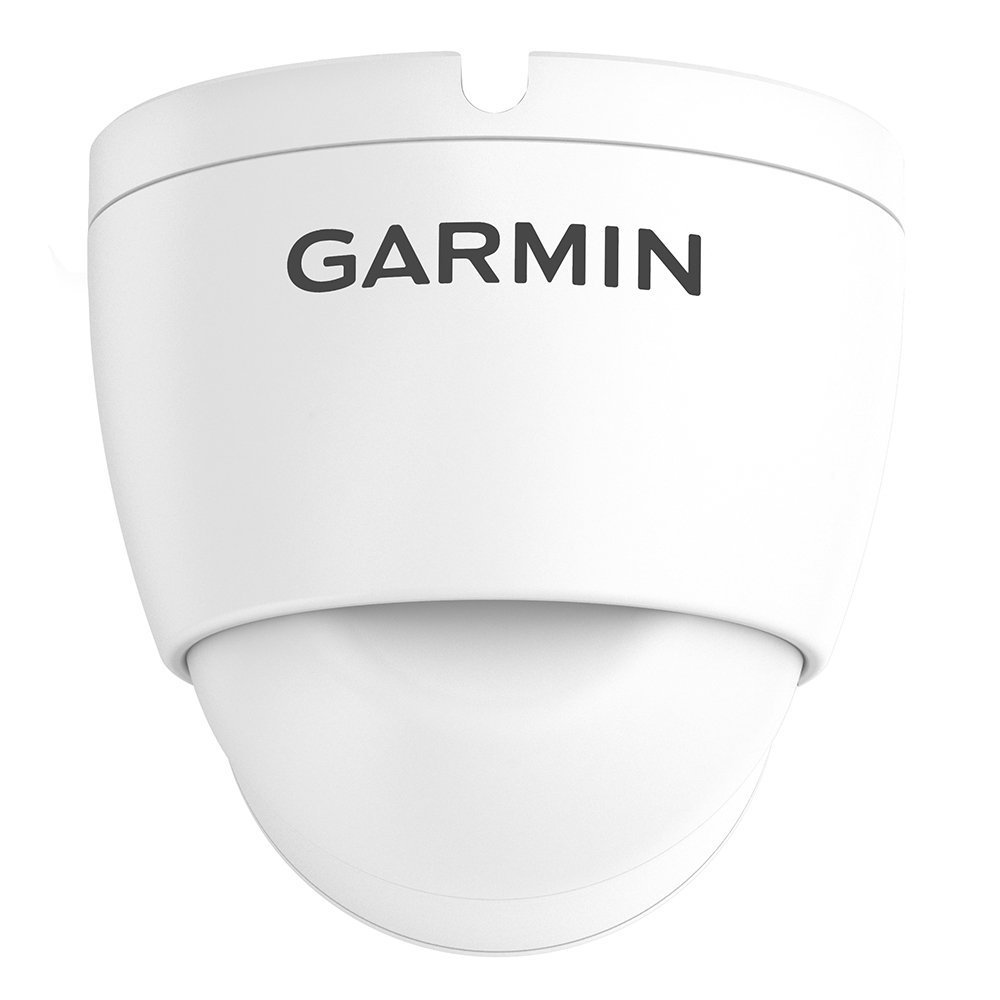

Garmin GC14 Marine Camera
Monitoring hot engine compartments with analog composite video, this Garmin GC14 backup camera outputs NTSC video over BNC lines with selectable reverse imaging, drawing 1.5W at 12V inside an IPX7 submersible casing at 0.33 lbs.
- Selectable reverse image simplifies vessel backing maneuvers
- Analog BNC port feeds compatible Garmin chartplotters
- Consumes 1.5W preserving auxiliary house batteries
- IPX7 waterproof casing protects wet engine bilges
$201.60
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add a compact analog camera view to a compatible Garmin system with the Garmin GC 14 Marine Camera. Its reverse-image setting and low-light analog sensor make it useful for checking a swim platform, transom, engine space, cockpit, or docking area from an MFD or monitor with a composite-video input. Need a straightforward backup-style camera without Ethernet networking? The GC 14 sends NTSC composite video through BNC, uses minimal power, and mounts with an adjustable surface or overhead bracket.
Integration
The GC 14 requires a compatible Garmin MFD, monitor, or video interface with an NTSC composite-video input. It is not an Ethernet IP camera, wireless camera, chartplotter, GPS receiver, recorder, radar, or NMEA 2000 device. Confirm BNC/RCA adapter requirements and display input compatibility before installation.
The standard/reverse-image feature can make a stern-facing camera view easier to interpret, but it does not provide automated docking guidance or obstacle detection. Camera image quality varies with light, glare, rain, fog, spray, lens condition, and mounting location.
Before Ordering
Confirm NTSC composite-video input compatibility, BNC/RCA adapter needs, available 9V–18V power, preferred image orientation, mounting location, camera viewing angle, and cable routing before ordering.
Product Specifications
Garmin GC14 Marine Camera
| Brand | Garmin |
|---|---|
| Full Model SKU / Code | 010-01389-00 |
| Device Type | Analog Marine Reverse/Standard Image Camera |
| Display Size | N/A (Compatible Garmin MFD Required) |
| Display Resolution | Analog Video Output (NTSC) |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Analog Composite Video Output (BNC) |
| Wireless Connectivity | None |
| Sonar Specifications | Standard Low-Light Analog Sensor with Reverse Image Setting for Backup/Engine Room Monitoring |
| Waterproof Rating | IPX7 Submersible |
| Operating Voltage Range | 9 to 18 V DC |
| Power Consumption | Max 1.5 W |
| Operating Temperature | -15°C to 50°C (5°F to 122°F) |
| Dimensions (ø x L) | 45 x 65 mm (1.8 x 2.6 in) |
| Dry Weight | 0.15 kg (0.33 lbs) |
| Mounting Options | Surface / Overhead Bracket Mount |
