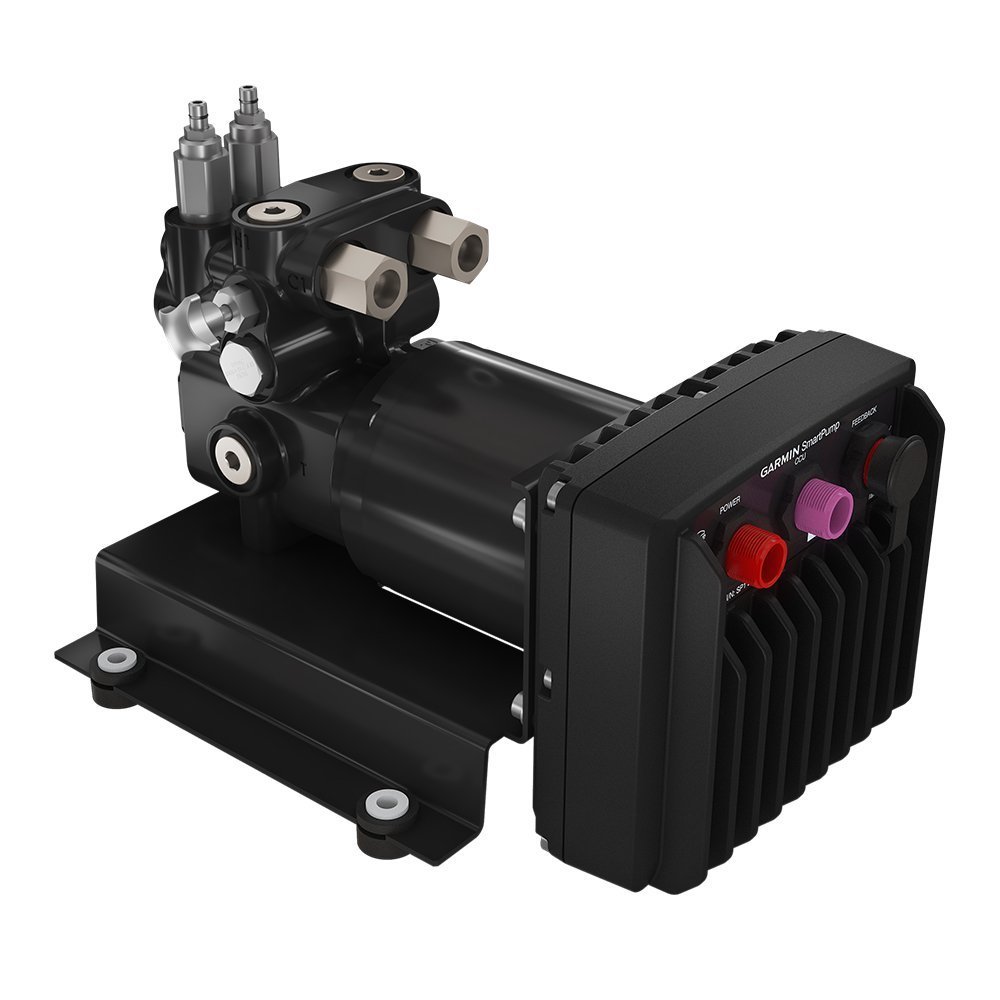

Garmin GHP SmartPump v2
Driving high-capacity steering cylinders without hydraulic cavitation, this Garmin SmartPump v2 hydraulic autopilot uses brushless motor engineering across 10V to 30V inputs, managing up to 24-cu-in rams via 9-axis AHRS leveling and Shadow Drive.
- Brushless motor enhances long-term mechanical reliability
- Universal pump fits 24-cu-in steering cylinders
- Shadow Drive allows instant manual override
- 9-axis AHRS eliminates compass calibration drift
$1,693.67
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Garmin GHP SmartPump v2
| Brand | Garmin |
|---|---|
| Model Name | GHP SmartPump v2 Autopilot System |
| Part Number/SKU | 010-00705-65 |
| Technology Category | Hydraulic Autopilot Steering System |
| Drive Unit Compatibility | Universal (Up to 24 cu in cylinders) |
| Heading Sensor | 9-axis Solid-state AHRS (Reactor 40 CCU) |
| Steering Technology | Shadow Drive™ & SmartFlow™ Technology |
| Motor Type | Brushless (Increased Reliability & Efficiency) |
| Voltage Input | 10V - 30V DC |
| Power Consumption | Idle: <200mA; Typical: 1A - 2A |
| Networking | NMEA 2000® Certified / ANT+ (Quatix Support) |
| Waterproofing | IPX7 (Pump, ECU, and CCU) |
| Dimensions (Pump) | 7.8" x 7.5" x 9.6" (197 x 190 x 244 mm) |
| Operating Temp | -15°C to 55°C (5°F to 131°F) |
| In-Box Contents | SmartPump v2, Reactor 40 CCU, ECU, Shadow Drive, Cables |
| Standard Warranty | 2-Year Manufacturer Warranty |
