Garmin GPSMAP 8610 10″ Premium Touch Chartplotter
Sampling 10Hz multi-GNSS fixes with zero position lag, the Garmin GPSMAP 8610 marine GPS plots BlueChart g3 and LakeVü g3 maps across a 10.1-inch 1080p IPS touchscreen, storing 5,000 waypoints at 5.2 lbs.
- 10Hz internal receiver eliminates position jumping
- 10.1-inch Full HD screen prevents glare
- Dual MicroSD slots expand chart storage
- IPX7 flat-glass seal protects open helms
$1,378.08
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout

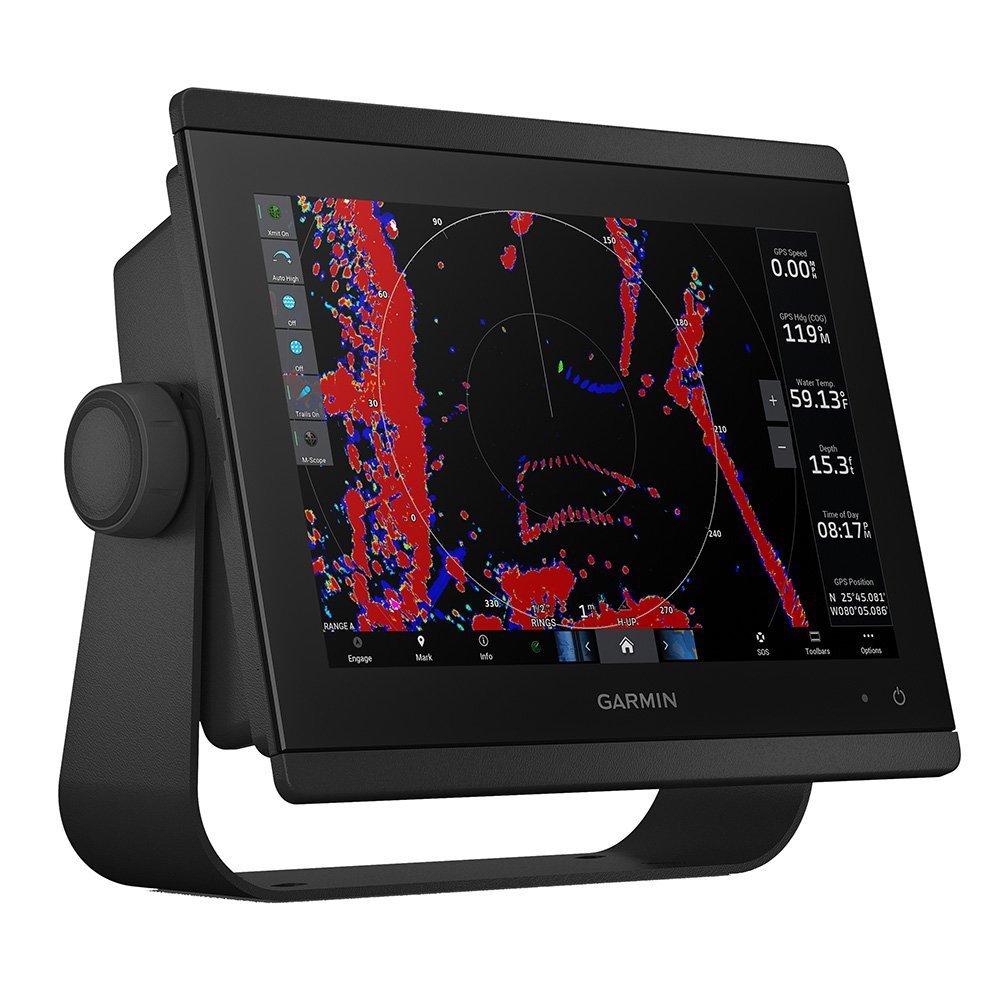

The Garmin GPSMAP 8610 is a 10.1-inch premium touch chartplotter with Full HD resolution, BlueChart g3 and LakeVü g3 core maps, and a 10Hz internal GNSS receiver supporting GPS, GLONASS, Galileo, and QZSS. NMEA 2000, NMEA 0183, J1939, Garmin Marine Network, WiFi, Bluetooth, and ANT+ provide a broad connected platform for offshore fishing boats and sports cruisers.
Who Is This For?
This unit suits 18- to 35-foot offshore fishing boats, sports cruisers, and multi-display helms that need a premium Garmin touchscreen with preloaded chart data. Its 10.1-inch size provides more viewing room than compact displays without the installation demand of a 16-inch MFD.
It is not ideal for buyers seeking an all-in-one fishfinder because the supplied specifications do not list built-in sonar or a transducer. External sonar hardware is required for fishfinding functions.
Warranty & Support
The supplied specifications do not state a warranty term for this model. Confirm Garmin’s current warranty coverage and exclusions before purchase.
The GPSMAP 8610 is the chart-focused Garmin option here, offering Full HD resolution, BlueChart g3 and LakeVü g3 mapping, and wide network compatibility without claiming built-in sonar. Its trade-off is the need for external GSD or other sonar hardware if fishfinding is required. Choose it for a premium chartplotter installation where coastal and inland mapping matter more than an included sounder.
Product Specifications
Product Specifications
| Brand | Garmin |
|---|---|
| Full Model SKU/Code | 010-02091-01 (GPSMAP 8610) |
| Country of Origin | Taiwan |
| Device Type | Premium Fixed-Mount Touchscreen Multi-Function Display (MFD) |
| GNSS Systems Support | GPS, GLONASS, Galileo, QZSS |
| Receiver Channels & Frequency | High-Performance Internal 10 Hz Receiver Array |
| Preloaded Marine Charts | BlueChart g3 and LakeVü g3 Core Maps |
| Display Technology & Resolution | Full HD (FHD) In-Plane Switching (IPS) Multi-Touch Screen / 1920 x 1080 |
| Screen Size | 10.1" Diagonal Window Display Surface |
| Interface Type | Capacitive Multi-Touch Control Display |
| Waypoint & Route Capacity | 5,000 Waypoints / 100 Routes |
| Internal Memory & Expansion | Integrated Internal Cache Memory / Dual MicroSD Card Slot Hub Layout |
| Operating Voltage | 10 to 32 Volts DC Universal Power Rail |

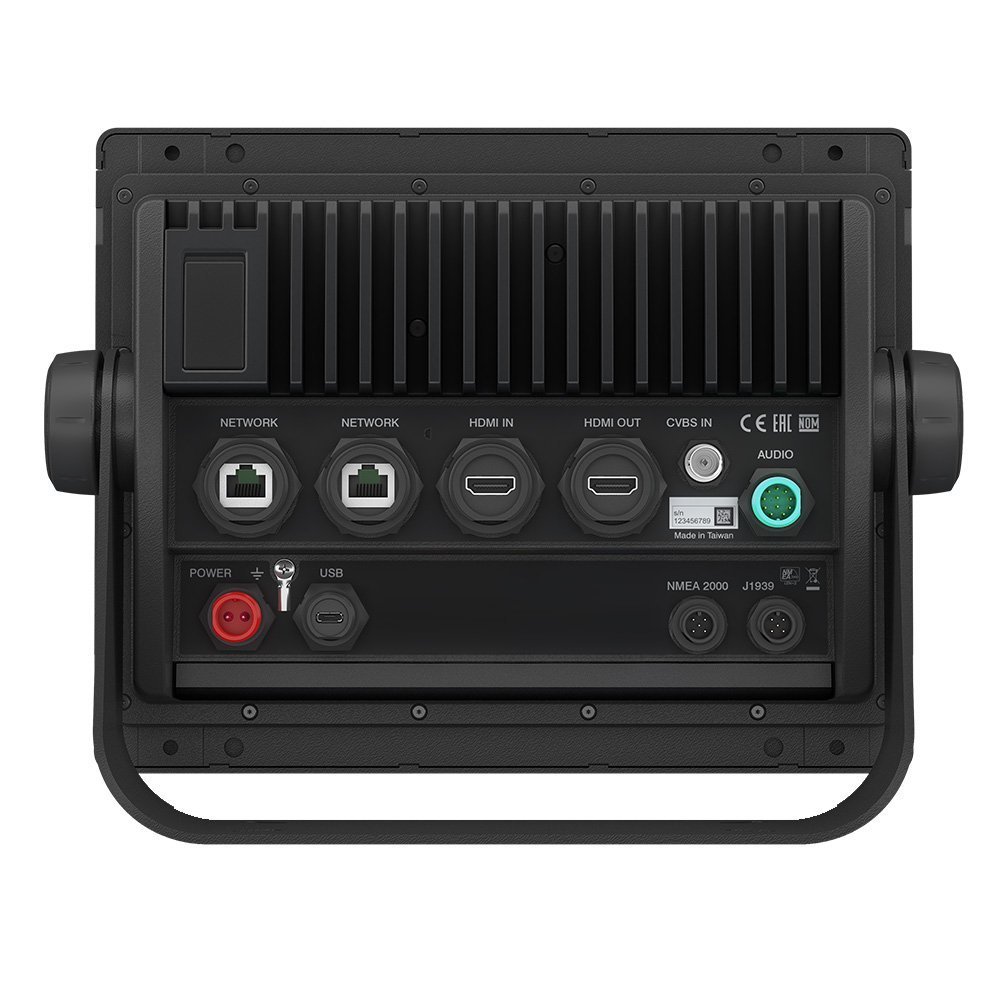

| Data Networking Protocols | Garmin Marine Network Ethernet, NMEA 2000, NMEA 0183, J1939 Can Bus, Wi-Fi, Bluetooth, ANT+ |
| Waterproof & Floating Rating | IPX7 Flat-Glass Console Panel Face Seal |
| Maximum Current Draw | 2.4 Amps at 12V DC Input Loop (Max Power Draw: 24W) |
| Dry Weight | 2.4 kg / 5.2 lbs |
| Application | Premium helm dashboard center arrays on mid-size offshore fishing boats, sports cruisers, and multi-display setups (18-35 ft hulls) |
