Garmin GPSMAP 9017xsv Premium Chartplotter/Sonar Combo w/Worldwide Basemap
Accelerating map panning across large sportfishing yachts, this Garmin GPSMAP 9017xsv positioning sensor routes high-speed BlueNet networking across a 17-inch 1080p IPS touchscreen, displaying worldwide basemaps with built-in 1kW CHIRP at 1200 nits across 5.2 kg.
- 17-inch IPS panel stops glare washout
- BlueNet ports accelerate multi-station network sharing
- Built-in 1kW CHIRP marks deep gamefish
$4,258.65
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Garmin GPSMAP 9017xsv is a 17-inch premium glass helm MFD with a 1200-nit Full HD IPS touchscreen, built-in 1kW CHIRP, UHD ClearVü, UHD SideVü, Panoptix support, and a Worldwide Basemap. Garmin BlueNet provides high-speed network connectivity, while HDMI, USB-C, NMEA 2000, NMEA 0183, WiFi, Bluetooth, and ANT+ support a large integrated marine electronics system.
Who Is This For?
This unit suits large offshore fishing boats, luxury cruisers, commercial vessels, and glass bridge helms that need a 17-inch premium display. The anti-glare Full HD screen is useful when navigation and system data must remain visible in daylight.
It is not ideal for small boats or buyers who need regional charts and a transducer included. The Worldwide Basemap provides basic reference mapping, and sonar hardware must be selected separately.
Warranty & Support
Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.
The GPSMAP 9017xsv is the Worldwide Basemap alternative to the charted GPSMAP 9217xsv, retaining the 17-inch Full HD display, premium Garmin Marine OS platform, and broad sonar and network support. Its main trade-off is chart coverage: Navionics+ is compatible but not preloaded in this package. Choose it for a custom glass helm where chart media and transducer hardware will be selected separately.
Product Specifications
Product Specifications
| Brand | Garmin |
|---|---|
| Model Name | GPSMAP 9017xsv |
| Part Number/SKU | 010-02641-00 |
| Technology Category | Premium Glass Helm MFD Combo |
| Display Size & Type | 17" IPS Touchscreen (Anti-glare) |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Brightness | 1200 nits |
| Processor/Engine | Garmin Ultra-High Speed Processor (7x faster than previous gen) |
| Operating System | Garmin Marine OS |
| Sonar Compatibility | Built-in 1kW CHIRP, ClearVü/SideVü (UHD), Panoptix Support |
| Mapping/Charts | Worldwide Basemap (Navionics+ Compatible) |
| NMEA Interface | NMEA 2000, NMEA 0183 |

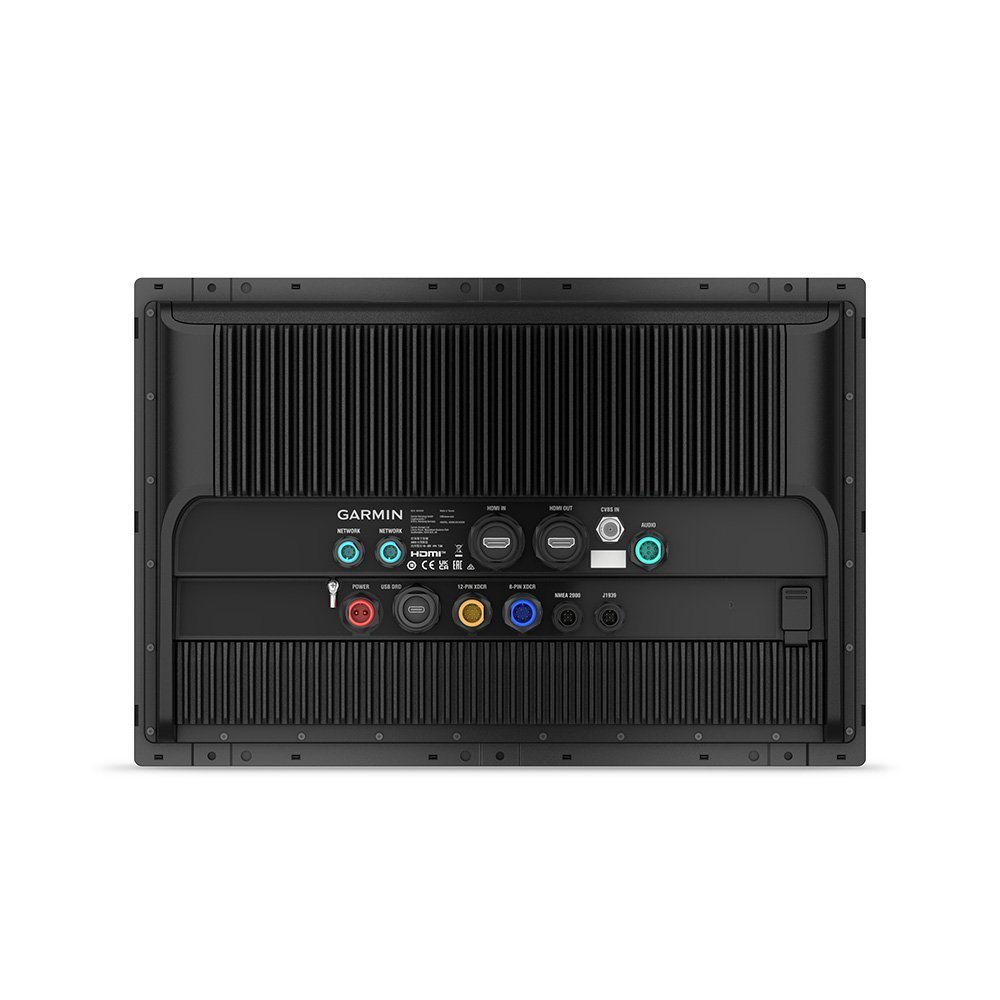

| Networking Ports | Garmin BlueNet (High-Speed), 1x HDMI In/Out, 1x USB-C |
| Wireless | Wi-Fi, Bluetooth, ANT+ |
| Voltage Input | 10 - 32 V DC |
| Power Draw | 4.2 Amps @ 12V |
| Waterproofing | IPX7 |
| Physical Dimensions | 428 x 284 x 82 mm |
| Cut-out Dimensions | 404 x 262 mm |
| Weight | 5.2 kg |
| Country of Origin | Made in Taiwan |
| Standard Warranty | 2 Years |
