Garmin GPSMAP 9022 22 Premium Chartplotter w/Worldwide Basemap
Displaying expansive 1080p navigation charts across custom yacht helms, a Garmin GPSMAP 9022 GPS receiver drives a high-speed BlueNet processor on a 22-inch 1200-nit IPS touchscreen, streaming worldwide basemaps at 5.1A across 7.4 kg.
- 22-inch Full HD screen maximizes visibility
- 1200-nit brightness prevents midday screen glare
- BlueNet Gigabit ports accelerate network sharing
- Multiple video ports link onboard cameras
$6,861.69
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout

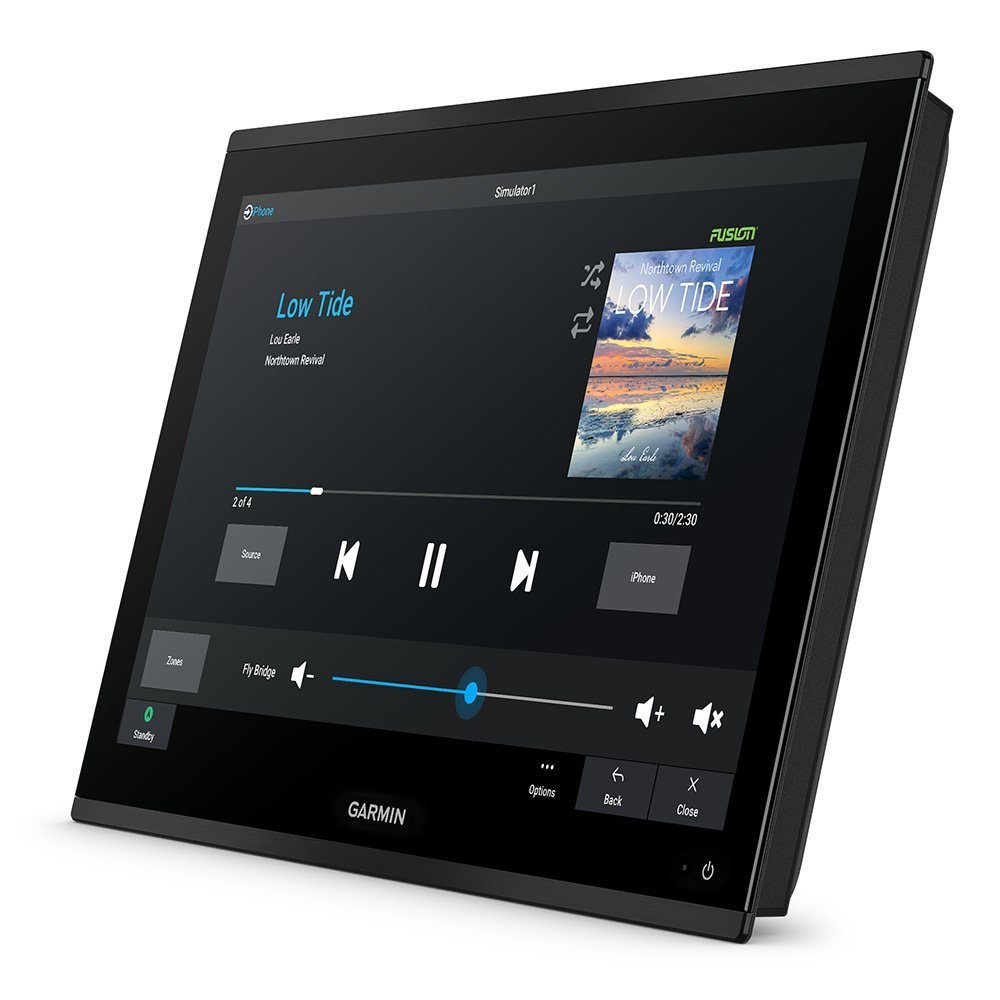

The Garmin GPSMAP 9022 is a 22-inch premium glass helm chartplotter with a 1920 x 1080 IPS touchscreen, 1200-nit brightness, Garmin BlueNet processing, and Worldwide Basemap. Network sonar requires compatible BlueNet or GSD modules, while multiple BlueNet ports, HDMI, USB-C, NMEA 2000, and NMEA 0183 support a large offshore vessel system.
Who Is This For?
This unit suits large offshore fishing boats, luxury cruisers, commercial vessels, and yacht helms that need a premium 22-inch chartplotter. The large display is useful when navigation, radar, video, and vessel data must remain visible together.
It is not ideal for a small boat or buyers seeking a complete fishfinder package. Sonar requires external modules, and the large display needs careful cutout and power planning.
Warranty & Support
Garmin provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.
The GPSMAP 9022 is the premium Garmin 22-inch glass helm option in this group. Its trade-off is clear: it offers a large Full HD navigation workspace but requires external sonar modules and includes only a Worldwide Basemap. Choose it for a professionally planned offshore or yacht installation rather than a compact ready-to-fish system.
Product Specifications
Product Specifications
| Brand | Garmin |
|---|---|
| Model Name | GPSMAP 9022 |
| Part Number/SKU | 010-02642-00 |
| Technology Category | Premium Glass Helm MFD |
| Display Size & Type | 22" IPS Touchscreen |
| Resolution | 1920 x 1080 pixels (Full HD) |
| Brightness | 1200 nits |
| Processor/Engine | Garmin BlueNet Ultra-High Speed Processor |
| Operating System | Garmin Marine OS (9000 Series) |
| Sonar Compatibility | Network Sonar Support via BlueNet/GSD Modules |
| Mapping/Charts | Worldwide Basemap |
| NMEA Interface | NMEA 2000, NMEA 0183 |

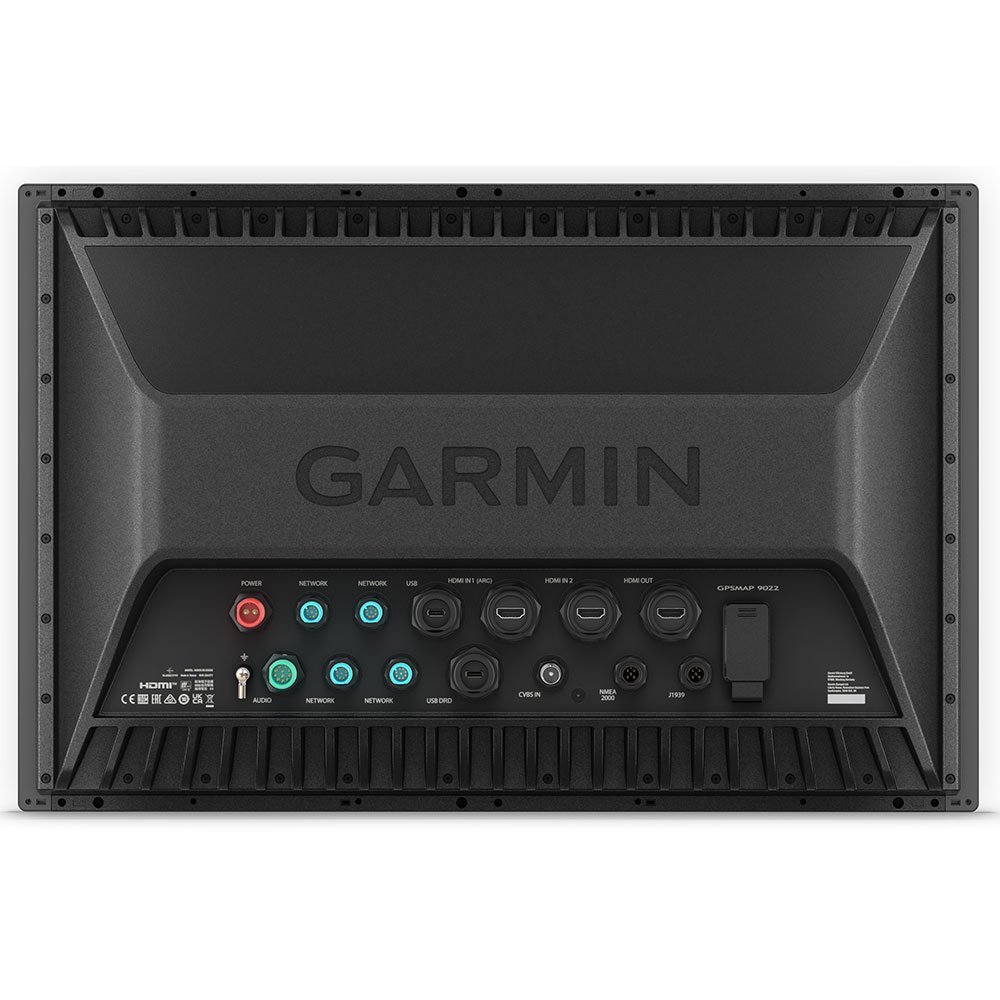

| Networking Ports | Multiple BlueNet Ports, 1x HDMI In/Out, 1x USB-C |
| Wireless | Wi-Fi, Bluetooth, ANT+ |
| Voltage Input | 10 - 32 V DC |
| Power Draw | 5.1 Amps @ 12V |
| Waterproofing | IPX7 |
| Physical Dimensions | 530 x 342 x 82 mm |
| Cut-out Dimensions | 507 x 319 mm |
| Weight | 7.4 kg |
| Country of Origin | Made in Taiwan |
| Standard Warranty | 2 Years |
