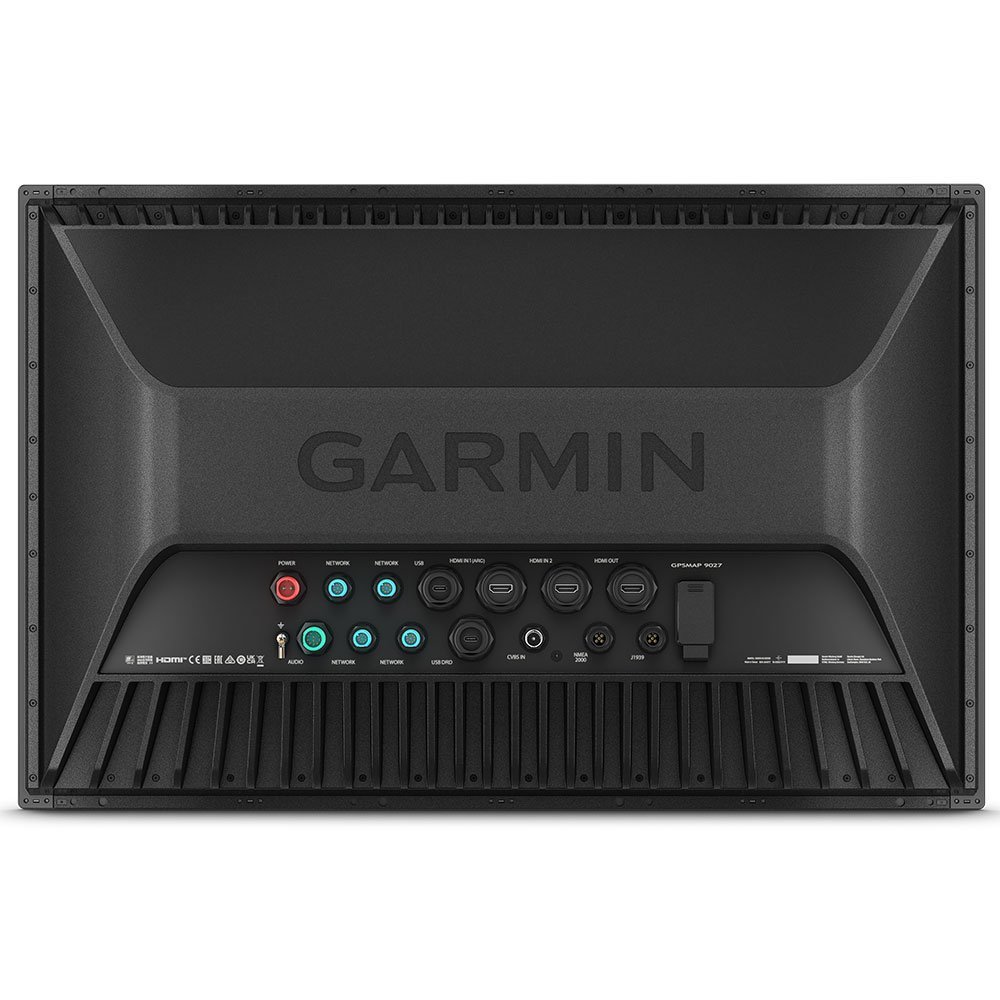

Garmin GPSMAP 9227 27″ Navionics+ Yacht Chartplotter
Plotting intricate mega-yacht courses in 4K resolution, a Garmin GPSMAP 9227 marine GPS samples 10Hz multi-band satellite fixes across a 27-inch 3840×2160 IPS touchscreen, rendering preloaded Navionics+ charts over BlueNet Gigabit ports at 24.9 lbs.
- 27-inch 4K touchscreen delivers 3840×2160 clarity
- 10Hz multi-band core eliminates position lag
- Garmin Navionics+ charts guide coastal passages
- BlueNet Gigabit ports speed radar sharing
- OneHelm interface coordinates digital vessel switching
$10,057.70
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Garmin GPSMAP 9227 is a 27-inch 4K glass bridge chartplotter with Garmin Navionics+ coastal and inland charts, a high-rate 10Hz multi-band positioning core, and Garmin BlueNet Gigabit networking. Its 3840 x 2160 IPS touchscreen provides an expansive workspace for charts and vessel systems, making it suitable for superyachts, mega-yachts, and large offshore helms.
Who Is This For?
This model suits superyachts, luxury mega-yachts, large offshore sportfishers, and 45- to 100-plus-foot vessels with a dedicated glass bridge. The 27-inch 4K screen is useful when multiple navigation and vessel-data windows must remain visible at the same time.
It is not ideal for a small boat or standard center console. The display weighs 11.3kg, requires a large cutout, and belongs in a professionally planned helm rather than a simple retrofit.
Warranty & Support
The supplied specifications do not state a warranty term for this model. Confirm Garmin’s current warranty coverage and exclusions before purchase.
The GPSMAP 9227 is the flagship display in this group, offering a 27-inch 4K chartplotter workspace that is far beyond the 16- and 17-inch MFDs. Its trade-off is vessel scale: the weight, cutout, power requirements, and 27-inch footprint demand a professionally designed glass bridge. Choose it for a superyacht or mega-yacht helm where maximum chart visibility is worth the installation commitment.
Product Specifications
Product Specifications
| Brand | Garmin |
|---|---|
| Full Model SKU/Code | 010-02859-00 (GPSMAP 9227) |
| Country of Origin | Taiwan |
| Device Type | Premium Fixed-Mount Glass Bridge Multi-Function Display (MFD) |
| GNSS Systems Support | GPS, GLONASS, Galileo, QZSS, BeiDou |
| Receiver Channels & Frequency | High-Rate 10 Hz Multi-Band Positioning Core |
| Preloaded Marine Charts | Garmin Navionics+ Coastal and Inland Mapping Arrays |
| Display Technology & Resolution | Ultra-Bright 4K Touchscreen IPS Display Screen / 3840 x 2160 |
| Screen Size | 27.0" Diagonal Window |
| Interface Type | Capacitive Multi-Touch Interface Screen |
| Waypoint & Route Capacity | 5,000 Waypoints / 100 Routes |
| Internal Memory & Expansion | Integrated High-Speed Core SSD / Network Card Reader Compatible |
| Operating Voltage | 10 to 32 Volts DC Universal Rail Interface |
| Data Networking Protocols | Garmin BlueNet Gigabit Network Ports, NMEA 2000, NMEA 0183, J1939 Engine Bus, OneHelm Interface |
| Waterproof & Floating Rating | IPX7 Extreme Deck Front Panel Surface Armor |
| Maximum Current Draw | 6.0 Amps at 12V DC Input Loop |
| Dry Weight | 11.3 kg / 24.9 lbs |
| Application | Flagship helm glass-bridge matrix systems on large luxury superyachts, custom mega-yachts, and offshore mega-center consoles (45-100+ ft boat lengths) |
