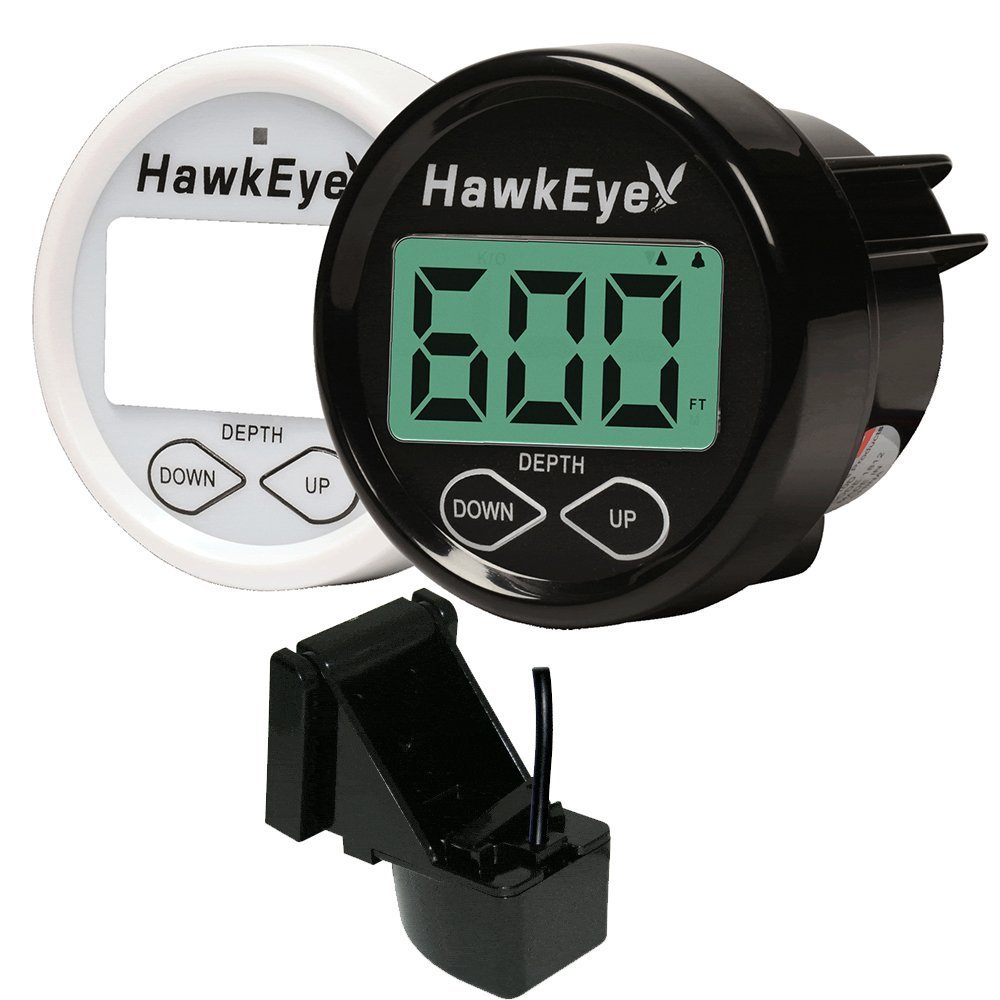

Hawkeye DepthTrax In-Dash Digital Depth Gauge
HawkEye DepthTrax In-Dash Digital Depth Gauge displays water depth through a 52mm dashboard instrument with included transom or in-hull transducer options.
- 52 mm / 2-1/16" pod fits.
- 3 ft to 199 ft range.
- SoftGlow LCD presents depth readings.
- Deep and shallow alarms sound.
- 12V DC input supports operation.
$66.99
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Brand | HawkEye (NorCross Marine) |
|---|---|
| Full Model SKU/Code | DT1B-TM / DT1B-IH (DepthTrax 1B Series) |
| Country of Origin | USA |
| Gauge Type | Single-Function Dedicated Digital Dashboard Instrument |
| Monitored Parameters | Water Depth, Shallow/Deep Water Distance Profiles |
| Data Bus / Protocol Compatibility | Proprietary High-Speed Acoustic Echo-Sounding Bus (Links to included Transom or In-Hull Transducer) |
| Display Technology & Backlighting | Algorithmic SoftGlow Backlit Monochrome Segmented Digital LCD Screen |
| Bezel/Housing Diameter | 52 mm / 2-1/16" Standard Pod Size |
| Mounting Method / Cutout Size | Dash Flush Mount with Threaded Stud Rear Latch Bracket and Finger-Tight Thumb Nuts / 53mm Cutout |
| Operating Voltage | 12 Volts DC (Operating Range 11 to 14.4V DC) |
| Current Draw / NMEA 2000 LEN | Operational Active Current Draw: 40 mA (Backlighting Engaged Max: 100 mA) |
| Waterproof Rating | IPX6 Front Frame Facia Splash Defensive Armor |
| Lens Technology | Hard-Coated Scratch-Resistant Domed Acrylic Marine Lens Structure |
| Material & Bezel Finish | Impact-Resistant ABS Shell Enclosure with Marine Matte Black and Polished White Bezel Interchange Rings |
| Number of Supportable Engines | Single Vessel Depth Configuration Asset |
| Alarm & Alert System | Dual Audible Deep and Shallow Water Alarms, Integrated Icon Flash Warning Alerts |
| Dry Weight | 0.24 kg / 0.53 lbs (Display Head Assembly Only) |
| Application | Dedicated real-time bottom clearance tracking for center consoles, small skiffs, jet boats, bass platforms, and performance bowriders navigating skinny water (14-28 ft hulls) |
