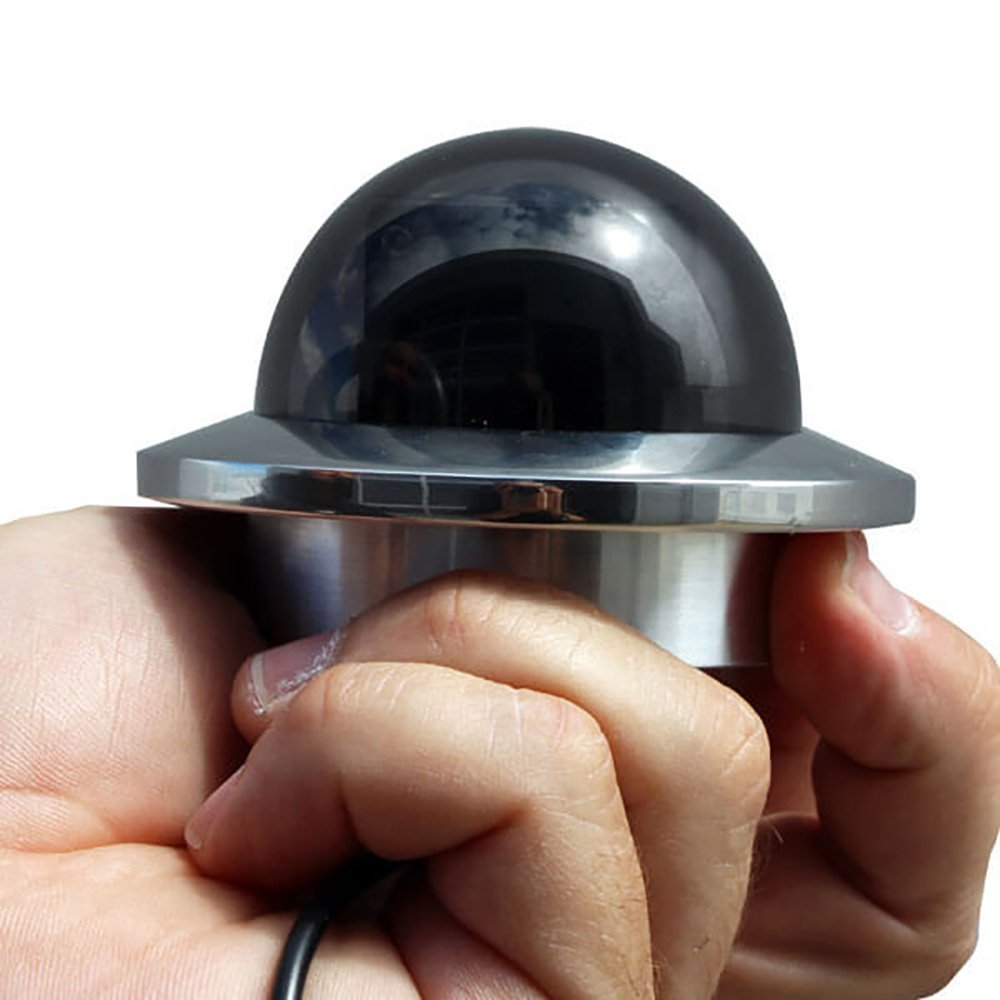

Iris Miniature Marine PTZ Dome Camera – Stainless Bezel – Hi-Def Ethernet IP – 10x Digital Zoom – 4 in 1 Video Format
Pan-tilt-zoom positioning on hardtop undersides draws from an Iris PTZ MINI-SS dome camera, which pairs a 10x digital zoom 1080p sensor with a 316 stainless steel bezel inside an IP66 housing at 2.4 lbs.
- 316 stainless steel bezel resists salt spray
- 1080p sensor captures crisp high-definition video
- Motorized PTZ mechanism delivers 360-degree coverage
- 4-in-1 video output supports analog and IP
$681.70
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Cover a wider area from a compact overhead or deck location with the Iris Miniature Marine PTZ Dome Camera. Its 1080p CMOS sensor, motorized pan-and-tilt movement, and 10× digital zoom give operators a flexible viewpoint for monitoring a cockpit, boarding point, engine-room entrance, or dockside area. Need a small PTZ camera that can work with both IP and analog video systems? The IRIS-PTZ-MINI-SS supports Ethernet IP plus selectable AHD, TVI, CVI, or CVBS video formats in an IP66 marine dome with a stainless-steel bezel.
Integration
The camera requires a compatible MFD, monitor, NVR, or video interface. Select Ethernet IP or the appropriate analog format based on the receiving equipment, and verify supported resolution, connector type, PTZ-control method, and cable requirements before installation. It does not include a display, recorder, GPS receiver, radar, or wireless connection.
Digital zoom enlarges the existing image and does not provide the detail gain of optical zoom. Video quality depends on lighting, rain, fog, spray, lens condition, network bandwidth, display resolution, and the selected analog or IP output format.
Before Ordering
Confirm the desired IP or analog output type, display/NVR compatibility, PTZ-control requirements, 12V power source, mounting orientation, camera sweep clearance, and required cables or adapters before ordering.
Product Specifications
Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format
| Brand | Iris Innovations |
|---|---|
| Full Model SKU / Code | IRIS-PTZ-MINI-SS |
| Device Type | Miniature Pan/Tilt/Zoom Marine Dome Camera with Stainless Steel Bezel |
| Display Size | N/A (External MFD / Monitor Required) |
| Display Resolution | 1920 x 1080 pixels (Full HD 1080p) |
| Display Type | N/A |
| GPS Receiver / GNSS | N/A |
| Receiver Update Rate | N/A |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | Ethernet IP / 4-in-1 Analog Video Output (AHD, TVI, CVI, CVBS) |
| Wireless Connectivity | None |
| Sonar Specifications | High-Definition CMOS Sensor with 10x Digital Zoom and PTZ Motorized Positioning |
| Waterproof Rating | IP66 Weatherproof Marine Enclosure with Stainless Steel Bezel |
| Operating Voltage Range | 12 V DC |
| Power Consumption | Max 12 W |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dimensions (ø x L) | 120 x 140 mm (4.7 x 5.5 in) |
| Dry Weight | 1.1 kg (2.4 lbs) |
| Mounting Options | Surface Deck Mount / Hardtop Underside Mount |
