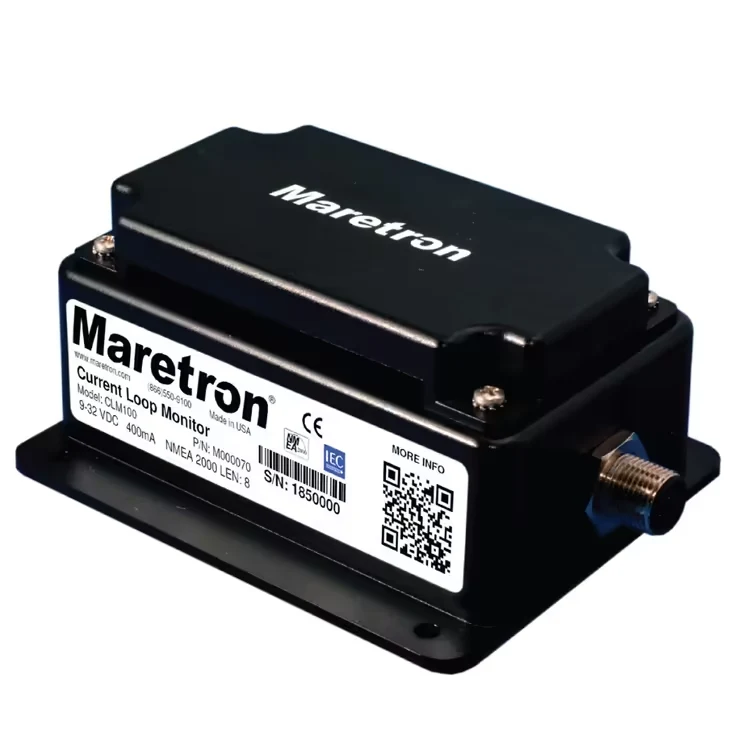

Maretron CLM100 – NMEA 2000 Current Loop Monitor
Maretron CLM100 monitors current loops through an NMEA 2000 interface for connected marine electrical measurement systems.
- CLM100 identifies the monitor model.
- Current loop monitoring tracks electrical signals.
- NMEA 2000 carries networked measurements.
- Marine systems receive monitored data.
- Compatible network equipment remains necessary.
$301.00
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Product Specifications
Product Specifications
| Product Type | Analog Interface to NMEA 2000 Gateway |
|---|---|
| Input Channels | 4-20mA Current Loop Sensors |
| Measurement Accuracy | +/- 1% of Full Scale |
| Data Connectivity | NMEA 2000 (Micro-C) |
| Power Source | NMEA 2000 Network (9-32V DC) |
| Power Consumption | Less than 50mA (LEN 1) |
| Supported Sensors | Pressure, Humidity, Temperature (4-20mA) |
| Programmable Settings | User-defined labels and instances |
| Housing Material | High-impact Plastic |
| Waterproof Rating | IP67 |
| Operating Temperature | -25°C to +55°C |
| Weight | 0.18 kg (0.4 lbs) |
