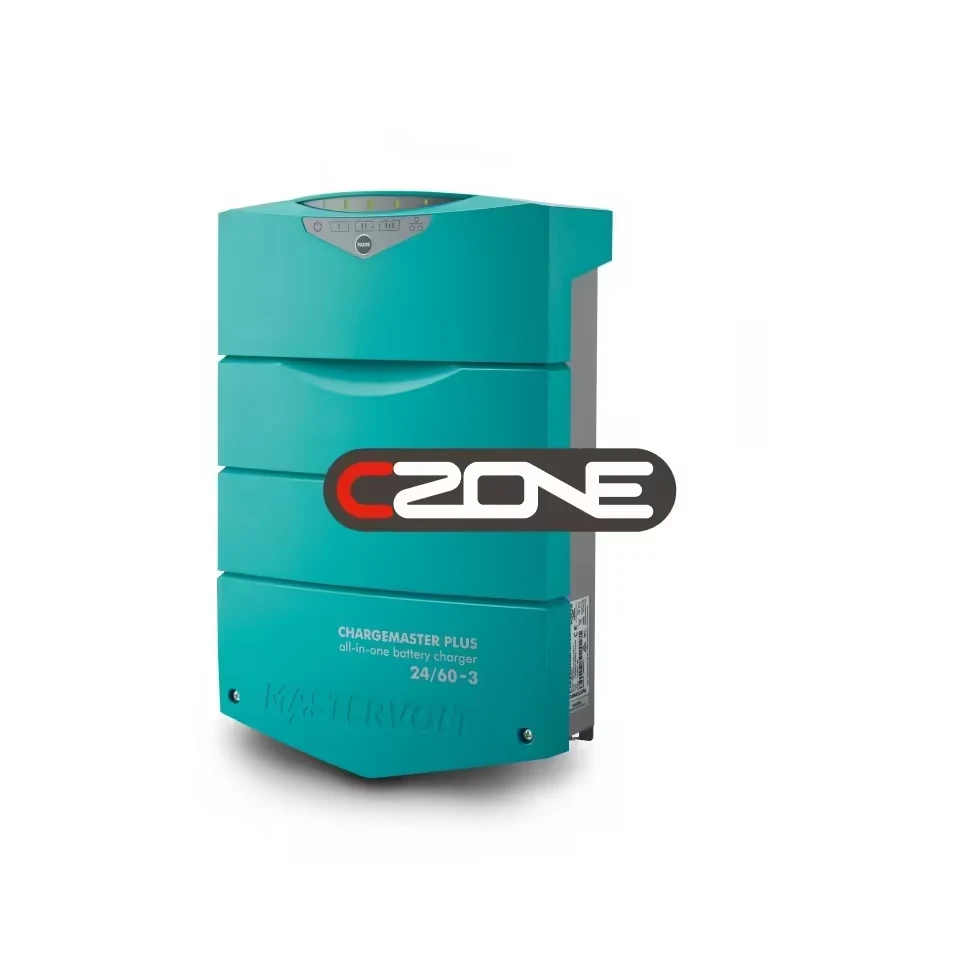

Mastervolt ChargeMaster Plus 24V / 60A- 3 Banks CZone Marine Battery Charger – 44320605
Connecting multi-bank 24V marine networks, the 7 kg Mastervolt ChargeMaster Plus 24/60-3 multi bank marine charger delivers 60A across three battery banks to support demanding navigation and domestic electronics.
- Three banks power separate groups.
- Global input spans 80-275V AC.
- Integrated sensor compensates for temperature.
- Intelligent vario-fan reduces running noise.
- Alloy case weighs 7 kg.
$1,033.56
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Managing 60 amps across three combined 24V banks, theMastervolt ChargeMaster Plus 24/60-3 Marine Battery Chargeruses a universal 80V to 275V AC input range. It supports listed LiFePO4, AGM, gel, and flooded chemistry profiles through a 3-Stage+ global charging program with 28.5V absorption and 26.5V float values.
MasterBus, CZone, and NMEA 2000 communication support compatible networked systems. The included temperature sensor enables compensation, while IP23 protection, ignition protection, full electronic protection, and an intelligent variable-speed fan are listed. The charger weighs 15.4 lbs.
Warranty and Support
Warranty information is not included in the listed product data. Review the manufacturer documentation for product details, setup, and warranty coverage.
Before Ordering the Mastervolt ChargeMaster Plus 24/60-3 Marine Battery Charger
Before ordering, confirm that your system uses up to three combined 24V banks, requires up to 60 amps, and accepts 80V to 275V AC input. Review the listed chemistry profiles, network interfaces, IP23 classification, sensor inclusion, installation space, and warranty availability. You should confirm compatibility with your battery manufacturer and vessel electrical system before purchase.
Product Specifications
Mastervolt ChargeMaster Plus 24/60-3
| Brand | Mastervolt |
|---|---|
| SKU | 44320605 |
| Output Current | 60 Amps |
| Isolated Banks | 3 Banks (Combined) |
| DC Voltage | 24V DC |
| Input Voltage | 80-275V AC (Universal) |
| Battery Types | LiFePO4, AGM, Gel, Flooded |
| Algorithm | 3-Stage+ (Global Charging) |
| Absorption/Float | 28.5V / 26.5V |
| Efficiency | 92% |
| IP Rating | IP23 |
| Ignition Protected | Yes |
| Communication | MasterBus, CZone, NMEA 2000 |
| Temp Compensation | Sensor Included |
| Safety Protections | Full Electronic Protection |
| Cooling | Intelligent Vario-Fan |
| Dimensions | 384 x 226 x 143 mm (15.1x8.9x5.6") |
| Weight | 7 kg (15.4 lbs) |
| Certifications | CE, ABYC, UL1236, CSA |
| Application | Multi-Bank 24V Power Systems |
