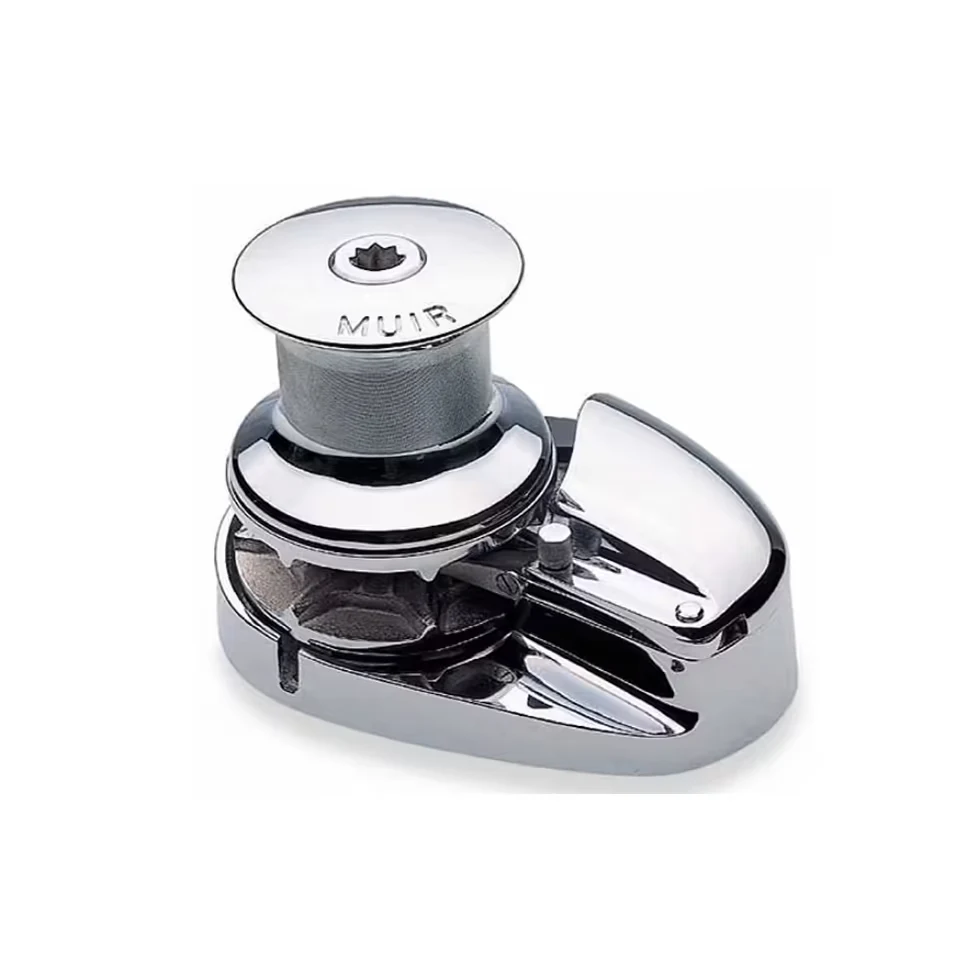

Muir Storm – VRC1250 – 1000W – 12 or 24 V – w/Capstan – 1100 lb Max Load

A vertical gypsy and capstan drum give theMuir Storm VRC1250separate anchor-rode and line-handling functions. The 1,000W motor operates on either 12V or 24V DC and has a stated maximum pull of 1,100 lbs. Its continuous working-load rating is 275 lbs, while polished chrome-plated bronze forms the deck housing and capstan surface.

The gypsy supports 1/4 in, 5/16 in, or 3/8 in chain with 1/2 to 9/16 in rope. A manual friction clutch brake controls the listed release and braking function. The product data identifies an IP66 motor enclosure and a stainless steel shaft.

Which Boats This Windlass Fits

The Storm VRC1250 windlass is recommended for cruisers and sailboats from 28 to 42 ft. Its gypsy supports 1/4 in, 5/16 in, or 3/8 in chain with 1/2 to 9/16 in rope. Buyers should verify the selected chain size and rope diameter before ordering because the gypsy must match the intended rode configuration.

The 1,100 lbs figure represents the listed maximum pull rating. The 275 lbs working-load rating provides the separate continuous hauling value. The continuous figure is the relevant reference for routine anchor retrieval assessment.

Care and Operating Notes

Rinse the housing, gypsy, capstan drum, chain, rope, clutch, and exposed shaft with fresh water after saltwater exposure. Clear salt, sand, mud, and debris from the rope-to-chain transition and clutch area before operation. Inspect chain links, rope condition, clutch movement, capstan surface, visible fasteners, and electrical connections before departure. Follow the manufacturer manual for service procedures, lubricant selection, disassembly, and approved replacement parts.

Warranty and Support

The Storm VRC1250 carries a 3-year limited manufacturer warranty. Coverage follows the manufacturer’s stated warranty terms and may be subject to exclusions, conditions, and registration requirements.

Before Ordering

Confirm whether the boat uses the 12V or 24V configuration, then select the corresponding 100A or 50A circuit breaker. You should match 1/4 in, 5/16 in, or 3/8 in chain with 1/2 to 9/16 in rope, compare the vessel with the 28 to 42 ft application guide, and allow for the 44 lbs unit mass. Consult manufacturer installation documentation for deck thickness, mounting dimensions, and required clearance.
