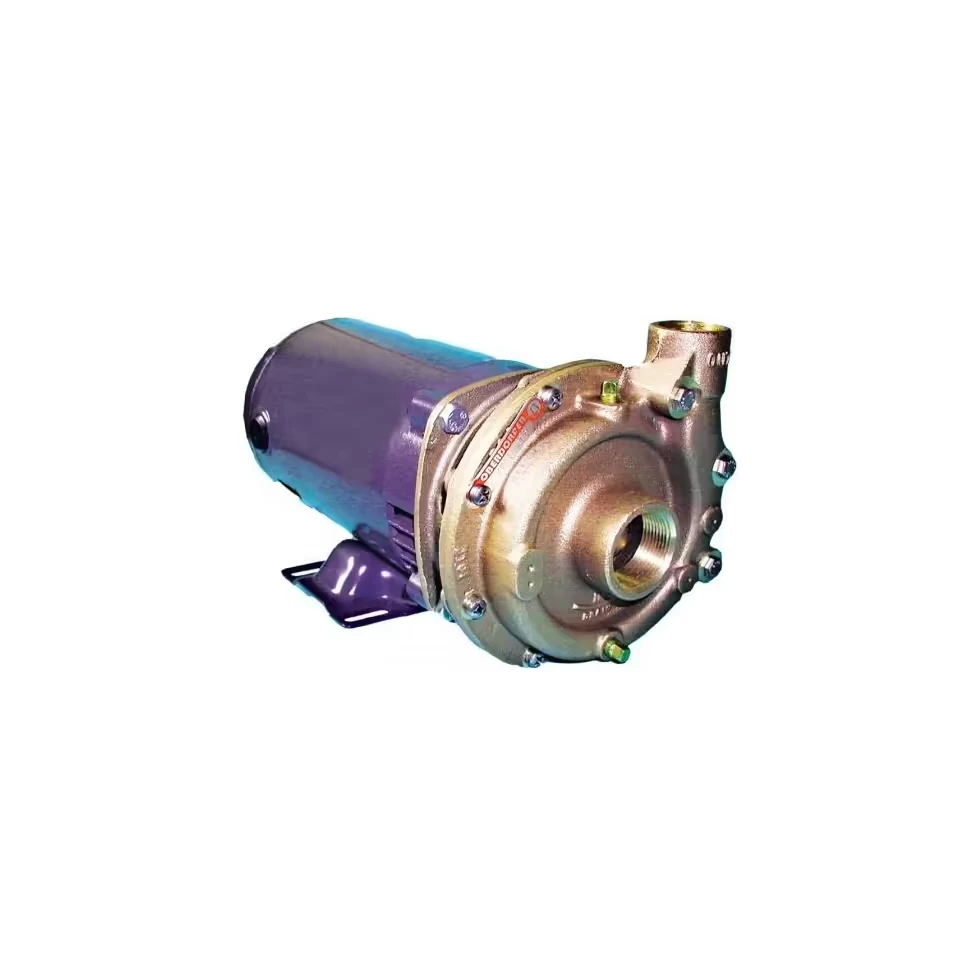

OBERDORFER 109MB-01J26 Centrifugal Pump

Circulating high-temperature marine fluids, the OBERDORFER 109MB-01J26 produces 1020 GPH at 10.3 PSI, combining a 1/3 HP motor with a Viton mechanical seal handling 180°F liquids.

1020 GPH capacity feeds cooling loops.
Viton seal handles 180°F fluid temperatures.
1/3 HP motor delivers strong flow.
Semi-open bronze impeller resists fluid clogging.
24-foot head overcomes piping friction losses.

$665.64

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Pumps Brand: OBERDORFER SKU: OBD-109MB-01J26-V2

Free standard shipping to eligible destinationsSecure checkout

Provide high-head water circulation for marine refrigeration, hot-water circulation, or compatible seawater-transfer systems with the Oberdorfer 109MB-01J26 Centrifugal Pump. This high-pressure horizontal close-coupled centrifugal pump provides a maximum rated flow of 1,020 GPH (17 GPM / 64.3 LPM), maximum head of 24 ft (7.3 m), and maximum pressure of 10.3 PSI.

Oberdorfer model 109MB-01J26 uses a 1/3 HP (0.25 kW) 3,450 RPM motor with a J56 mounting-frame adapter. It operates on 115V AC, 60 Hz single-phase power and features a heavy cast-bronze body, semi-open bronze impeller, industrial Viton mechanical face seal, and 1/2-inch NPT suction and discharge ports. Maximum liquid temperature is 180 degrees F (82 degrees C).

Before Ordering

Verify Oberdorfer model 109MB-01J26, high-pressure horizontal close-coupled configuration, 1/3 HP 3,450 RPM motor, J56 mounting-frame adapter, 115V AC 60 Hz single-phase power, 1,020 GPH maximum flow, 24 ft maximum head, 10.3 PSI maximum pressure, cast-bronze body, semi-open bronze impeller, Viton mechanical face seal, 1/2-inch NPT suction and discharge ports, 180 degrees F maximum liquid temperature, 260 x 160 x 160 mm dimensions, 16 lb dry weight, and 1-year limited manufacturer warranty before purchase.
