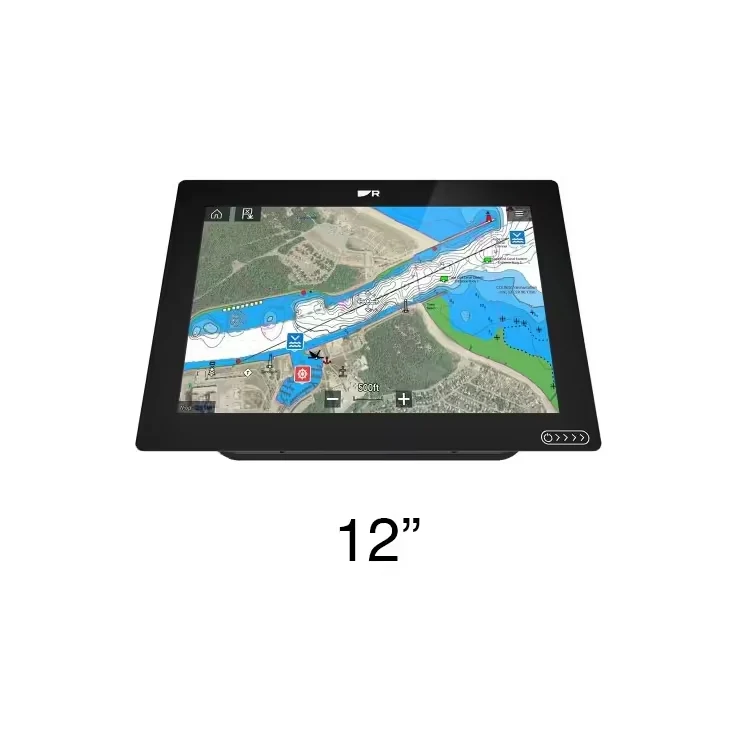

Raymarine Axiom+ 12 – 12-Inch MFD Chartplotter

The Raymarine Axiom+ 12 is a 12.1-inch multifunction chartplotter with built-in GPS/GNSS, quad-core processing, touchscreen operation, and wireless connectivity. It is a chartplotter-first display that supports navigation and integration with compatible radar, AIS, Evolution autopilots, engine data, cameras, and other connected marine electronics. The Axiom+ 12 does not include built-in sonar hardware, so sonar operation requires a separately selected compatible external sonar module and transducer.

The display provides one RayNet Ethernet port, NMEA 2000 DeviceNet connectivity, Wi-Fi, Bluetooth, and one rear microSD card slot. Charts must be selected separately, and supported chart coverage depends on the chosen LightHouse chart product and region. Confirm the selected sonar module, transducer, radar, chart product, adapters, and network topology before purchase.

System Integration

The Axiom+ 12 requires separately selected charts for chartplotter use. Chart coverage, premium features, update availability, and subscription requirements depend on the selected LightHouse chart product and region. It can integrate with compatible radar, AIS, autopilot, camera, engine-data, and networked-display systems through RayNet, SeaTalkng/NMEA 2000, Wi-Fi, and required adapters.

This model requires a compatible external sonar module and transducer for depth and fish-finding functions. Select the sonar module and transducer according to desired sonar technology, hull material, deadrise, mounting location, operating depth, vessel speed, and network compatibility. Electronic navigation aids do not replace official charts, local notices, safe navigation practices, or a proper lookout.

Before Ordering

Confirm required display size, LightHouse chart product and region, external sonar-module and transducer requirements, hull and transducer mounting method, GPS requirement, RayNet and NMEA 2000 network layout, radar or autopilot integration needs, available 8V to 16V supply, 314 mm by 217 mm mounting space, rear clearance, microSD chart-card needs, and complete installation requirements before purchase.
