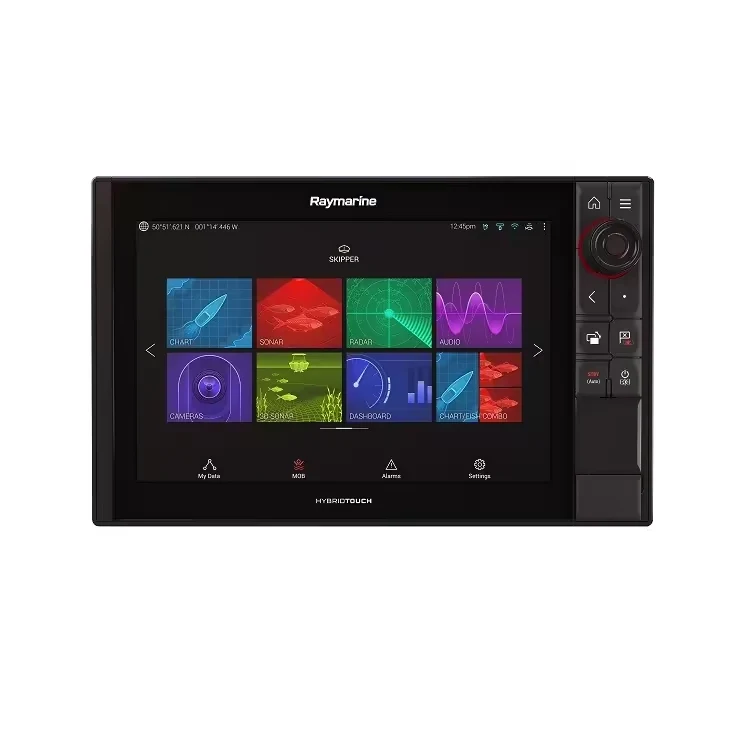

Raymarine Axiom Pro MFD – 9, 12, 16-Inch Chartplotter & Sonar

The Raymarine Axiom Pro range gives a boat owner a choice of 9-, 12.1-, and 15.6-inch chartplotter and sonar displays, all built around HybridTouch control. That means touchscreen speed when the sea is calm and physical keypad control when spray, gloves, or boat movement make tapping a screen awkward. It suits coastal fishing boats, cruisers, and offshore helms that want one Raymarine platform to grow with the boat.

The 1kW dual-channel CHIRP sounder supports 50/200kHz and High CHIRP, while RealVision 3D, SideVision, and DownScan provide structure views with compatible transducers. Built-in 10Hz GNSS helps keep position updates responsive, and LightHouse, Navionics, and C-MAP support gives charting flexibility. The 9-inch model uses 1280 x 720 resolution, while the 16-inch version reaches 1920 x 1080. Transducer selection matters because the 25-pin RealVision and 11-pin 1kW connections determine the sonar features available.

Who Is This For?

This Raymarine chartplotter and sonar range suits coastal fishing boats, cruisers, sailboats, and offshore vessels. It is not ideal to choose by screen size alone; the transducer and Axiom Pro version determine which sonar modes are available.

Warranty & Support

Raymarine provides a 3-year warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom Pro range is the flexible Raymarine choice when the boat needs both charting and advanced sonar. The 9-inch model fits tighter helms, the 12.1-inch version balances screen space and installation, and the 15.6-inch model suits larger boats. The trade-off is the need to match the transducer and sonar ports carefully. Choose the size first, then build the sonar package around the hull.
