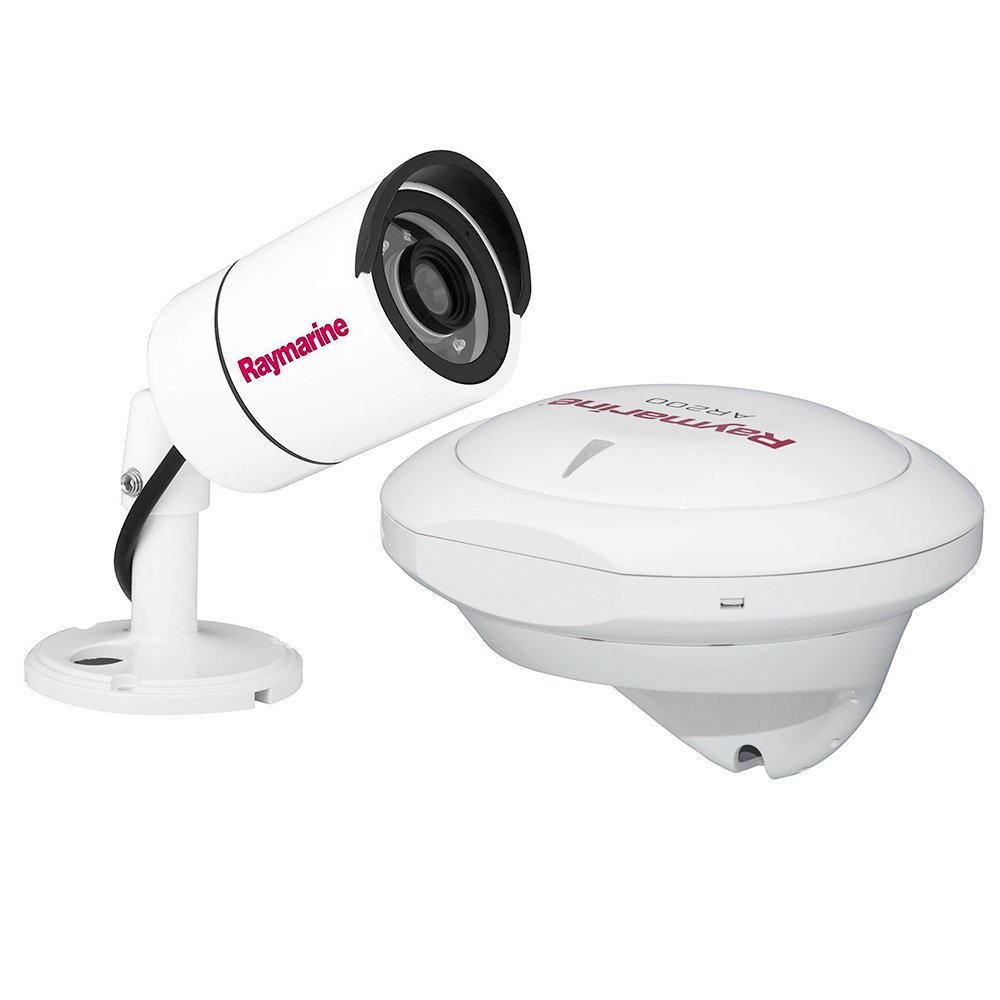

Raymarine CAM210 Augmented Reality Pack w/AR200 & CAM210
Overlaying AIS targets and navigation waypoints onto video, the Raymarine CAM210 AR camera pairs an IP67 bullet camera with an AR200 10Hz multi-GNSS AHRS sensor across SeaTalkng networks at 2.65 lbs.
- AR200 module overlays 10Hz augmented reality
- 1080p camera clarifies navigation fairway markers
- Infrared LEDs illuminate targets to 20m
- IP67 weatherproof housing survives deck washdowns
$859.74
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add stabilized video and navigation overlays to a compatible Raymarine Axiom display with the CAM210 Augmented Reality Pack. The kit pairs a CAM210 HD IP camera with the AR200 GPS/AHRS sensor, allowing ClearCruise augmented-reality graphics to align compatible AIS targets, waypoints, and navigation objects over the live video view. Want a more intuitive way to relate chart data to what is ahead of the boat? This package combines Full HD camera video, 10 Hz position-and-attitude data, RayNet networking, and infrared night illumination for a connected Raymarine helm.
Integration
ClearCruise AR requires a compatible Raymarine Axiom, Axiom Pro, or Axiom XL display running suitable LightHouse software, the AR200 sensor, a compatible IP camera, and compatible vector charts. AIS overlays require an AIS receiver or transceiver connected to the system. The camera and AR200 sensor do not replace a chartplotter, radar, AIS receiver, or navigation instruments.
Raymarine specifies that the AR200 supplies GPS position, compass heading, pitch, and roll data to Axiom displays and enables stabilized augmented-reality video when paired with a compatible marine camera. [856] Overlay positions and camera alignment depend on correct installation, calibrated heading, reliable GNSS reception, current charts, and properly configured AIS data.
Before Ordering
Confirm Axiom-family MFD compatibility and software, supported vector charts, AIS data availability, RayNet/SeaTalkng network capacity, PoE needs, camera and AR200 mounting locations, GNSS sky view, heading-calibration process, and required cables or adapters before ordering.
Product Specifications
Raymarine CAM210 Augmented Reality Pack w/AR200 & CAM210
| Brand | Raymarine |
|---|---|
| Full Model SKU / Code | E70537 |
| Device Type | Marine Augmented Reality Camera & Sensor Kit (CAM210 + AR200) |
| Display Size | N/A (Connects to Raymarine Axiom MFD Displays) |
| Display Resolution | 1920 x 1080 pixels (1080p High Definition) |
| Display Type | N/A |
| GPS Receiver / GNSS | Included AR200 Module features Multi-GNSS Receiver (GPS, GLONASS, Galileo, BeiDou) |
| Receiver Update Rate | 10 Hz |
| Position Accuracy | < 2.5 m RMS (SBAS enabled) |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | RayNet Ethernet / NMEA 2000 / SeaTalkng |
| Wireless Connectivity | None |
| Sonar Specifications | HD Video Bullet Camera with Infrared Night Vision LEDs (up to 20m range) and AR200 AHRS Stabilizer Sensor |
| Waterproof Rating | IP67 (Camera Enclosure) / IPX6 (AR200 Module) |
| Operating Voltage Range | 12 / 24 V DC (Power over Ethernet - PoE supported) |
| Power Consumption | Max 5.0 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Dimensions (ø x L) | 167 x 84 x 84 mm (6.5 x 3.3 x 3.3 in) |
| Dry Weight | 1.2 kg (2.65 lbs) |
| Mounting Options | Adjustable Surface / Deck Mount Bracket & AR200 Pole/Surface Mount |
