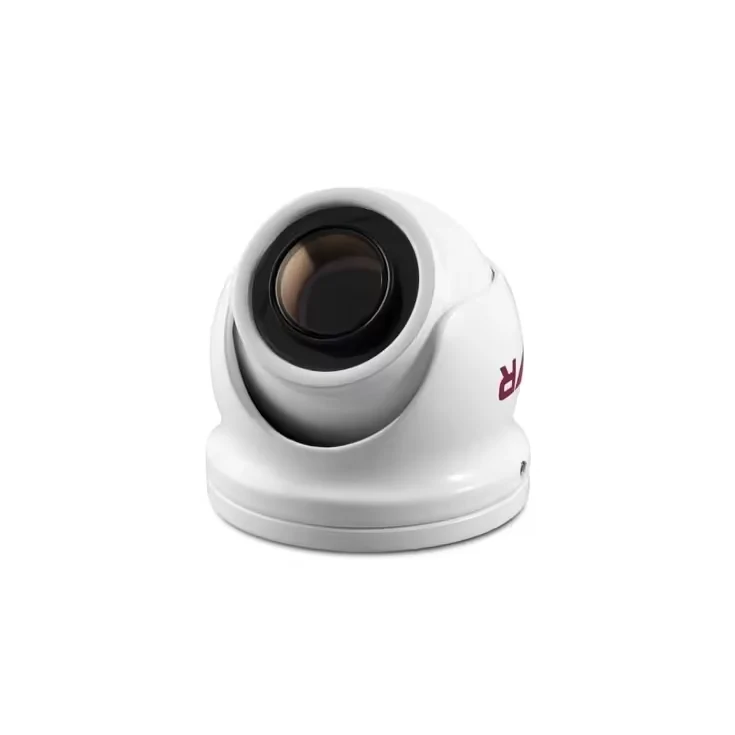

Raymarine CAM300 – Eyeball CCTV Day & Night IP Camera
Discreetly monitoring yacht cabins and cockpits across an ultra-wide 160-degree diagonal angle, this Raymarine CAM300 eyeball camera streams 1080p HD video with 10-meter infrared night vision, drawing under 3.5 Watts at 0.28 lbs.
- 1080p HD sensor captures crisp imagery
- 160-degree diagonal angle eliminates blind spots
- Infrared LEDs illuminate night cabins to 10m
- IP66 weatherproof casing resists driving spray
$498.80
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Add a compact adjustable day-and-night camera view to a compatible Raymarine Axiom system with the Raymarine CAM300 Eyeball CCTV Camera. Its 1080p IP video, 110° horizontal viewing angle, and integrated infrared illumination provide broad coverage for a cockpit, boarding area, engine-room entrance, or dockside view. Need a smaller camera that can be manually aimed during installation? The CAM300 uses a low-profile eyeball housing, H.264 network video, ONVIF Profile S support, and 12V DC or compatible PoE power.
Integration
The CAM300 requires a compatible Raymarine Axiom MFD, monitor, NVR, or network-video viewer. It is not a chartplotter, radar, GPS receiver, thermal camera, or wireless device. Confirm RayNet/Ethernet connection requirements, ONVIF compatibility, camera power method, IP addressing, and display support before installation.
Infrared illumination can improve nearby viewing in darkness, but usable range depends on surface reflectivity, fog, rain, spray, glare, lens condition, camera position, and ambient light. It supports observation but does not provide automatic hazard detection or replace radar, navigation lights, charts, or visual lookout.
Before Ordering
Confirm Axiom/MFD video compatibility, RayNet/Ethernet availability, PoE or 12V power method, 110° coverage needs, mounting location, camera-angle requirements, cable route, and required network adapters before ordering.
Product Specifications
Product Specifications
| Camera Type | IP Eyeball CCTV (Compact) |
|---|---|
| Thermal Sensor Resolution | N/A |
| Optical Sensor Resolution | HD 1080p (1920 x 1080) |
| Field of View (FOV) | 110° (Horizontal) / 160° (Diagonal) |
| Video Output | IP Stream (H.264) |
| Zoom Capability | No |
| Detection Range (Human) | N/A |
| Detection Range (Vessel) | Optical Horizon |
| Image Stabilization | No |
| Pan/Tilt Range | Fixed (Manual Rotation during Install) |
| Color Palettes (Thermal) | N/A |
| Low Light Sensitivity | 0 Lux (IR LED On) |
| Night Vision Range | ~33 ft (10 m) |
| NMEA 2000 / ONVIF | Yes (ONVIF Profile S) |
| Operating Voltage | 12V DC |
| Power Consumption | < 3.5 Watts |
| Housing Material | Anodized Aluminum Base / Polycarbonate |
| Waterproof Rating | IP66 |
| Impact Resistance | N/A |
| Dimensions (WxHxD) | 59.5 x 53 mm (Diameter) |
| Weight | 0.13 kg (0.28 lbs) |
| Warranty | 2 Years |
