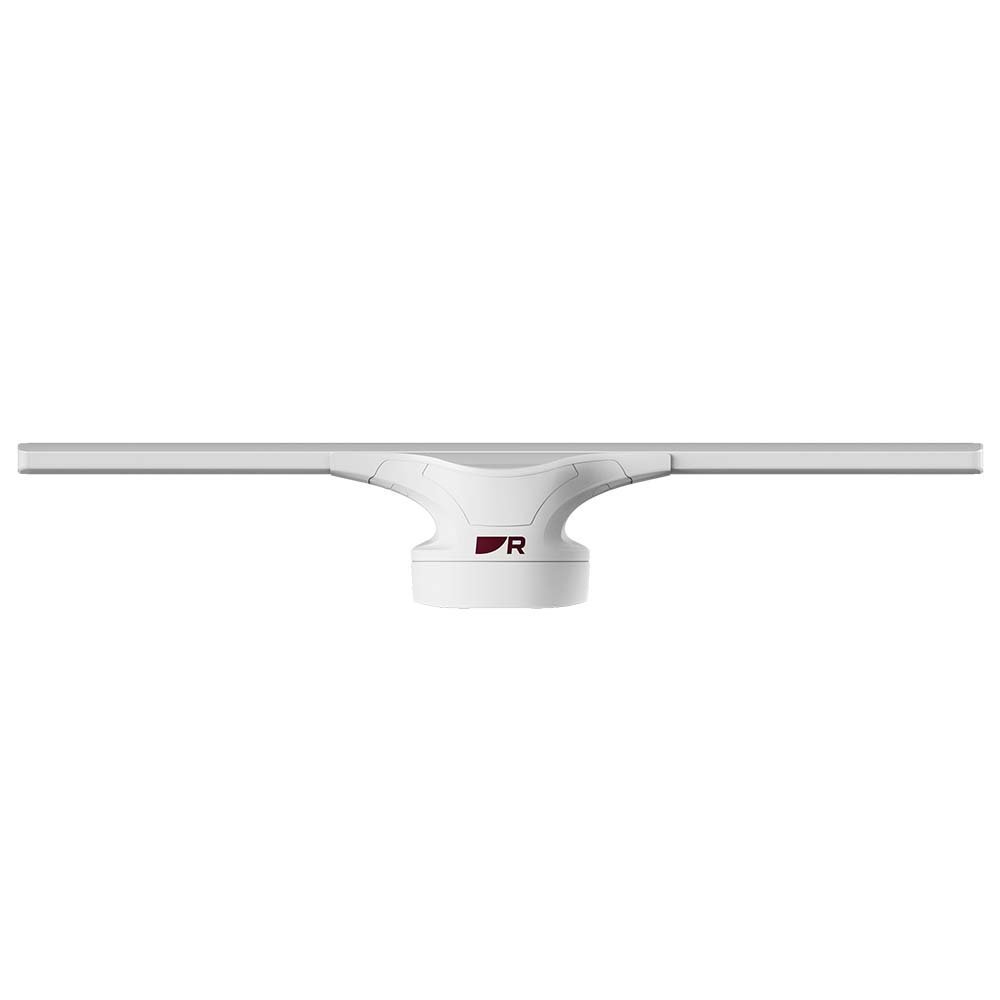

Raymarine Cyclone Pro Radar w/6 Open Array & 15M Cables
Penetrating dense ocean squalls across 96 nautical miles, the Raymarine Cyclone Pro radar pairs a 6-foot open array with 110W solid-state pulse compression, tracking 50 ARPA targets over a 1.32-degree beamwidth at 71.8 lbs.
- 110W pulse compression scans 96 nautical miles
- 1.32-degree beamwidth maximizes long-range resolution
- Doppler Target Analyzer color-codes vessel hazards
- 100 RPM rotation speed tracks fast targets
- Bird Mode locates distant feeding seabirds
$6,271.12
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Raymarine Cyclone Pro Radar with 6 Foot Open Array and 15 m Cables, is a high-power solid-state CHIRP pulse-compression marine radar system with a six-foot rotating antenna array. It combines a 110W Cyclone Pro pedestal, six-foot open-array radiator, and 15 m radar cable package for compatible Raymarine multifunction displays using RayNet Ethernet. The system supports Doppler target highlighting, Bird Mode, ARPA tracking, and high-speed rotation up to 100 RPM.
The 6 ft array provides a narrow horizontal beamwidth for improved angular target separation, while the Cyclone Pro platform offers a maximum instrumented range of up to 96 NM. ARPA can track up to 50 targets when paired with compatible heading, position, display, and network sources. Practical target detection range and tracking performance depend on mounting height, target size, radar settings, sea state, weather, and installation conditions.
Radar Integration
This radar requires a compatible Raymarine multifunction display and RayNet Ethernet connection for radar-video display and control. NMEA 2000 or SeaTalkng can provide compatible heading, GPS, AIS, autopilot, and other sensor data, but radar video does not travel over NMEA 2000. ARPA and radar overlay require compatible heading and position sources where applicable.
Doppler processing can help highlight moving targets, and Bird Mode can assist with bird detection, subject to radar configuration, scanner mounting, weather, sea conditions, target movement, and local operating environment. Radar is a navigation aid and does not replace a proper lookout, safe speed, official charts, local notices, or collision-regulation compliance.
Before Ordering
Confirm compatible Raymarine MFD support, RayNet Ethernet connection, suitability of the included 15 m cable run, 10.2V to 31.2V power supply, maximum 195W electrical capacity, six-foot open-array rotation clearance, structural mounting-platform strength, mounting height, personnel and compass-safe-distance requirements, heading and GPS source for ARPA or overlay, optional AIS integration, and qualified installation requirements before purchase.
Product Specifications
Product Specifications
| Brand | Raymarine |
|---|---|
| Model Name | Cyclone Pro Solid State Open Array |
| Part Number/SKU | T70492 |
| Technology Category | High-Power Solid State Pulse Compression |
| Radar Type | 6ft Open Array |
| Peak Power Output | 110 Watts (Equivalent to 12kW Magnetron) |
| Horizontal Beamwidth | 1.32° |
| Max Range | 96 Nautical Miles |
| Rotation Speed | Up to 100 RPM |
| Target Tracking | Doppler Target Analyzer, ARPA (50 targets), Bird Mode |
| Networking Ports | 1x RayNet Port |
| Voltage Input | 10.2V - 31.2V DC |
| Power Draw | 95W (Max) |
| Waterproofing | IPX6 |
| Weight | Pedestal: 56.4 lbs; Array: 15.4 lbs |
| Country of Origin | Hungary |
| Standard Warranty | 2-Year Standard (3-Year with Registration) |
