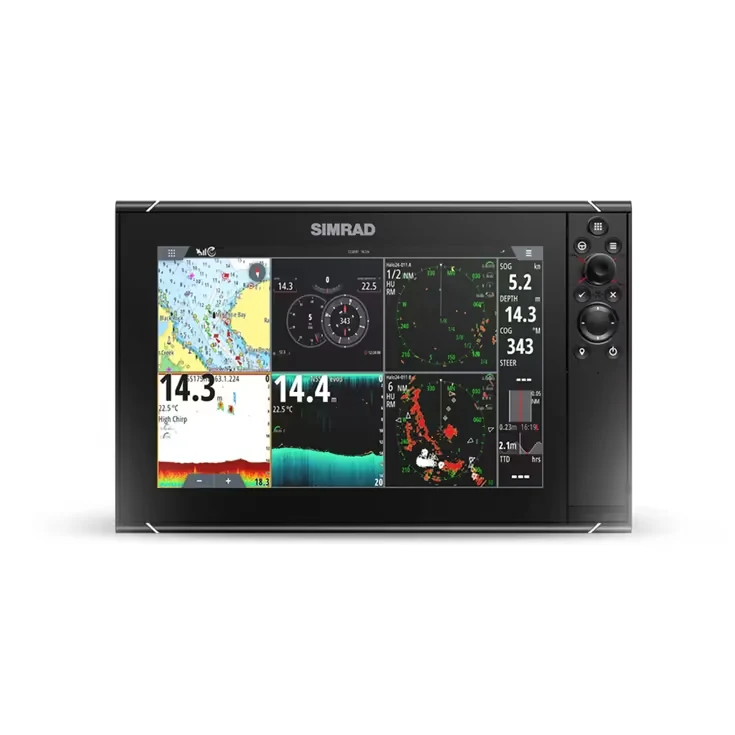

Simrad NSS16 evo3S 16″ MFD Chartplotter Fishfinder
The Simrad NSS16 evo3S 16-inch MFD combines chartplotter and fishfinder functions on a large marine display for helm integration.
- 16-inch display supports split views.
- MFD combines chartplotter and fishfinder.
- evo3S marks the series.
- Larger screen suits helm consoles.
- Simrad branding marks the system.
$4,644.00
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Simrad NSS16 evo3S is a 16-inch MFD for a helm where charts, radar, sonar, and engine pages need to remain visible together. Its SolarMAX HD IPS screen combines touchscreen and keypad control, which is useful when the boat is moving and wet hands make touch-only operation awkward. This is a chartplotter and fishfinder platform for serious offshore boats, not a small-console unit.
The 1920 x 1080 display provides a clear Full HD workspace, while dual-channel 1kW sonar supports high-power fishfinding through the connected transducer system. Active Imaging HD, StructureScan 3D, and SideScan/DownScan provide several sonar paths, and ActiveTarget, ActiveTarget 2, and LiveScope modules allow future expansion. NMEA 2000, NMEA 0183, J1939, Ethernet, WiFi, Bluetooth, and FLIR radar control make it suitable for a connected vessel system.
Who Is This For?
This 16-inch Simrad chartplotter fishfinder suits offshore center consoles, commercial yachts, sportfishers, and multi-display flybridges. It is not ideal for a compact boat or a buyer wanting a simple standalone sounder; compatible transducers and network modules are part of the installation.
Warranty & Support
The supplied specifications do not state a warranty term. Confirm current Simrad warranty coverage before purchase.
The NSS16 evo3S is the large-screen Simrad choice for a serious fishing or offshore helm. Its strengths are the dual 1kW sonar engine, broad scanning options, and physical keypad alongside touch. The trade-off is installation size and system complexity, so it belongs on a larger boat with a proper network and transducer plan.
Product Specifications
Product Specifications
| Brand | Simrad |
|---|---|
| Full Model SKU/Code | 000-15404-001 (NSS16 evo3S Base) |
| Country of Origin | Mexico |
| Component Type | Fishfinder / GPS Chartplotter Flagship Multi-Function Display (MFD) |
| Display Technology & Resolution | SolarMAX HD IPS High-Bright Display with Touchscreen & Keypad Control / 1920 x 1080 |
| Screen Size | 16.0" Diagonal Window Display Surface |
| Sonar Power Rating / Output Power | 1000 Watts RMS per Channel (True Dual-Channel Independent 1kW Engine) |
| Traditional CHIRP Frequencies | 50/83/200 kHz (Low, Medium, and High Single/Dual Channel Configurations) |
| Scanning Sonar Technologies | Built-In Active Imaging HD, StructureScan 3D, and SideScan/DownScan Edge Imaging |
| Scanning Sonar Frequencies | 455 kHz, 800 kHz, and CHIRP Down/Side high-definition frequencies |
| Live Sonar Compatibility | ActiveTarget, ActiveTarget 2, and LiveScope Network Module Compatibility |
| Maximum Depth Capacity | 1524 m / 5000 ft Traditional (Dependent on High-Output Thru-Hull Array Selections) |
| Operating Voltage | 10 to 31.2 Volts DC Universal Rail Interface |
| Data Networking Protocols | Simrad Marine Ethernet Ports, NMEA 2000, NMEA 0183, J1939 Engine Can Bus, FLIR Radar Control Interface |
| Waterproof Rating | IPX6 and IPX7 Extreme Deck Front Panel Surface Armor |
| Maximum Current Draw | 3.0 Amps at 12V DC Input Loop (Max System Power Rating: 36W) |
| Dry Weight | 4.65 kg / 10.25 lbs |
| Application | Premium offshore fiberglass center consoles, commercial blue-water yachts, deep-sea sportfishers, and multi-display flybridge dashboards (28-65+ ft hulls) |
