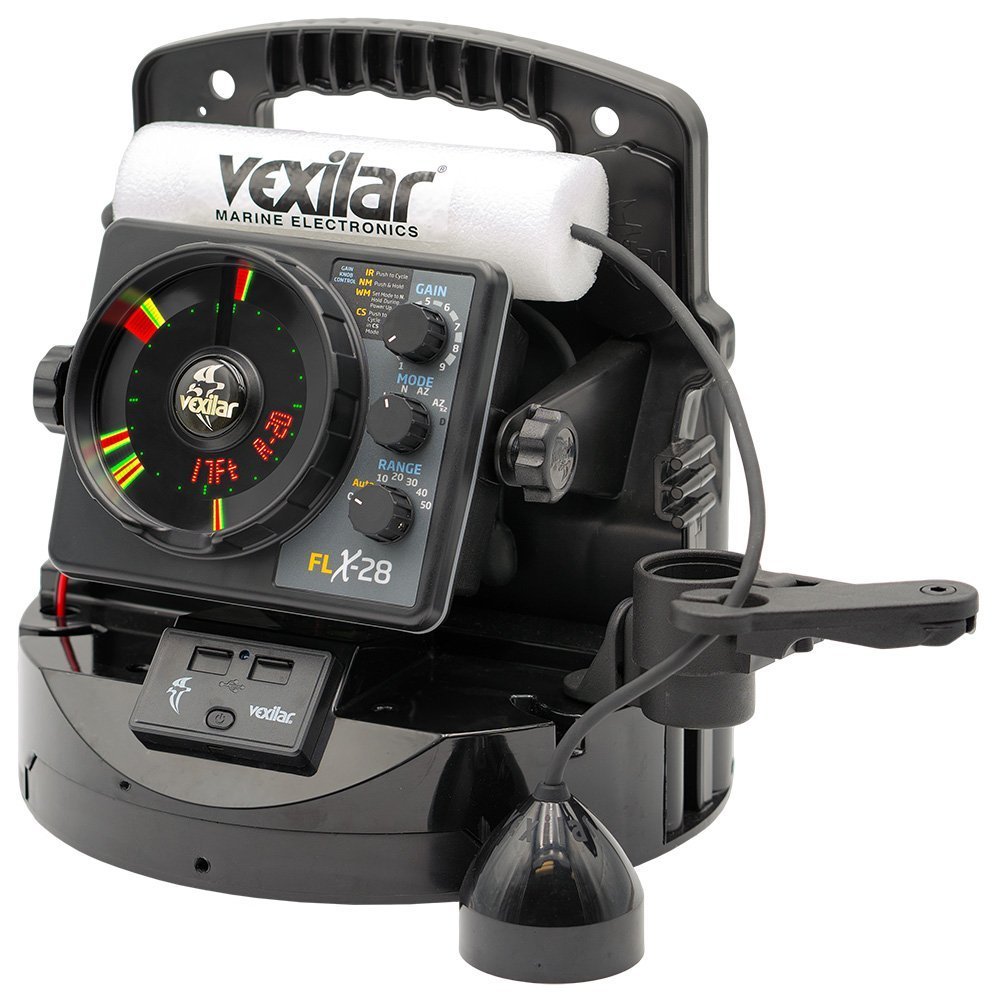

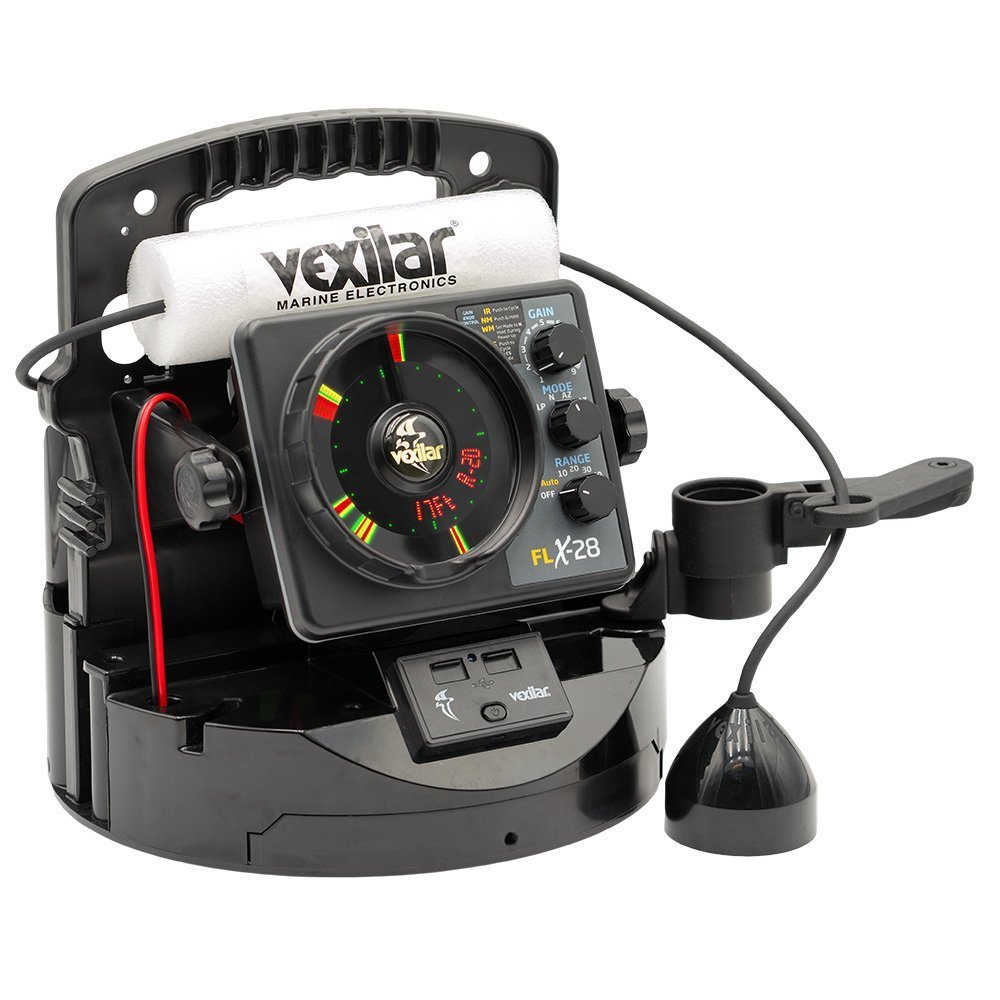

Vexilar FLX-28 Pro Pack Elite Fishing System w/Pro View Ice-Ducer & Vexilar Lithium Battery
Separating schooling panfish from bottom structure, a Vexilar FLX-28 sonar locator runs a 9-degree Pro-View Ice-Ducer on a 525-segment 5-color LED screen, powered by a 12V 9Ah lithium battery in a soft-pack case at 8.5 lbs.
- 9-degree Pro-View transducer narrows target focus
- 5-color LED screen displays digital depth
- Pro Pack Elite case cushions transport
The Vexilar FLX-28 Pro Pack Elite, model PPEL28PVLI, is a portable ice-fishing flasher system for real-time vertical sonar beneath the ice. It combines the FLX-28 five-color LED flasher, 200 kHz nine-degree Pro-View Ice-Ducer, Pro Pack Elite carrier, 12V 9Ah lithium battery, and one-amp charger. This is a sonar-only fishing system and does not include GPS, maps, waypoint storage, chartplotter functions, NMEA networking, or wireless connectivity.
The FLX-28 provides digital depth, Auto Range, two zoom zones, five display palettes, low-power mode, weed mode, adjustable gain, 20 interference-rejection settings, and a stated maximum depth range of 300 ft. The narrow nine-degree Pro-View beam is suited to anglers who want more focused coverage below the ice. Target identification of less than one-quarter inch depends on depth, gain, interference, bottom conditions, and transducer alignment.
System Integration
The FLX-28 Pro Pack Elite is a self-contained portable flasher system and does not require a chartplotter, GPS antenna, NMEA 2000 network, external sonar module, or separate transducer. The supplied Pro-View Ice-Ducer is designed for vertical sonar use through an ice hole.
Use the gain, depth range, Auto Range, zoom, low-power mode, and interference-rejection settings according to water depth, lure position, bottom type, nearby sonar activity, and target separation needs. This device does not provide location, mapping, route, or waypoint functions.
Before Ordering
Confirm that a portable non-GPS flasher meets your fishing requirements, verify the included 200 kHz nine-degree Pro-View Ice-Ducer, 300 ft depth range, lithium battery and charger needs, zoom and interference-rejection requirements, carrier style, local lithium-battery shipping restrictions, and appropriate charging, transport, and storage arrangements before purchase.
Product Specifications
Vexilar FLX-28 Pro Pack Elite Fishing System w/Pro View Ice-Ducer & Vexilar Lithium Battery
| Brand | Vexilar |
|---|---|
| Full Model SKU / Code | PPEL28PVLI |
| Device Type | Digital Ice Fishing Flasher / Fish Finder System |
| Display Size | Super-Bright 5-Color LED Display |
| Display Resolution | 525 Segments |
| Display Type | 5-Color LED Display with 5 Color Palettes & Digital Depth Readout |
| GPS Receiver / GNSS | N/A (Non-GPS Flasher Unit) |
| Receiver Update Rate | Real-Time Sonar Output |
| Position Accuracy | N/A |
| Preloaded Maps / Charts | N/A |
| Chart Compatibility | N/A |
| Waypoints / Routes / Track Log | N/A |
| NMEA Network Compatibility | None |
| Wireless Connectivity | None |
| Sonar Specifications | 200 kHz Pro-View Ice-Ducer (9° Beam Angle), 400W Peak-to-Peak Output, 300 ft Maximum Depth Range, Target ID < 1/4 in |
| Waterproof Rating | Weather Resistant Enclosure |
| Operating Voltage Range | 12 V DC |
| Power Consumption | 260 mA @ 12V DC (Powered by 12V 9Ah Lithium Battery) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dimensions (L x W x H) | 279 x 279 x 279 mm (11.0 x 11.0 x 11.0 in) |
| Dry Weight | 3.86 kg (8.5 lbs) |
| Mounting Options | Pro Pack Elite Carrier Base with Soft Case & Gimbal Mount |
