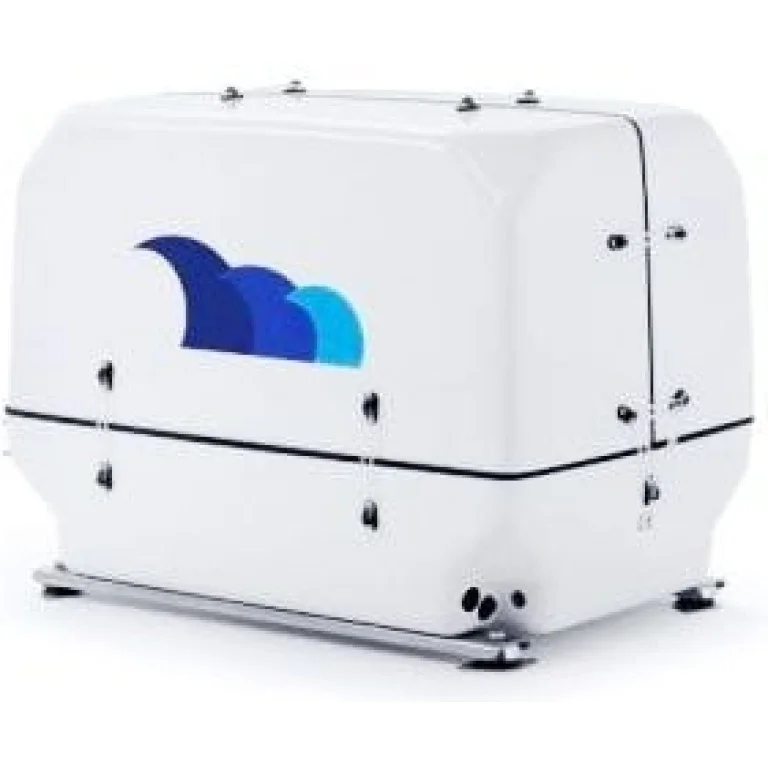

VTE Paguro 14000 – 14kW Marine Generator 3600 RPM
Mid-size motor cruisers power onboard galley appliances with this VTE Paguro 14000 digital generator, delivering 12.0 kW at 120V/240V from a 1028cc 3-cylinder Lombardini diesel, burning 3.0 L/h at 53 dBA across 180 kg.
- 12.0 kW output powers large vessel electrical grids
- 53 dBA sound enclosure maintains quiet vessel bilges
- Three-cylinder FOCS engine delivers smooth electrical generation
- Remote digital control panel displays real-time diagnostics
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The VTE Paguro 14000 is a high-speed marine diesel generator for 60Hz AC systems. In its 60Hz configuration, the Paguro 14000 uses a Lombardini LDW 1003 three-cylinder diesel engine operating at 3,600 RPM and can deliver up to 14 kW continuous output. Generator voltage and phase vary with the ordered alternator configuration, so confirm whether the vessel requires 120V single-phase, 240V single-phase, 480V three-phase, or another available configuration.
The generator uses a water-cooled synchronous alternator, freshwater heat-exchanger cooling, and a self-priming raw-water pump. It is supplied in a soundproof fiberglass capsule with a remote LCD control system that provides operating data, load indication, automatic start, and low-oil-pressure plus over-temperature protection. Proper marine installation and output configuration verification are essential before purchase.
Before Ordering
Confirm required continuous and surge load within the selected 14 kW configuration, exact voltage, phase, and 60Hz frequency requirement, available 860 mm by 580 mm by 650 mm installation space, structural support for approximately 210 kg, diesel fuel-system layout, raw-water intake, exhaust route, ventilation capacity, starting-battery circuit, remote-panel cable route, AC distribution and transfer-switch design, grounding plan, service access, and qualified marine-generator installation requirements before purchase.
Product Specifications
VTE Paguro 14000 - 14kW Marine Generator 3600 RPM
| Brand | VTE Paguro |
|---|---|
| Full Model SKU / Code | Paguro 14000 |
| Generator Type | High-Speed Marine Diesel Generator (60Hz Specification) |
| Continuous Power Output | 12.0 kW / 14.0 kVA |
| Voltage Output | 120 V / 240 V (Single Phase) |
| Frequency Output | 60 Hz |
| Engine Operating Speed | 3600 RPM |
| Engine Manufacturer & Model | Lombardini LDW 1003 FOCS Diesel Engine |
| Number of Cylinders | 3 Cylinders |
| Displacement | 1028 cc |
| Cooling System Type | Heat Exchanger Closed Loop Fresh Water Cooling |
| Cooling Pump Type | Water-Cooled Alternator & Engine Shell with Seawater Impeller Pump |
| Fuel Type | Marine Diesel |
| Fuel Consumption (Average) | 3.0 L/h @ 75% load |
| Sound Insulation Enclosure | Fiberglass Composite Soundproof Capsule |
| Noise Level | 53 dB(A) @ 7m |
| Dimensions with Sound Shield (L x W x H) | 770 x 460 x 620 mm |
| Dry Weight | 180 kg |
| Control Panel | Remote Multi-Function Digital Control Panel |
| Safety Protection Systems | Low Oil Pressure Shutdown, Over-Temperature Cut-Off, Electrical Overload Safety |
