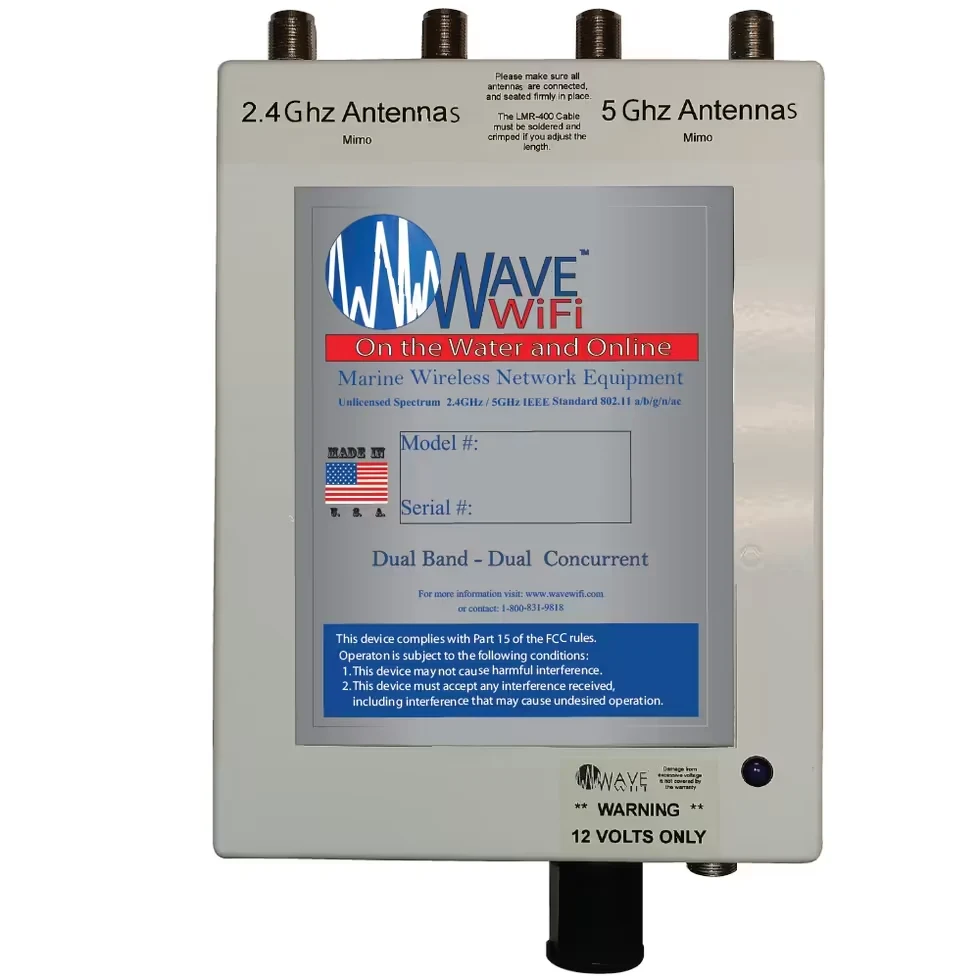

Wave WiFi EC HP Dual-Band – AC
Delivering 867 Mbps transmission speeds with a 1000mW amplifier, the Wave WiFi EC-HP-DB-AC high speed yacht internet bridge connects dual-band 2.4GHz and 5GHz networks across rugged IP67 marine polymer housings.
- 1000mW output extends shoreside signal reception.
- 867 Mbps speeds support media streaming.
- Dual-band wireless manages high data traffic.
- IP67 alloy base blocks salt corrosion.
- 12V PoE power draws 15W maximum.
$1,236.75
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Build a dual-band Wi-Fi bridge with the Wave WiFi EC HP Dual-Band – AC. This high-power marine Wi-Fi unit is specified for yachts and commercial vessels using a long-range Wi-Fi bridge application, with dual-band Wi-Fi 5 802.11ac support across 2.4 GHz and 5 GHz.
Wave WiFi part number WIFI-EC-HP-DB-AC operates on 12V DC through Power over Ethernet and has a 1,000 mW transmitter rating. It provides listed maximum transmission speeds of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, uses an external N-type female antenna connection, and includes a PoE injector, dual-band antenna, and 25 ft cable.
Before Ordering the Wave WiFi EC HP Dual-Band AC
Verify that Wave WiFi part number WIFI-EC-HP-DB-AC matches your yacht or commercial-vessel Wi-Fi bridge installation. Confirm the dual-band Wi-Fi 5 802.11ac support, 2.4 GHz and 5 GHz bands, 1,000 mW transmitter power, 867 Mbps maximum 5 GHz speed, 300 Mbps maximum 2.4 GHz speed, 12V DC PoE operation, 15W maximum power consumption, external N-type female connector, marine-grade polymer and alloy-base construction, IP67 external-unit rating, -22 degrees F to 167 degrees F operating-temperature range, included PoE injector, included dual-band antenna, included 25 ft cable, and 1-year warranty. Confirm compatibility with your router, modem, antenna system, vessel network, and manufacturer documentation before purchase.
Product Specifications
Wave WiFi EC HP Dual-Band AC Specs
| Brand | Wave WiFi |
|---|---|
| Model Series | EC-HP Series (Dual Band) |
| Manufacturer Part Number (MPN) | WIFI-EC-HP-DB-AC |
| Network Compatibility | Dual Band Wi-Fi 5 (802.11ac) 2.4/5GHz |
| Transmitter Power | 1000mW (High Power) |
| Max Transmission Speed | 867 Mbps (5GHz) / 300 Mbps (2.4GHz) |
| Voltage Input | 12V DC via PoE (Power over Ethernet) |
| Power Consumption | Max 15W |
| Connector Type | N-Type Female (External) |
| Main Body Material | Marine Grade Polymer / Alloy Base |
| IP Rating | IP67 (External Unit) |
| Operating Temperature | -30°C to 75°C |
| Standard Accessories Included | PoE Injector, Dual-Band Antenna, 25ft Cable |
| Standard Warranty | 1 Year |
| Application/Vessel Range | Yachts & Commercial (Long Range Wi-Fi Bridge) |
