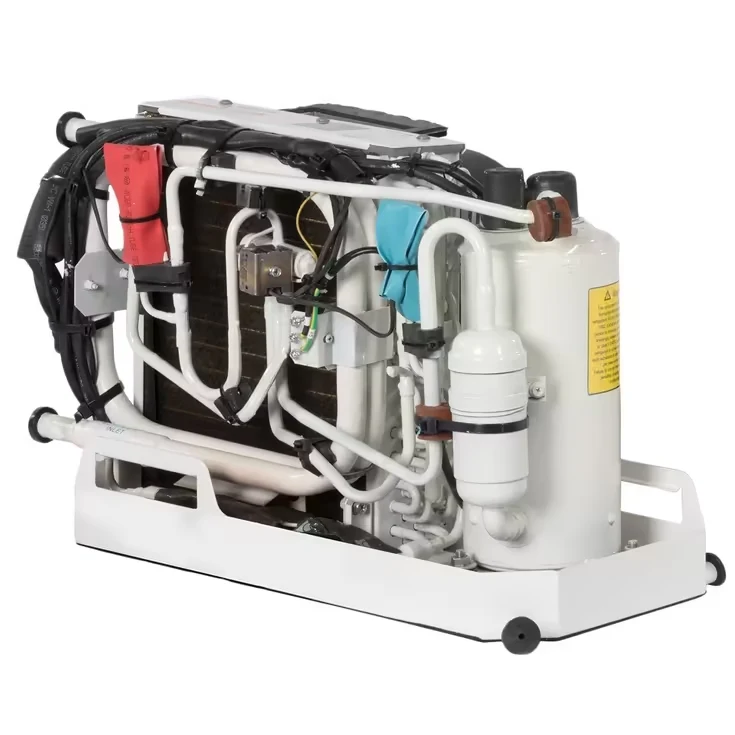

Webasto FCF Platinum 12000 BTU 230V Boat A/C Unit
The Webasto FCF Platinum boat A/C unit provides 12,000 BTU cooling capacity from 230V power for onboard vessel interiors.
- 12,000 BTU capacity suits medium spaces.
- 230V input matches listed installations.
- Boat A/C unit serves cabin areas.
- FCF Platinum identifies the product series.
- Cooling capacity guides equipment selection.
$1,099.15
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Mid-size sailboat salons, catamaran bridgedeck cabins, and forward master berths need a unit sized for the space without the footprint of a larger salon system. The Webasto FCF Platinum 12,000 230V supplies 12,000 BTU/h of cooling and 12,000 BTU/h of reverse-cycle heating. This self-contained direct-expansion marine AC is intended for global power-network applications on boats roughly 28 to 36 feet long.
Who This Unit Is Not Ideal For
This version is not a match for boats limited to 115V power. It may also be undersized for large open salons or oversized for very small berths. A final load calculation remains important where cabin glass, tropical sun exposure, or multiple occupants increase cooling demand.
Warranty and Product Summary
The supplied data does not list a factory warranty for this variant. Manufactured by Webasto Marine in Germany, this 230V FCF Platinum 12,000 combines reverse-cycle heating, digital control, and compact self-contained marine AC construction.
Product Specifications
Product Specifications
| Brand | Webasto Marine |
|---|---|
| Full Model SKU/Code | FCF Platinum 12000 (230V Variant) |
| Country of Origin | Germany |
| AC System Type | Self-Contained Direct-Expansion (DX) Marine AC |
| Cooling Capacity | 12,000 BTU/h (3.5 kW) |
| Heating Capacity | 12,000 BTU/h (Reverse Cycle Heat Pump Mode) |
| Refrigerant Type | R-410A Pre-Charged Eco-Friendly Gas |
| Compressor Technology | High-Efficiency Hermetic Rotary Compressor |
| Operating Voltage / Frequency | 230 Volts AC / 50 or 60 Hz Single Phase Platform |
| Full Load Amps / Running Current | Cooling Duty: 4.2 Amps / Heating Duty: 4.8 Amps at 230V Input Cycle |
| Locked Rotor Amps / Starting Current | 21.0 Amps LRA Base Threshold |
| Recommended Circuit Breaker Rating | 15 Amps Heavy-Duty Marine Breaker |
| Required Sea Water Flow Rate | 200 GPH / 12.6 Liters per minute minimum loop |
| Sea Water Inlet/Outlet Size | 5/8" (16mm) Outer Diameter Hose Barb Connections |
| Duct Display / Air Discharge Size | 5.0" (127mm) High-Velocity Air Discharge Collar |
| Condenser Coil Material | Corrosion-Resistant Cupronickel (CuNi 90/10) Coaxial Heat Exchanger Tube |
| Control Interface Connectivity | Digital Display Control Unit and Wireless Remote Controller Control Subsystem |
| Dimensions (L x W x H) | 45.0 cm x 30.5 cm x 31.0 cm / 17.7" x 12.0" x 12.2" |
| Dry Weight | 24.0 kg / 52.9 lbs (Equipped with an extra-deep structural composite drain pan) |
| Application | Mid-size sailboat salons, catamaran bridgedeck cabins, forward master berths, and motor cruiser staterooms navigating global power networks (28-36 ft boat lengths) |
