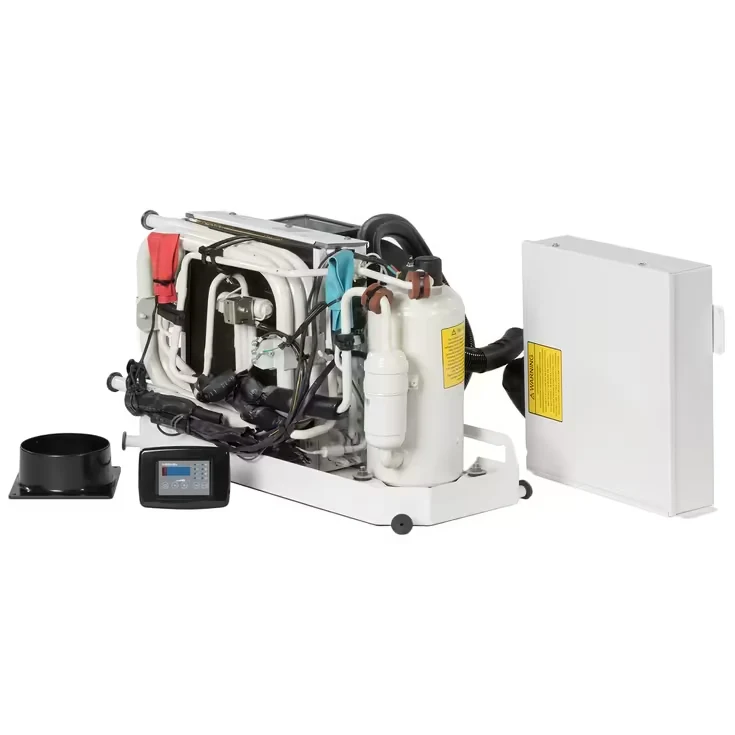

Webasto FCF – Platinum 16,000 BTU Marine Air Conditioner 115V

Webasto FCF Platinum delivers 16,000 BTU marine air conditioning through 115V power for onboard vessel climate systems at sea.

16,000 BTU output supports medium spaces.
115V supply suits compatible installations.
FCF Platinum identifies the product series.
Marine air conditioner serves vessel interiors.
Electrical input guides system compatibility.

$1,193.40

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Air Conditioners Brand: Webasto SKU: 5011400A

Free standard shipping to eligible destinationsSecure checkout

Refitting a 115V vessel can be easier when one self-contained unit provides both cooling and heating. The Webasto FCF Platinum 16,000 delivers 16,000 BTU/h in each operating mode, with a listed cooling capacity of 4.69 kW. Its reverse-cycle controls, 453 CFM airflow, and application guidance for cabins up to 800 cubic feet make it suitable for mid-to-large cabin or multi-room refit projects.

Who This Unit Is Not Ideal For

This model is not suitable for 230V-only vessels or spaces that do not require 16,000 BTU/h capacity. It may also be unsuitable where the boat cannot support the listed heating current or 30 A breaker. Final sizing should reflect the actual cabin layout and thermal load.

Warranty and Product Summary

The Webasto FCF Platinum includes a 2-year factory warranty. Manufactured in the USA and Germany, it combines 115V cooling, reverse-cycle heating, 453 CFM airflow, and refit-oriented marine construction.

Product Specifications

Brand	Webasto
Exact Model Code / SKU	FCF Platinum 16,000 (5011399A)
Country of Origin	USA / Germany
System Architecture	Self-Contained Marine A/C System
Cooling Capacity - BTU/h	16,000 BTU/h
Cooling Capacity - kW/Watts	4.69 kW
Heating Capacity - BTU/h	16,000 BTU/h
Reverse Cycle Heating Function	Yes
Electrical Voltage	115V
Alternating Current Frequency	60 Hz
Electrical Phase	Single Phase
Full Load Amps - FLA Cooling	11.5 A
Full Load Amps - FLA Heating	12.8 A
Locked Rotor Amps - LRA	52 A
Max Circuit Breaker Size	30 A
Refrigerant Type	R-410A
Compressor Type	Hermetic Rotary
Seawater Water Flow Rate	5.0 GPM (300 GPH)
Seawater Inlet Pipe Size	5/8 inch (16 mm)
Seawater Outlet Pipe Size	5/8 inch (16 mm)
Evaporator Airflow Capacity	453 CFM
Duct Discharge Connection Diameter	6 inches (152 mm)
Condensate Drain Connection Size	1/2 inch (12.7 mm)
Physical Dimensions - Unit	13.6 x 15.0 x 14.8 inches (345 x 381 x 376 mm)
Net Weight	66.1 lbs (30.0 kg)
Chassis & Condenser Material	Stainless Steel Pan & Marine-Grade Baked Enamel Chassis, Cupronickel Condenser Coil
Standard Factory Warranty	2 Years
Application & Sizing Guidance	High-efficiency premium refit system with reverse-cycle thermal controls, optimal for mid-to-large cabins or multi-room applications up to 800 cu.ft, min generator 4.0 kW.
