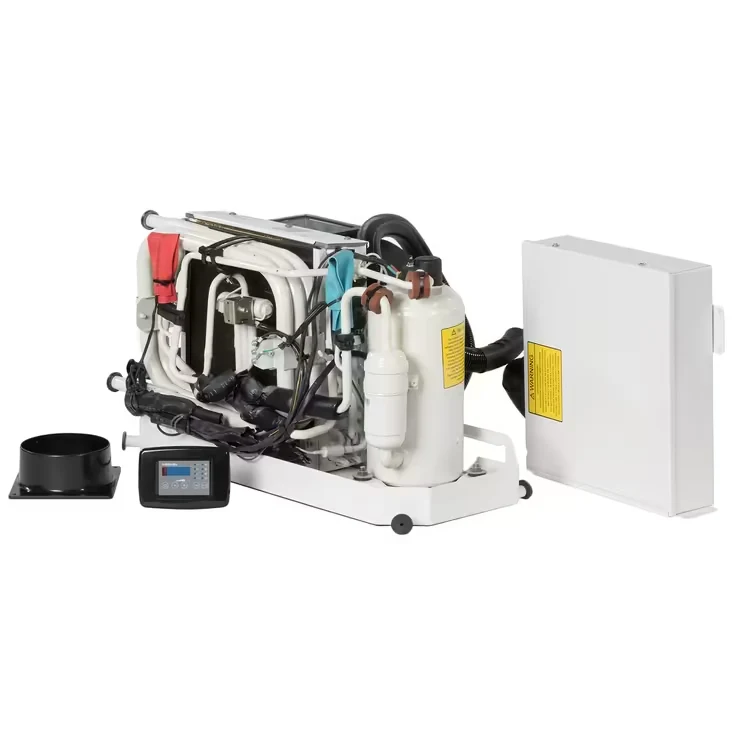

Webasto FCF Platinum 16,000 – BTU Marine Air Conditioner – 230V

At 16,000 BTU, Webasto FCF Platinum uses 230V power for marine air conditioning across medium-sized vessel interior spaces.

16,000 BTU output suits medium cabins.
230V supply guides electrical compatibility.
FCF Platinum identifies the product series.
Marine unit supports onboard climate control.
Capacity helps match cabin requirements.

$1,180.14

Availability In stock and available to order

Buy Now

Bulk order support Request for Quotation

Compare Ask a question

Category: Marine Air Conditioners Brand: Webasto SKU: 5011401A

Free standard shipping to eligible destinationsSecure checkout

For larger cabins, adjoining sleeping areas, or a mid-size salon, cooling capacity alone is not enough; electrical compatibility and seawater flow matter just as much. The Webasto FCF Platinum 16,000 is a self-contained 230V marine air conditioner with 16,000 BTU/h of cooling and 16,000 BTU/h of reverse-cycle heating. The supplied guidance places this system in mid-to-large cabins or multi-room layouts up to 800 cubic feet.

Who This Unit Is Not Ideal For

This model is not suitable for 115V-only boats, compact cabins with modest cooling loads, or installations unable to provide 300 GPH seawater flow. Spaces beyond the supplied 800-cubic-foot guidance should be professionally sized for actual insulation, glazing, ventilation, and solar gain.

Warranty and Product Summary

Manufactured by Webasto in Germany, the FCF Platinum 16,000 includes a 2-year factory warranty. It offers 230V cooling and reverse-cycle heating for compatible mid-to-large marine cabins and multi-room configurations.

Product Specifications

Brand	Webasto
Exact Model Code / SKU	FCF Platinum 16,000 (230V Variant)
Country of Origin	Germany
System Architecture	Self-Contained Marine A/C System
Cooling Capacity - BTU/h	16,000 BTU/h
Cooling Capacity - kW/Watts	4.69 kW
Heating Capacity - BTU/h	16,000 BTU/h
Reverse Cycle Heating Function	Yes
Electrical Voltage	230V
Alternating Current Frequency	50/60 Hz
Electrical Phase	Single Phase
Full Load Amps - FLA Cooling	5.8 A
Full Load Amps - FLA Heating	6.4 A
Locked Rotor Amps - LRA	26 A
Max Circuit Breaker Size	20 A
Refrigerant Type	R-410A
Compressor Type	Hermetic Rotary
Seawater Water Flow Rate	5.0 GPM (300 GPH)
Seawater Inlet Pipe Size	5/8 inch (16 mm)
Seawater Outlet Pipe Size	5/8 inch (16 mm)
Evaporator Airflow Capacity	453 CFM
Duct Discharge Connection Diameter	6 inches (152 mm)
Condensate Drain Connection Size	1/2 inch (12.7 mm)
Physical Dimensions - Unit	13.6 x 15.0 x 14.8 inches (345 x 381 x 376 mm)
Net Weight	66.1 lbs (30.0 kg)
Chassis & Condenser Material	Stainless Steel Pan & Marine-Grade Baked Enamel Chassis, Cupronickel Condenser Coil
Standard Factory Warranty	2 Years
Application & Sizing Guidance	High-capacity premium 230V self-contained system with reverse-cycle controls, optimal for mid-to-large cabins or multi-room configurations up to 800 cu.ft, min generator 4.0 kW.
