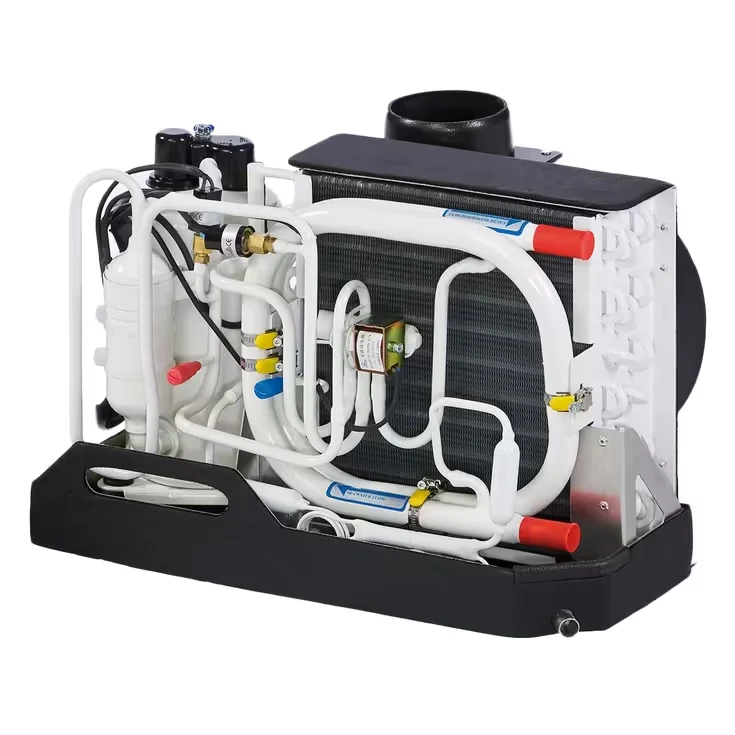

Webasto S13 – BlueCool S Series 115V 13,000 BTU’s
Webasto S13 specifies 13,000 BTU capacity with 115V power within the BlueCool S Series for marine climate installations.
- 13,000 BTU capacity supports medium spaces.
- 115V supply matches listed systems.
- BlueCool S Series identifies the platform.
- Electrical input guides installation planning.
- Capacity supports onboard climate control.
$1,201.20
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Many medium staterooms and small salons need more capacity than compact cabin systems provide. The Webasto BlueCool S13 115V delivers 13,000 BTU/h of cooling and 13,000 BTU/h of reverse-cycle heating from a 115V single-phase system. Its 3.81 kW cooling rating and supplied guidance for spaces up to 550 cubic feet make it suitable for compatible medium marine interiors.
Who This Unit Is Not Ideal For
This system is not appropriate for boats with 230V-only power or spaces requiring substantially more than 13,000 BTU/h. It may also be excessive for very small cabins. Final sizing should account for insulation, glazing, solar exposure, ventilation, and local climate.
Warranty and Product Summary
The Webasto BlueCool S13 includes a 2-year factory warranty. Manufactured by Webasto in Germany, it offers 115V cooling and reverse-cycle heating with 341 CFM airflow for compatible medium-sized boat interiors.
Product Specifications
Product Specifications
| Brand | Webasto |
|---|---|
| Exact Model Code / SKU | BlueCool S13 (115V Variant) |
| Country of Origin | Germany |
| System Architecture | Self-Contained Marine A/C System |
| Cooling Capacity - BTU/h | 13,000 BTU/h |
| Cooling Capacity - kW/Watts | 3.81 kW |
| Heating Capacity - BTU/h | 13,000 BTU/h |
| Reverse Cycle Heating Function | Yes |
| Electrical Voltage | 115V |
| Alternating Current Frequency | 60 Hz |
| Electrical Phase | Single Phase |
| Full Load Amps - FLA Cooling | 8.8 A |
| Full Load Amps - FLA Heating | 10.2 A |
| Locked Rotor Amps - LRA | 41 A |
| Max Circuit Breaker Size | 25 A |
| Refrigerant Type | R-410A |
| Compressor Type | Hermetic Rotary |
| Seawater Water Flow Rate | 4.16 GPM (250 GPH) |
| Seawater Inlet Pipe Size | 5/8 inch (16 mm) |
| Seawater Outlet Pipe Size | 5/8 inch (16 mm) |
| Evaporator Airflow Capacity | 341 CFM (580 m³/h) |
| Duct Discharge Connection Diameter | 5 inches (127 mm) |
| Condensate Drain Connection Size | 1/2 inch (12.7 mm) |
| Physical Dimensions - Unit | 12.2 x 15.7 x 13.4 inches (310 x 400 x 340 mm) |
| Net Weight | 57.3 lbs (26.0 kg) |
| Chassis & Condenser Material | Extra-Deep Composite Condensate Tray & Cupronickel Condenser Coil |
| Standard Factory Warranty | 2 Years |
| Application & Sizing Guidance | Upgraded thermal capacity unit designed to maximize environmental comfort in medium staterooms or small salons up to 550 cu.ft, min generator 3.5 kW. |
