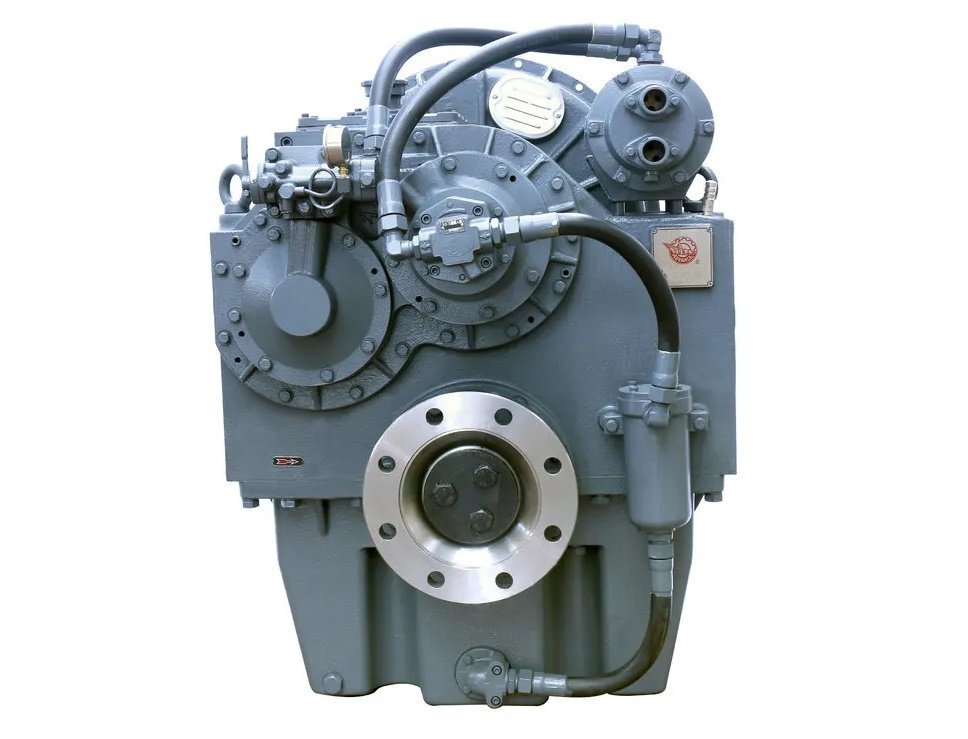

Advance HCD600A Marine Transmission Component – 4.43:1 Reduction
The Advance HCD600A-443 is a marine drivetrain transmission component with a 4.43:1 reduction ratio and hydraulic multi-disc clutch.
- Maximum input power: 1,365 HP (1,018 kW) at 2,100 RPM
- Maximum input speed: 2,100 RPM
- SAE 00, SAE 0, and SAE 1 bell-housing interfaces
- Maximum propeller thrust: 20,232 lbf (90,000 N)
- Dry weight: 3,417 lb
This listing is for a gearbox component only. It is not a boat, complete vehicle, engine, or passenger-transport service.
$12,967.08
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Advance HCD600A-443 is a marine transmission component for compatible drivetrain installations. This product listing covers the gearbox only; it does not include a boat, complete vehicle, engine, or passenger-transport service.
Product Specifications
Advance HCD600A Deep Case Marine Gearbox - 4.43:1 Ratio
| Brand | Advance |
|---|---|
| Model / SKU | HCD600A-443 |
| Country of Origin | China |
| US Support / Warranty | 1-Year Limited Warranty |
| Reduction Ratio | 4.43:1 |
| Transmission Capacity | 0.65 HP / RPM (0.48 kW / RPM) |
| Max Input Power | 1,365 HP (1018 kW) @ 2100 RPM |
| Max Input Speed | 2100 RPM |
| Bell Housing Standard | SAE 00 / SAE 0 / SAE 1 |
| Clutch Type | Hydraulic Multi-disc |
| Max Propeller Thrust | 20,232 LBF (90,000 N) |
| Center Distance | 16.34" (415 mm) |
| Oil Capacity | 10.6 Gallons (40 Liters) |
| Dry Weight | 3,417 lbs (1550 kg) |
| Dimensions (LxWxH) | 29.3" x 43.1" x 50.0" |
| Classification / Certs | CCS / ZC Approved |
| Primary Application | Marine Repower & High-Torque Hulls |
