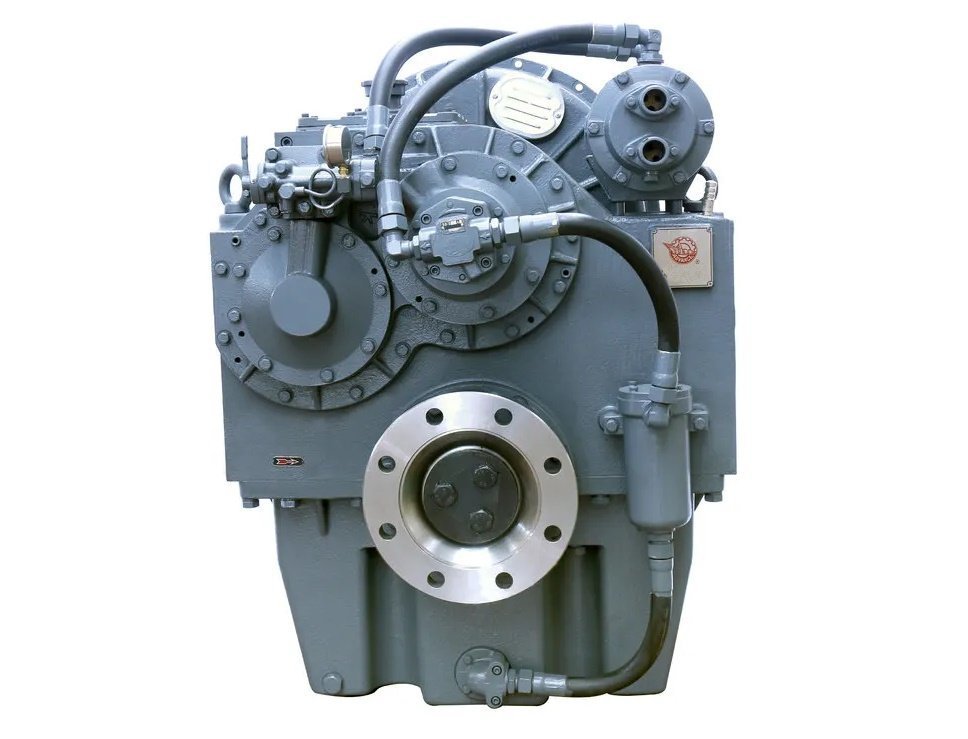

Advance HCD600A Heavy Duty Marine Gearbox 5.71:1 Reduction

Configure a displacement-hull drivetrain with the Advance HCD600A Heavy Duty Marine Gearbox 5.71:1 Reduction. This deep-case marine gearbox is specified for displacement fishing hulls and industrial barges, with a 5.71:1 reduction ratio, maximum input power of 1,210 HP (903 kW) at 2,100 RPM, and a maximum input speed of 2,100 RPM.

Model HCD600A-571 uses a hydraulic multi-disc clutch and provides a listed transmission capacity of 0.58 HP/RPM (0.43 kW/RPM). Its supplied drivetrain configuration includes SAE 00 and SAE 0 bell housing standards, 20,232 lbf (90,000 N) maximum propeller thrust, a 16.34-inch (415 mm) center distance, and a 10.6-gallon (40-liter) oil capacity.

Fitment and Propulsion Use

The Advance HCD600A-571 is specified for displacement fishing hulls and industrial barges. It supports propulsion systems requiring a 5.71:1 reduction ratio, subject to matching the engine’s rated torque, operating RPM, SAE 00 or SAE 0 bell housing interface, propeller-thrust requirement, and complete shaft arrangement. Confirm fitment using the engine model, serial number, rated torque, operating RPM, reduction ratio, and manufacturer drivetrain documentation before ordering.

Before Ordering the Advance HCD600A

Verify that Advance model HCD600A-571 is correct for your displacement fishing hull or industrial barge propulsion system. Confirm the 5.71:1 reduction ratio, 0.58 HP/RPM (0.43 kW/RPM) transmission capacity, 1,210 HP (903 kW) maximum input power at 2,100 RPM, 2,100 RPM maximum input speed, hydraulic multi-disc clutch, SAE 00/SAE 0 bell housing options, 20,232 lbf (90,000 N) maximum propeller thrust, 16.34-inch center distance, 10.6-gallon oil capacity, 29.3 x 47.8 x 50.0 inch dimensions, 3,417 lb dry weight, CCS/ZC approval, and 1-year limited warranty. Confirm compatibility with your engine manufacturer’s documentation before purchase.
