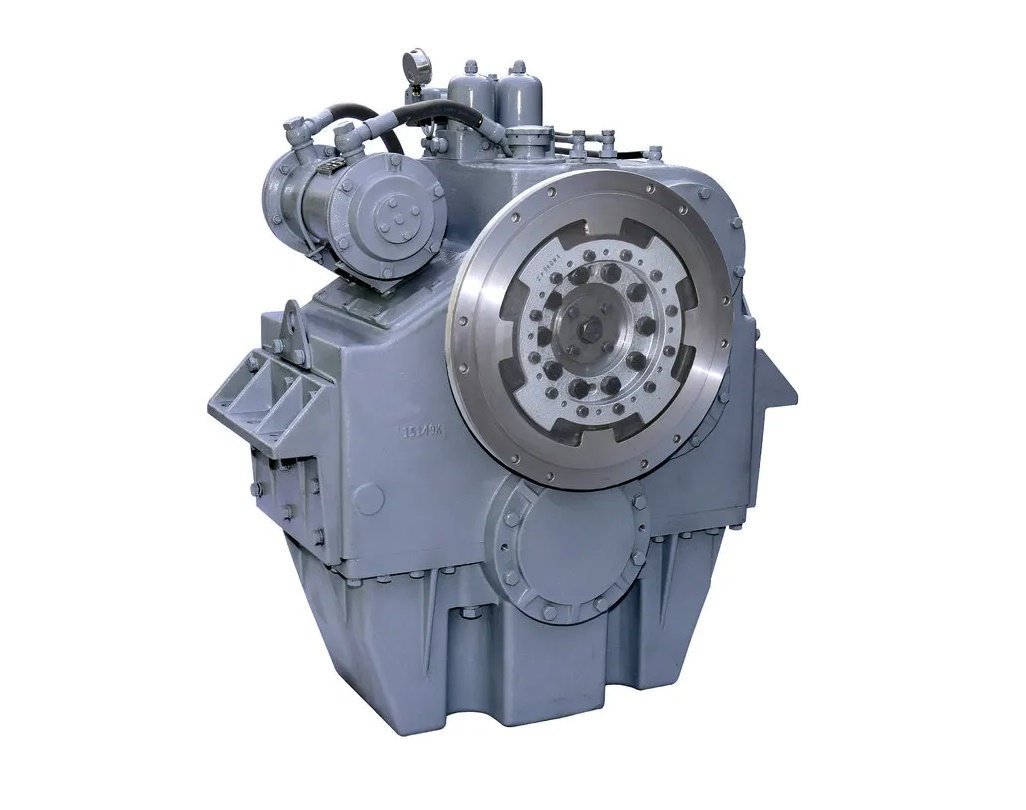

Advance HCT400A Marine Transmission Component – 8.40:1 Reduction
The Advance HCT400A-840 is a marine drivetrain transmission component with an 8.40:1 two-stage reduction ratio.
- Maximum input power: 586 HP (437 kW) at 1,800 RPM
- Maximum input speed: 2,100 RPM
- SAE 0 and SAE 1 bell-housing interfaces
- Maximum propeller thrust: 18,434 lbf (82,000 N)
- Dry weight: 3,197 lb
This listing is for a gearbox component only. It is not a boat, complete vehicle, engine, or passenger-transport service.
$11,297.44
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Advance HCT400A-840 is a two-stage marine transmission component for compatible drivetrain installations. This product listing covers the gearbox only; it does not include a boat, complete vehicle, engine, or passenger-transport service.
Product Specifications
Advance HCT400A Two-Stage Marine Gearbox - 8.40:1 Ratio
| Brand | Advance |
|---|---|
| Model / SKU | HCT400A-840 |
| Country of Origin | China |
| US Support / Warranty | 1-Year Limited Warranty |
| Reduction Ratio | 8.40:1 |
| Transmission Capacity | 0.326 HP / RPM (0.243 kW / RPM) |
| Max Input Power | 586 HP (437 kW) @ 1800 RPM |
| Max Input Speed | 2100 RPM |
| Bell Housing Standard | SAE 0 / SAE 1 |
| Clutch Type | Hydraulic (Two-Stage Reducer) |
| Max Propeller Thrust | 18,434 LBF (82,000 N) |
| Center Distance | 14.76" (375 mm) |
| Oil Capacity | 7.9 Gallons (30 Liters) |
| Dry Weight | 3,197 lbs (1,450 kg) |
| Dimensions (LxWxH) | 30.9" x 39.1" x 44.5" |
| Classification / Certs | CCS / ZC Approved |
| Primary Application | Heavy Displacement Trawlers & River Push-Boats |
