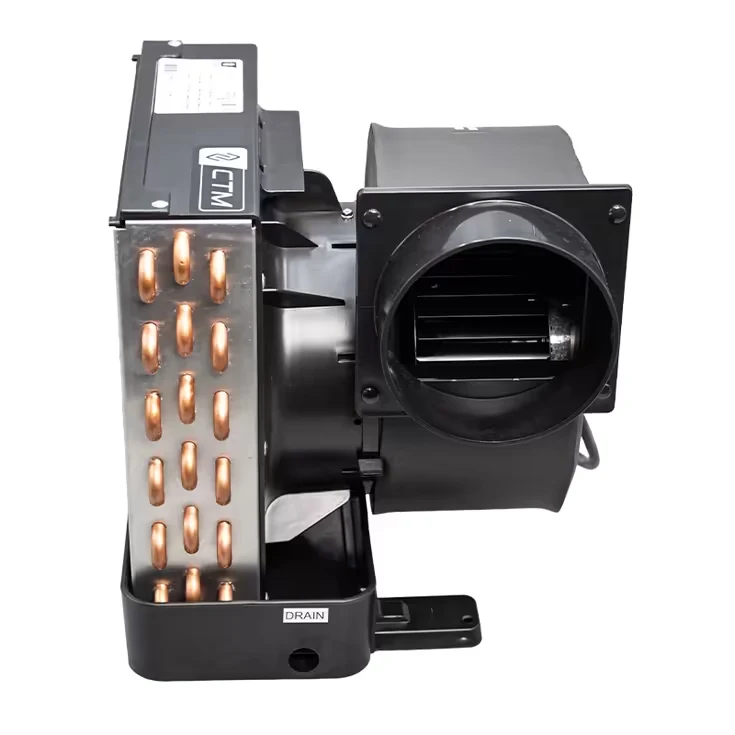

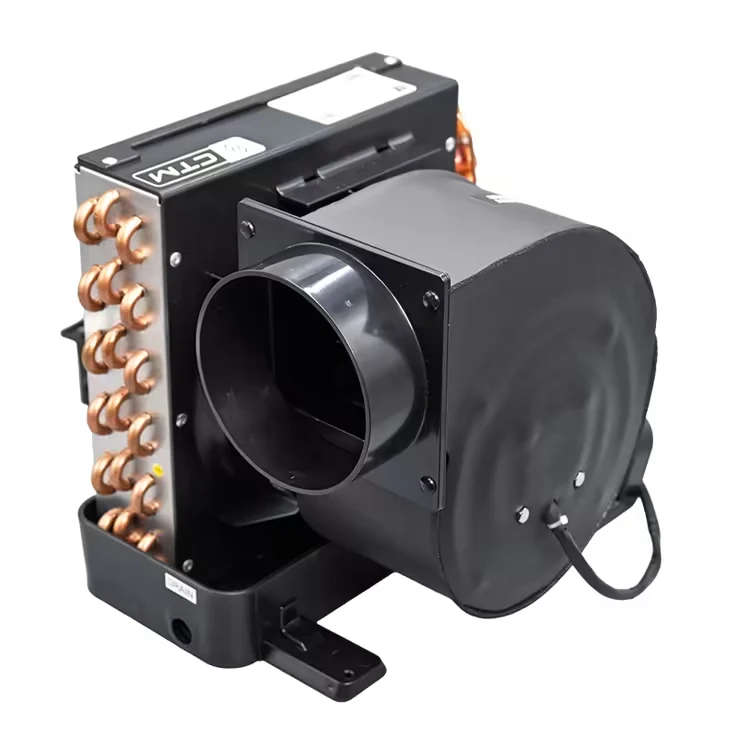

CTM EV-16H – 16,000 BTU Evaporator – Marine Split A/C Unit – 230V – 50/60HZ

Standard 230V power gets the CTM EV-16H evaporator paired with a 16,000 BTU condenser — a direct drop-in replacement for the Dometic TVE16 230V evaporator, moving 458 CFM through mid-sized cabins.

Why Choose the CTM EV-16H

If you’re replacing a Dometic TVE16, this evaporator matches its dimensions and connections closely enough that installation generally shouldn’t require significant modification — worth double-checking your specific cabin space against the EV-16H’s dimensions before ordering regardless.

Current draw on this evaporator is a fraction of what the matching CX-16HN condenser pulls — 0.82A versus 5.1A — since only the blower motor draws power here, not the compressor.

What to Know Before Installing

• Requires a matching condenser purchased separately — this listing is the evaporator only
• 6″ blower duct connects to your cabin’s ductwork
• If replacing a Cruisair TV16 unit, this evaporator will need pairing with an R410A-compatible condenser since TV16 systems use R22/R417A
• The reusable air filter should be cleaned periodically as part of routine maintenance
