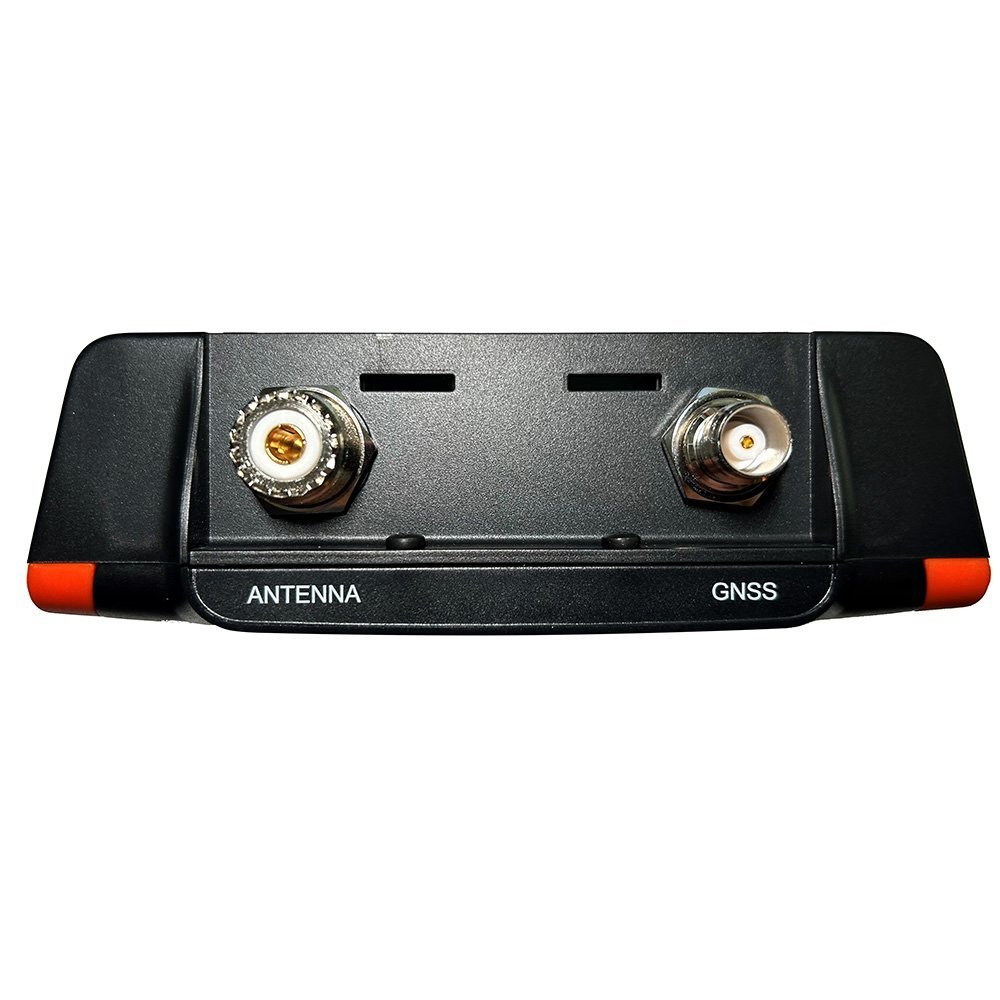

em-trak B924 Class B AIS Transceiver w/WiFi, Bluetooth & VHF Antenna Splitter – 2W CSTDMA
Sharing VHF antennas while streaming navigation data wirelessly, an em-trak B924 wireless transceiver delivers 2W CSTDMA tracking via an internal GPS/GLONASS receiver, drawing 1.7W average power across NMEA 2000 and dual NMEA 0183 at 0.95 lbs.
- Integrated splitter shares masthead VHF antennas
- Built-in Wi-Fi and Bluetooth stream target data
- 2W CSTDMA output alerts local marine traffic
- Draws 1.7W average preserving house batteries
- IP67 submersible casing prevents moisture damage
$744.04
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
Step up from standard Class B AIS transmission with the SI-TEX Hybrid Class B+ 5W AIS Transceiver. Its 5W SOTDMA transmitter, built-in 50-channel GPS receiver, and Wi-Fi connectivity give boaters a practical way to share their vessel position while viewing AIS traffic on a compatible MFD, PC, tablet, or smartphone. Need stronger AIS output without adding a dedicated display at the helm? This SI-TEX transceiver supports NMEA 2000, dual NMEA 0183 ports, USB, and 12V/24V DC installations in a compact protected enclosure.
Integration
The transceiver requires a suitable dedicated AIS/VHF antenna or approved splitter, properly programmed MMSI and vessel static data, and a compatible MFD, PC, or mobile application to view AIS targets. It is not a VHF voice radio, radar, chartplotter, emergency beacon, or collision-avoidance guarantee.
SOTDMA Class B+ equipment typically provides 5W transmit power and more predictable access to AIS time slots than standard 2W CSTDMA Class B systems. AIS target data still depends on antenna placement, VHF coverage, and other vessels transmitting accurate information. Not every vessel or navigational hazard is equipped with AIS.
Before Ordering
Confirm Class B+ AIS suitability, MMSI registration, AIS antenna or splitter requirements, GPS antenna placement, NMEA/USB/Wi-Fi display compatibility, 12V/24V power availability, and required programming support before ordering.
Product Specifications
em-trak B924 Class B AIS Transceiver w/WiFi, Bluetooth & VHF Antenna Splitter - 2W CSTDMA
| Brand | em-trak |
|---|---|
| Full Model SKU / Code | 420-0006 |
| Device Type | 2W CSTDMA Class B AIS Transceiver with Wi-Fi, Bluetooth, and Built-In VHF Antenna Splitter |
| Frequency Range | 156.025 MHz - 162.025 MHz (Marine VHF AIS Bands) |
| Channels | Dual-Channel AIS Transceiver + VHF Antenna Sharing |
| Output Power | 2 Watts CSTDMA |
| DSC (Digital Selective Calling) | N/A |
| GPS Receiver / GNSS | High-Performance Internal GPS / GLONASS Receiver |
| NMEA Network Compatibility | NMEA 2000, Dual NMEA 0183 Ports, USB |
| Wireless Connectivity | Built-in Wi-Fi and Bluetooth |
| Display Type & Size | Multi-Color Status Indicator LEDs |
| Waterproof Rating | IP67 Submersible Marine Enclosure |
| Operating Voltage Range | 9.6 to 31.2 V DC |
| Power Consumption | Average 1.7 W |
| Operating Temperature | -25°C to 55°C (-13°F to 131°F) |
| Dimensions (L x W x H) | 150 x 115 x 45 mm (5.9 x 4.5 x 1.8 in) |
| Dry Weight | 0.43 kg (0.95 lbs) |
| Mounting Options | Integrated FLEXI-MOUNT Bracket / Bulkhead Mount |
