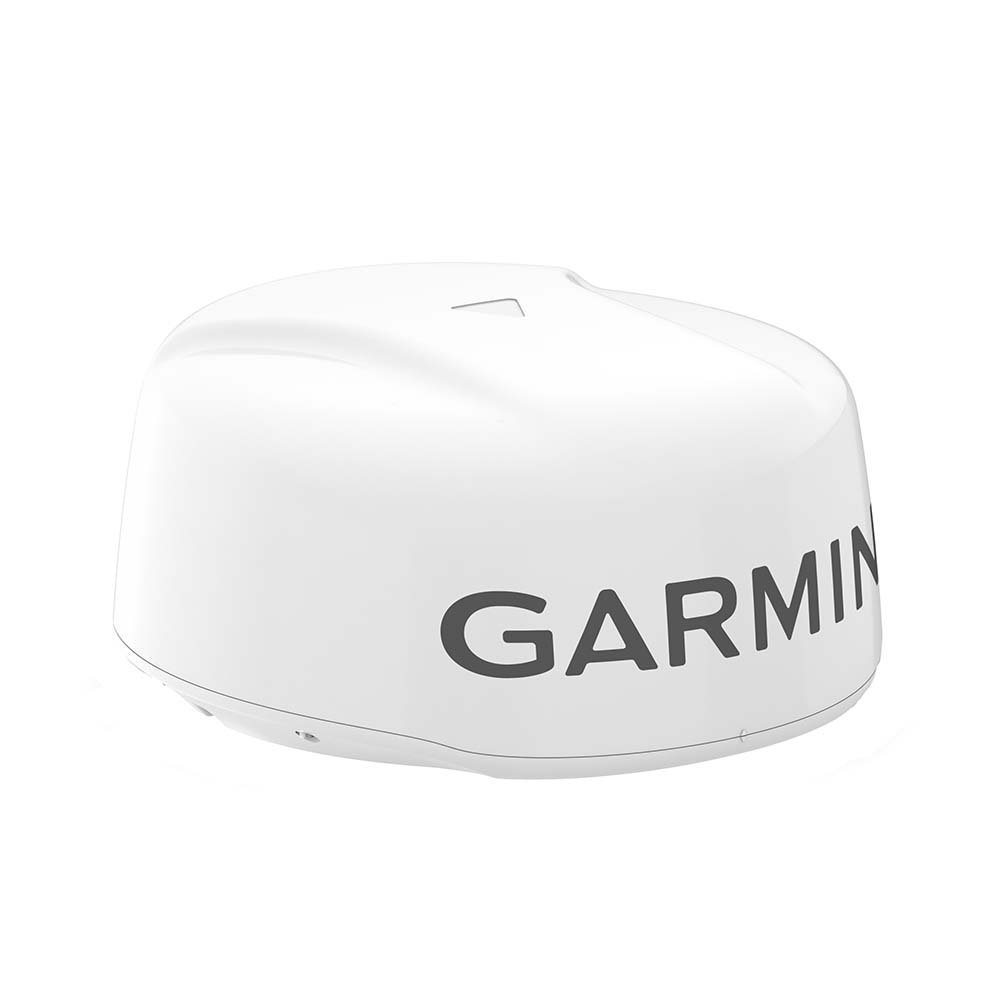

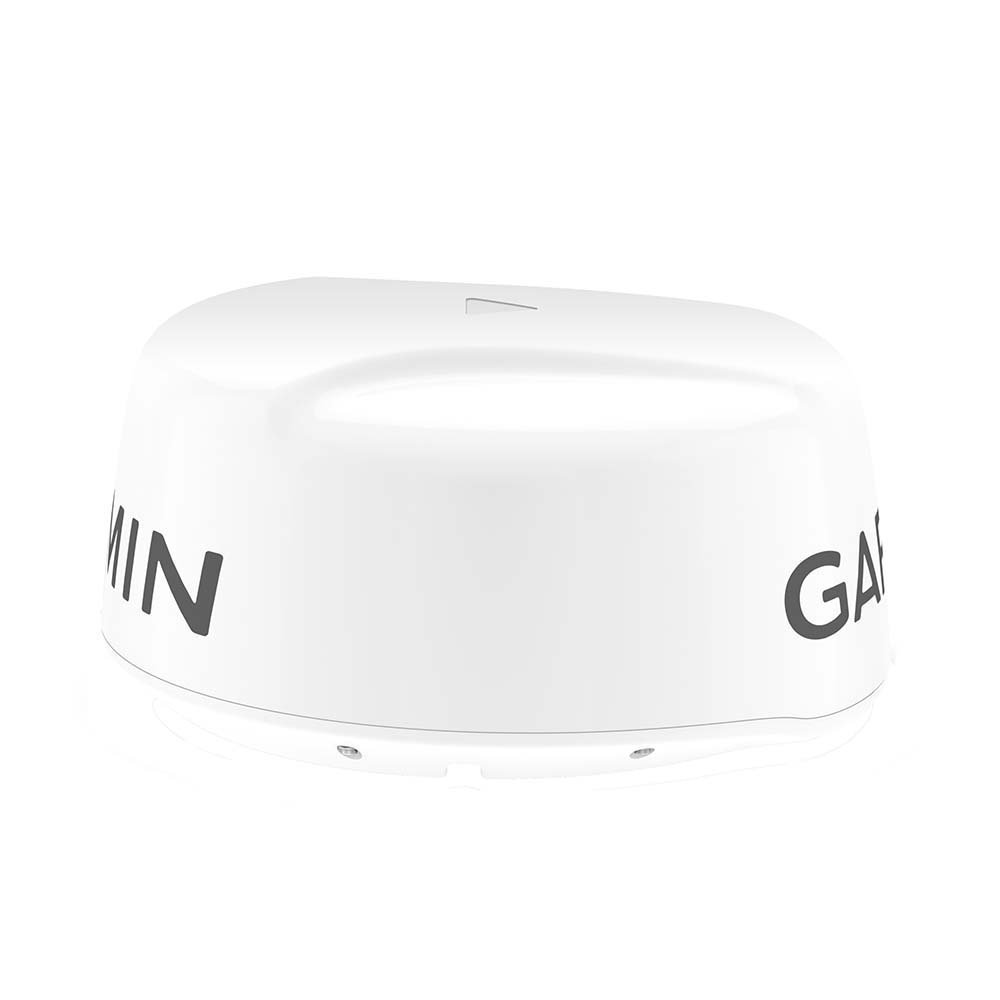

Garmin GMR Fantom 18x Dome Radar – White

Fit solid-state Doppler radar onto a space-conscious boat with the Garmin GMR Fantom 18x White Dome Radar. The 18-inch radome combines 50W pulse-compression output, a compact footprint, and rotation speeds up to 60 RPM for boaters who want radar support during early-morning launches, harbor approaches, coastal cruising, or reduced-visibility trips. Need moving-target awareness without an open-array installation? The Fantom 18x uses MotionScope Doppler, Bird Mode, MARPA support, and Garmin network connectivity for compatible chartplotter systems.

Integration

The Fantom 18x requires a compatible Garmin chartplotter or MFD for radar control and display. Garmin Marine Network or compatible BlueNet connections carry radar video, while NMEA 2000 can add position, heading, AIS, autopilot, and other vessel-sensor data.

MotionScope Doppler can help make moving radar returns easier to notice. MARPA and radar overlay need compatible heading and position sources, and the 48 NM instrumented range does not guarantee detection at that distance. Target size, scanner height, rain, sea state, clutter, installation, and user settings affect practical performance.

Before Ordering

Confirm compatible Garmin MFD support, Garmin Marine Network or BlueNet connectivity, 10V–32V DC power availability, mounting clearance, cable paths, and compatible heading/GPS sources for MARPA or radar overlay. Garmin lists the Fantom 18x with a 5.2° horizontal beam, 48 NM maximum range, up-to-60-RPM rotation, and IPX7 protection. [768][771]
