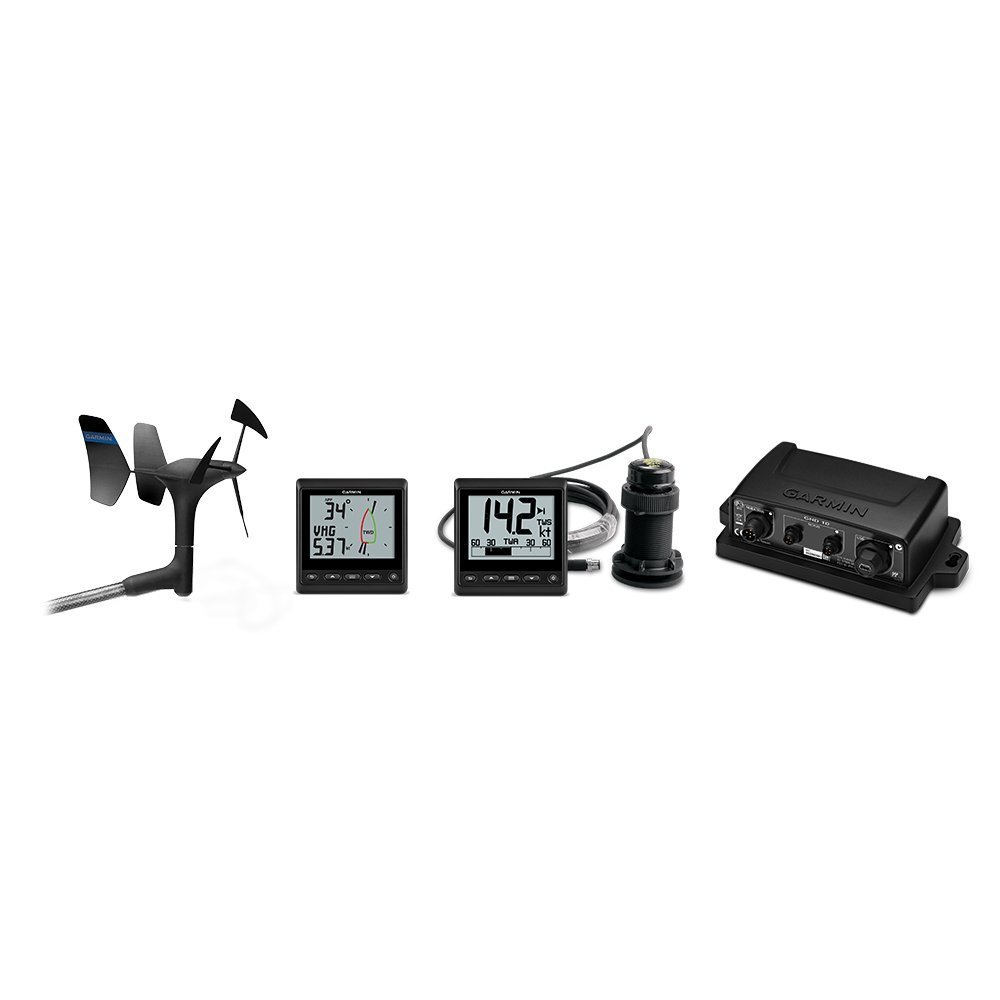

Garmin GNX Wired Sail Pack 52 Marine Instrument Kit
Garmin GNX Wired Sail Pack 52 groups wired marine instruments into a sailing package for connected onboard data monitoring.
- GNX identifies the Garmin instrument platform.
- Wired pack uses physical connections.
- Sail Pack 52 identifies configuration.
- Marine instruments present sailing data.
- Package groups listed system components.
$652.80
Availability
In stock and available to order
Bulk order support
Request for Quotation
Free standard shipping to eligible destinationsSecure checkout
The Garmin GNX Wired Sail Pack 52 is an all-in-one sailing instrument package for boats that want wind, depth, speed, temperature, heading, and battery data across dedicated displays. It includes the GNX 20, GMI 20, gWind wired masthead transducer, and DST810 smart through-hull sensor. The result is a complete NMEA 2000 sailing instrument system rather than a single gauge.
The GNX 20 provides low-power monochrome sailing data with customizable seven-color backlighting, while the GMI 20 adds a 4-inch color display for broader instrument pages. The 25m masthead cable gives useful reach on cruising yachts, and the DST810 supplies depth, speed, and temperature. IPX7 display protection and IPX6 wind-sensor protection suit exposed marine installation. This pack does not provide charts or a chartplotter; it is the instrument layer around a separate navigation system.
Who Is This For?
This wired sailing instrument pack suits bluewater cruisers, sailing sloops, and racing yachts from 24 to 50 feet. It is not ideal for buyers seeking charts or a standalone navigation display; the pack supplies instrument data and sensors, while a separate chartplotter handles mapping.
Warranty & Support
The supplied specifications do not state a warranty term for this pack. Confirm current Garmin warranty coverage and exclusions before purchase.
The GNX Wired Sail Pack 52 is the complete wind, depth, speed, and temperature option here, with both display types and the key sensors included. Its trade-off is installation complexity: the masthead cable, through-hull sensor, NMEA 2000 backbone, and displays all need to be planned together. Choose it for a full sailing instrument refit, not for a single replacement gauge.
Product Specifications
Product Specifications
| Brand | Garmin |
|---|---|
| Full Model SKU/Code | 010-01248-70 (Sail Pack 52 Wired) |
| Country of Origin | Taiwan |
| Gauge Type | Multi-Function Digital Instrument, Wind, & Depth Bundle Pack |
| Monitored Parameters | Apparent/True Wind Speed, Apparent/True Wind Angle, Water Depth, Boat Speed Through Water, Water Temperature, Heading, Tactical Sailing Metrics, Battery Voltage |
| Data Bus / Protocol Compatibility | Native NMEA 2000 Data Backbone & Nexus Protocol Bridge Network Linkages |
| Engine Brand Compatibility | Universal Accessory NMEA 2000 Monitoring Application |
| Display Technology & Backlighting | Optically Bonded Segmented and Dot-Matrix Monochrome LCD Display with Custom 7-Color LED Backlighting Matrix |
| Bezel/Housing Diameter | GNX 20: 110 x 115 mm / GMI 20: 110 x 115 mm Standard Square Housing Footprint |
| Mounting Method / Cutout Size | Dash Flush Surface Mount or Low-Profile Flat Mount / 90mm Screen Cutout Diameter |
| Operating Voltage | 12 Volts DC (Power Supplied directly via NMEA 2000 Network Drop Cable) |
| Current Draw / NMEA 2000 LEN | GNX 20 Display: 35 mA (No Backlight) to 100 mA (Full Brightness) / LEN: 2 (Per Display Unit Node) |
| Waterproof Rating | IPX7 Waterproof Protection Front Display Facing / IPX6 Exposed Masthead gWind Transducer |
| Lens Technology | Anti-Fogging Hardened Glass Bonded Window Panel |
| Material & Bezel Finish | UV-Stabilized High-Impact Composite Shell with Interchanging Matte Black and Clean Trim Bezel Profiles |
| Included Transducer Model / Mounting | gWind Wired Masthead Transducer & DST810 Smart Thru-Hull Sensor Assembly Pack |
| Transducer Material & Cable Length | Engineered Polymers / 82 ft (25 m) Masthead Wire Cable + NMEA 2000 Droppers |
| Alarm & Alert System | Visual Alert Banner Flash Panels, Customizable High/Low Wind Target Audio Signals, Shallow/Deep Water Distance Triggers |
| Dry Weight | 2.15 kg / 4.74 lbs (Aggregated Kit Mass of gWind Array, DST810 Pod, GNX 20, GMI 20, and Network Hardware Nodes) |
| Application | All-in-one turn-key wind, speed, and depth structural rigging package optimized for bluewater sailing cruisers, sloops, and tournament racing yachts (24-50 ft hulls) |
